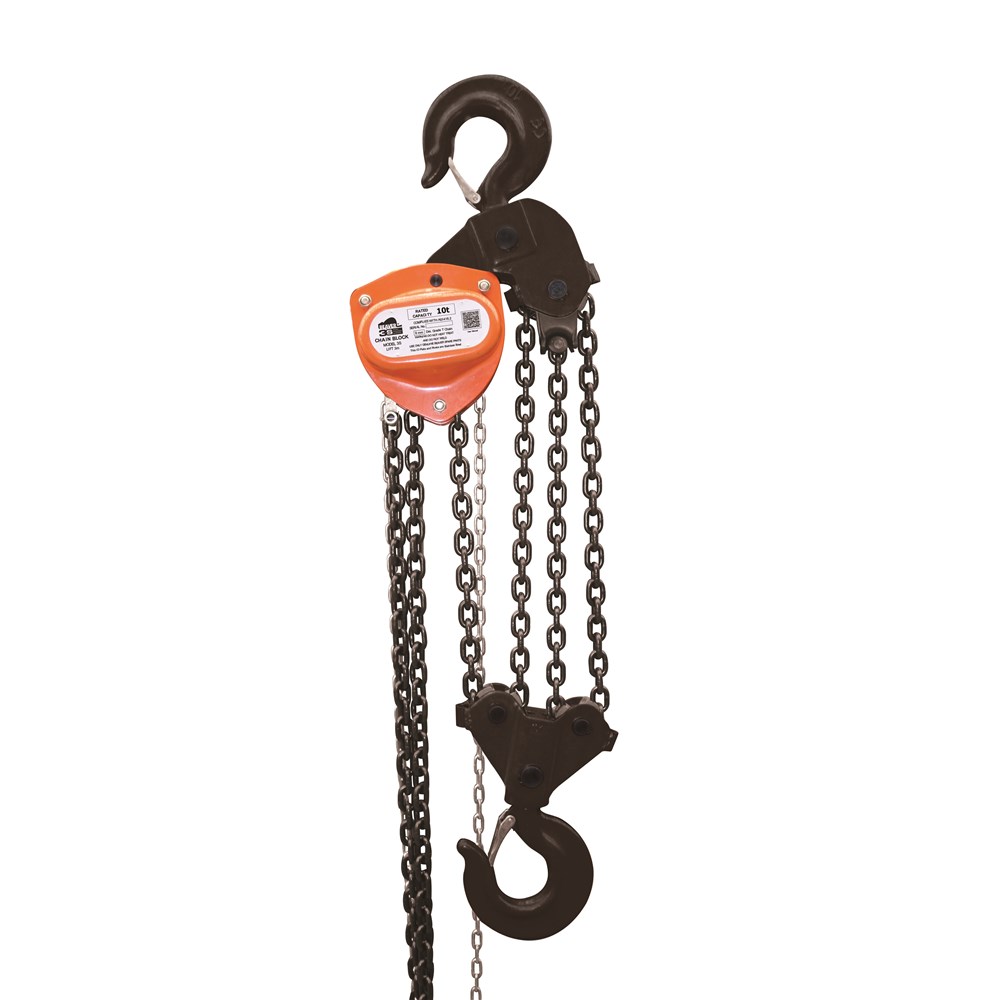

Beaver 3S Industrial Manual Chain Blocks With Overload Protection (3m Standard Lift) 10t
508603per Each
$1067.98 inc GSTTrade $961.18, save $106.80Trade accounts save 10%. Apply with your ABN
| A | 189mm |
| B | 463mm |
| C | 57mm |
| H | 765mm |
| Net Weight | 78.5kg |
| Colour Code | Orange |
| Standard Lift | 3m |
| Rated Capacity | 10t |
| Load Chain Diameter | 9mm x 30mm |
| No. Load Chain Falls | 4 |
| Effort on Lever to Lift Full Load | 380kg |
About this product
The Beaver 3S Industrial Manual Chain Block with Overload Protection is a hand-operated hoist for vertical lifts on monorails, jibs, fixed installations and maintenance work. This is the 10t size, the heavy end of the range, running four falls of 9mm x 30mm G80 calibrated load chain over a 3m standard lift. Four falls means more chain to pull, but it keeps the effort on the lever at 380kg to lift the full load. Net weight is 78.5kg, so plan your rigging and handling before it goes up.
Housing is cast steel with a gear case and reinforced side covers. Top and bottom hooks run ball bearings and safety catches, and there is a double pawl and double roller guide inside. ID plates and rivets are stainless steel to avoid sparking, and each block carries a serial number tied to its own test certificate. Orange colour coded. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Vertical lifts only, side loading can jam the chain.
Common questions
- how much effort to lift 10t with the beaver 3S chain block
- Around 380kg of effort on the lever to lift the full rated 10t load. It runs four falls of chain to get there.
- what standard does the beaver 3S chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated load chain is marked according to ISO 3077.
- can you side load a chain block horizontally
- No. These are for vertical lifts only. Side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 508103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 508203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 508303 | 3t | Yellow | 3m | 335kg | 2 | 8mm x 24mm |
| 508503 | 5t | Red | 3m | 363kg | 2 | 9mm x 30mm |
| 508603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 508103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 508203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 508303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 508503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 508603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
