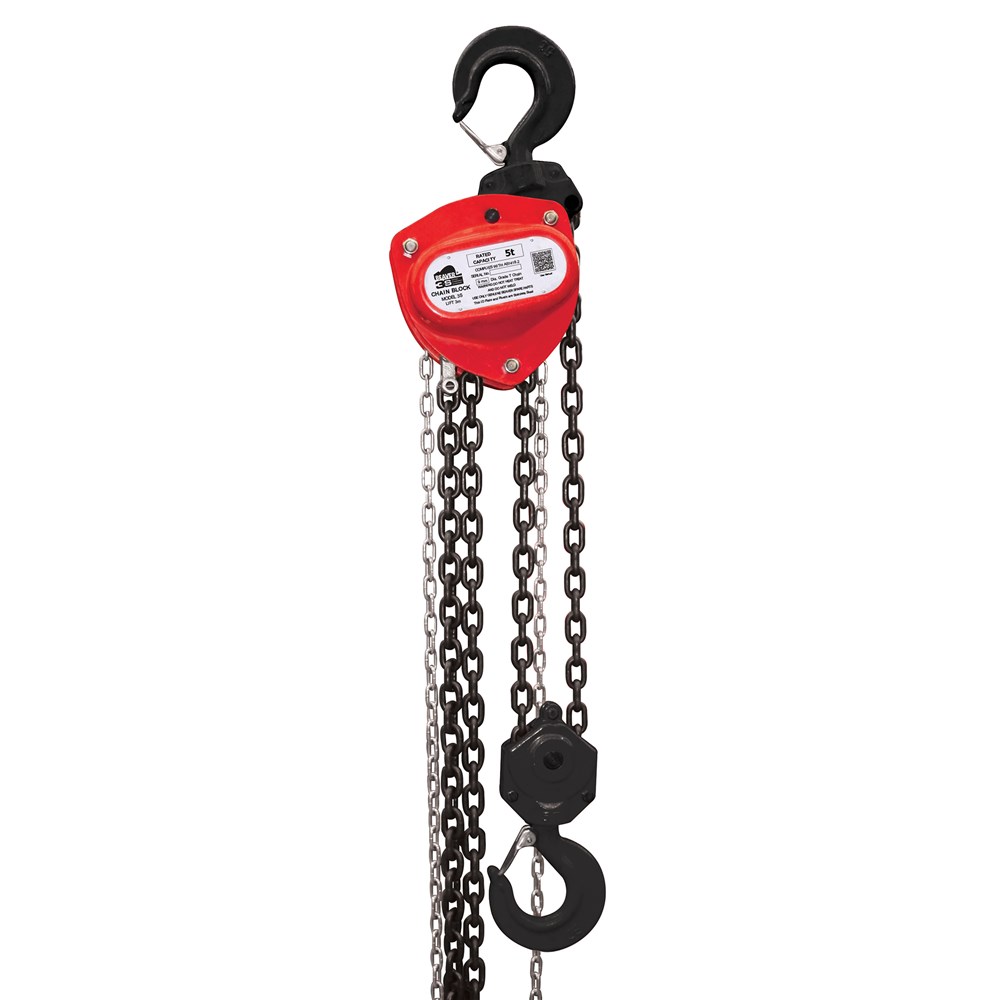

Beaver 3S Industrial Manual Chain Blocks with Overload Protection (6m Standard Lift) 5t
508506per Each
$654.52 Trade inc GST$727.24 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 189mm |
| B | 280mm |
| C | 46mm |
| H | 688mm |
| Net Weight | 54.5kg |
| Colour Code | Red |
| Standard Lift | 6m |
| Rated Capacity | 5t |
| Load Chain Diameter | 9mm x 30mm |
| No. Load Chain Falls | 2 |
| Effort on Lever to Lift Full Load | 363kg |
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 508106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 508206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 508306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 508506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 508606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 508106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 508206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 508306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 508506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 508606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
