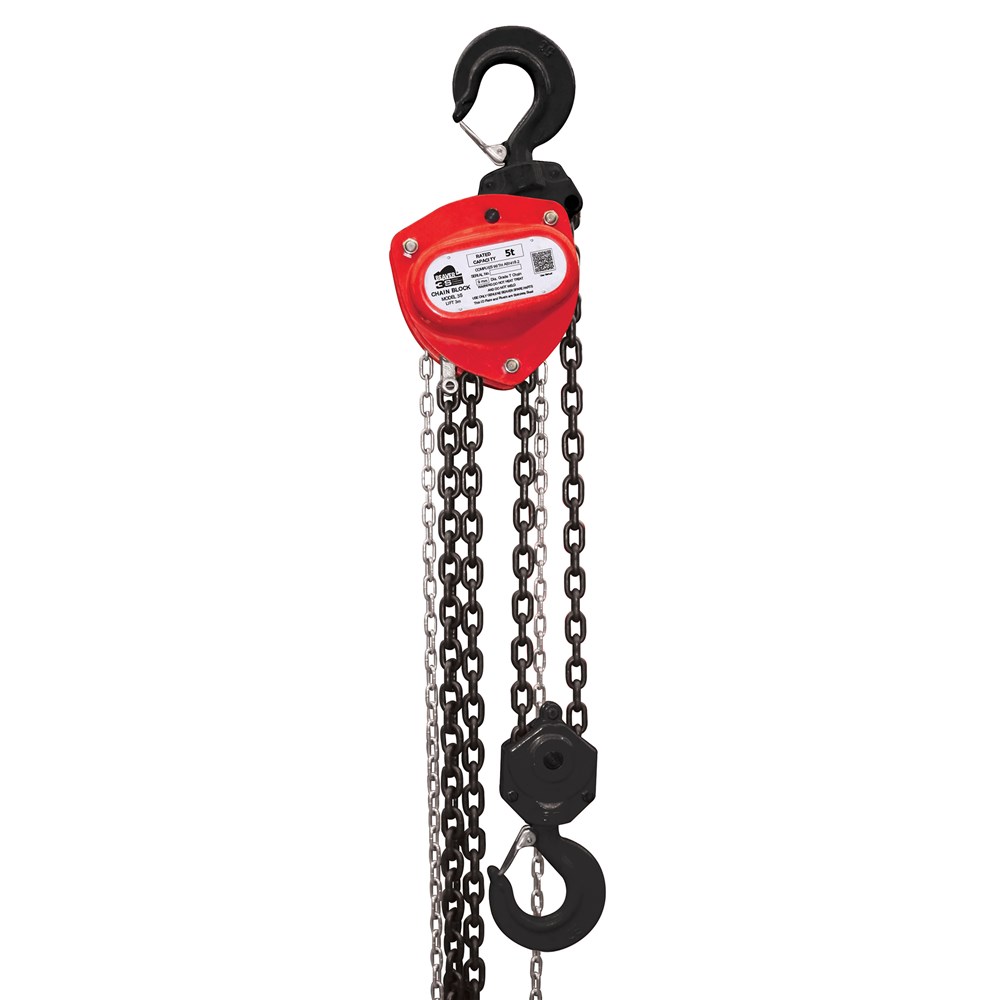

Beaver 3S Industrial Manual Chain Blocks With Overload Protection (3m Standard Lift) 5t
508503per Each
$582.98 inc GSTTrade $524.68, save $58.30Trade accounts save 10%. Apply with your ABN
| A | 189mm |
| B | 280mm |
| C | 46mm |
| H | 688mm |
| Net Weight | 41.3kg |
| Colour Code | Red |
| Standard Lift | 3m |
| Rated Capacity | 5t |
| Load Chain Diameter | 9mm x 30mm |
| No. Load Chain Falls | 2 |
| Effort on Lever to Lift Full Load | 363kg |
About this product
The Beaver 3S Industrial Manual Chain Block with overload protection is a 5t hand-operated hoist for vertical lifting on monorails, jibs and fixed installations. This is the 5t size in the range, running two falls of 9mm x 30mm Grade 80 calibrated load chain over a 3m standard lift, with a red colour code and a unit weight of 41.3kg. Effort on the lever to lift full load is 363kg.
Housing is cast steel with a gear case and reinforced side covers, and the double pawl and double roller guide keep the hand chain feeding cleanly into the wheel sprocket. Top and bottom hooks run on ball bearings and carry safety catches. ID plates and rivets are stainless steel to avoid sparking, and each block carries a serial number tied to its test certificate. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Use it for vertical lifts only.
Common questions
- what is the lift height on the beaver 3s 5t chain block
- The standard lift is 3m. It runs two falls of 9mm x 30mm Grade 80 calibrated load chain.
- can you side load a beaver chain block
- No, these blocks are for vertical lifts only. Side loading or horizontal use can jam the load chain and damage the block.
- how much pull is needed to lift 5t with this hoist
- Effort on the lever to lift the full 5t load is 363kg. The block itself weighs 41.3kg.
Full specifications
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 508103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 508203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 508303 | 3t | Yellow | 3m | 335kg | 2 | 8mm x 24mm |
| 508503 | 5t | Red | 3m | 363kg | 2 | 9mm x 30mm |
| 508603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 508103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 508203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 508303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 508503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 508603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
