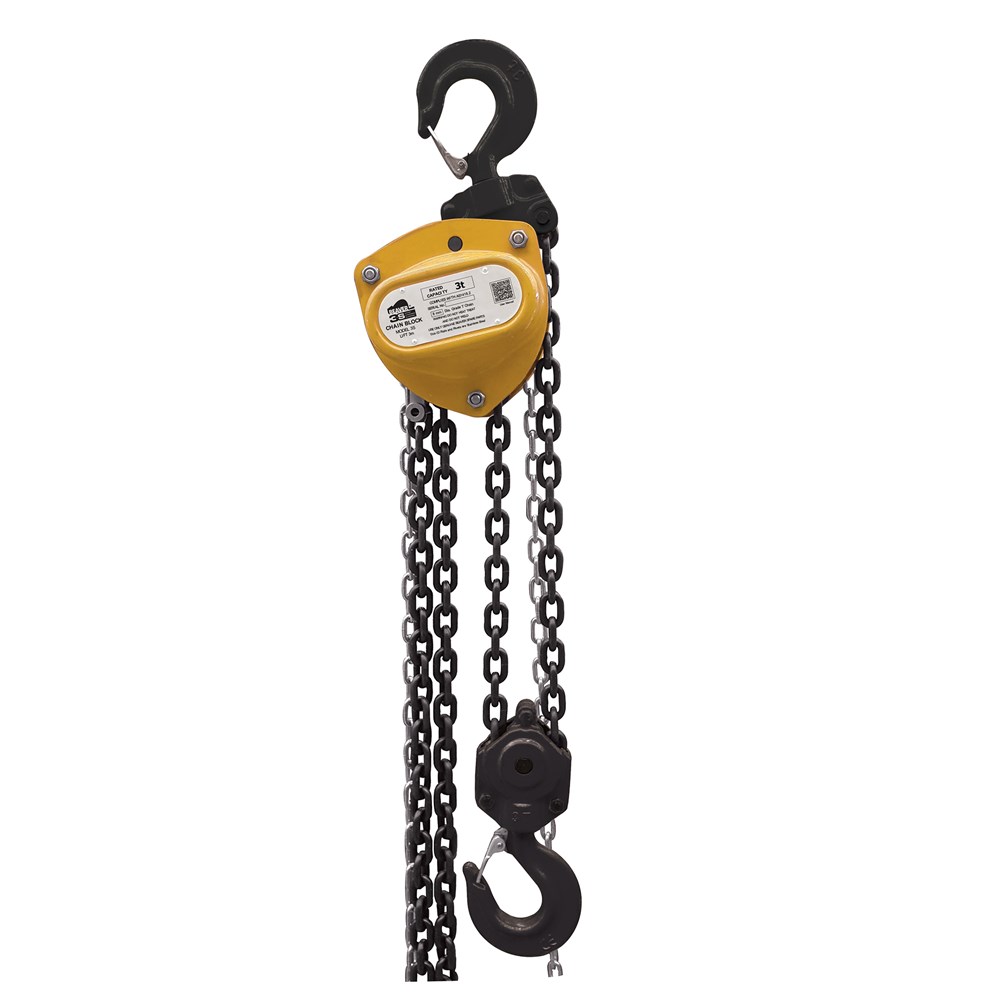

Beaver 3S Industrial Manual Chain Blocks with Overload Protection (6m Standard Lift) 3t
508306per Each
$651.37 inc GSTTrade $586.23, save $65.14Trade accounts save 10%. Apply with your ABN
| A | 176mm |
| B | 230mm |
| C | 46mm |
| H | 565mm |
| Net Weight | 37.2kg |
| Colour Code | Yellow |
| Standard Lift | 6m |
| Rated Capacity | 3t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 2 |
| Effort on Lever to Lift Full Load | 335kg |
About this product
The Beaver 3S Industrial Manual Chain Block is a hand-operated hoist for vertical lifting on monorails, jibs and fixed installations, and this one is the 3t size. It runs 8mm x 24mm Grade 80 calibrated load chain over two falls with a 6m standard lift, and takes 335kg of effort on the lever to move the full load. Net weight is 37.2kg. Yellow colour code, 565mm headroom, 176mm wide and 230mm deep.
Overload protection is built in, so the block slips before you push it past its rating. The cast steel body, gear case and reinforced side covers handle knocks on site, and the top and bottom hooks run on ball bearings with safety catches. A double pawl and double roller guide keep the chain feeding cleanly. Every unit carries a serial number matched to its test certificate. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Use it for straight vertical lifts only.
Common questions
- how much can a beaver 3s 3t chain block lift
- It is rated at 3t, lifted on two falls of 8mm x 24mm Grade 80 calibrated chain. Effort on the lever to move the full load is 335kg.
- what is the standard lift height on the beaver 3s 3 tonne
- Standard lift is 6m. Closed headroom on the 3t model is 565mm, so check your clearance under the beam or jib before you order.
- can you side load a chain block
- No. These blocks are for vertical lifts only, as side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 508106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 508206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 508306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 508506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 508606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 508106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 508206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 508306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 508506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 508606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
