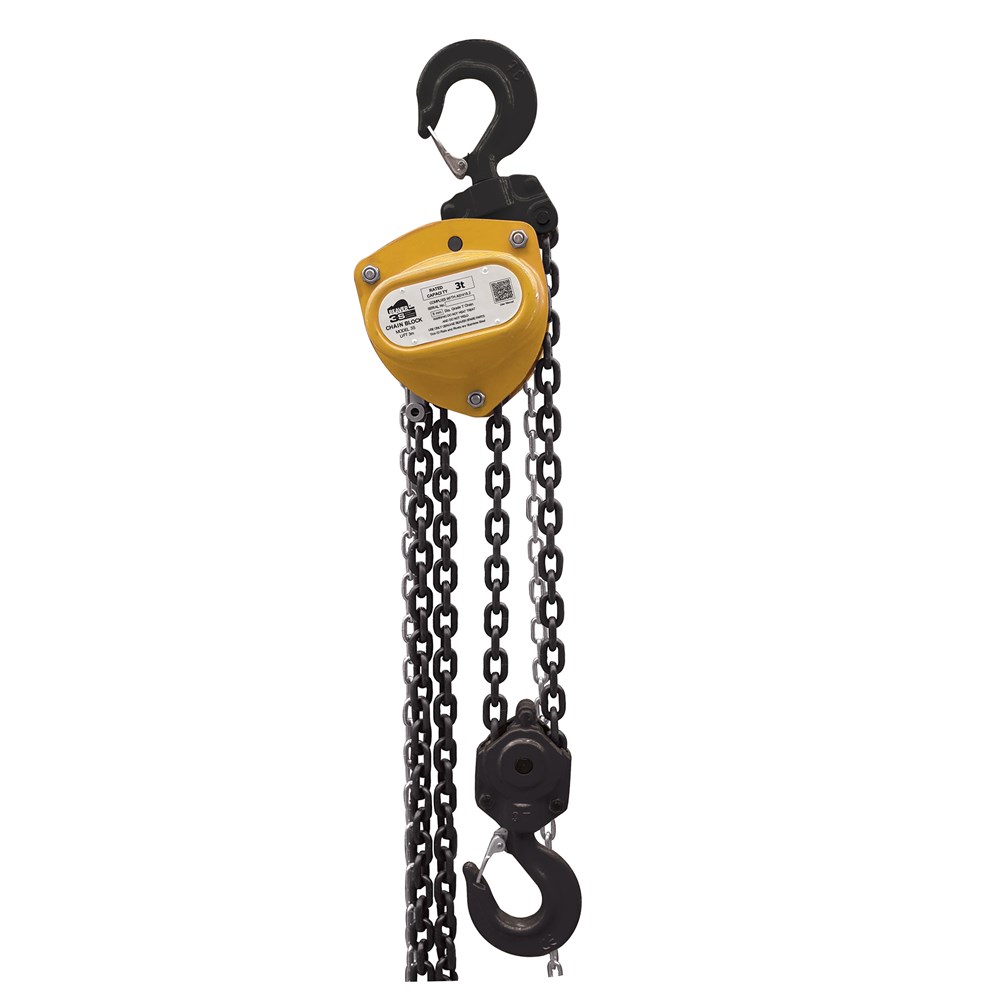

Beaver 3S Industrial Manual Chain Blocks With Overload Protection (3m Standard Lift) 3t
508303per Each
$616.68 inc GSTTrade $555.01, save $61.67Trade accounts save 10%. Apply with your ABN
| A | 176mm |
| B | 230mm |
| C | 46mm |
| H | 565mm |
| Net Weight | 29kg |
| Colour Code | Yellow |
| Standard Lift | 3m |
| Rated Capacity | 3t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 2 |
| Effort on Lever to Lift Full Load | 335kg |
About this product
The Beaver 3S Industrial Manual Chain Block in the 3t size is a hand-operated hoist for vertical lifting on monorails, jibs and fixed installations, with a 3m standard lift. Two falls of 8mm x 24mm G80 calibrated load chain carry the 3 tonne rated capacity, and it takes 335kg of effort on the lever to move a full load. Net weight is 29kg, so it is a solid unit to rig compared with the lighter capacities in the range.
Construction is cast steel through the body, gear case and reinforced side covers, with ball bearings in the top and bottom hooks and safety catches fitted. Overload protection is built in, along with a double pawl and double roller guide. The yellow colour code marks the 3t rating. It complies to AS/NZS 1418.2, and the Grade 80 calibrated chain is marked according to ISO 3077. Use it for straight vertical lifts only, side loading can jam the chain.
Common questions
- how much can a 3t beaver 3s chain block lift
- It is rated to 3 tonne on two falls of 8mm x 24mm Grade 80 calibrated load chain. Standard lift is 3m.
- can you side load a chain block
- No. This block is for vertical lifts only, side loading or horizontal use can jam the load chain and damage the block.
- what standard does the beaver 3s chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated chain is marked according to ISO 3077. Each block carries a serial number tied to its test certificate.
Full specifications
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 508103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 508203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 508303 | 3t | Yellow | 3m | 335kg | 2 | 8mm x 24mm |
| 508503 | 5t | Red | 3m | 363kg | 2 | 9mm x 30mm |
| 508603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 508103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 508203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 508303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 508503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 508603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
