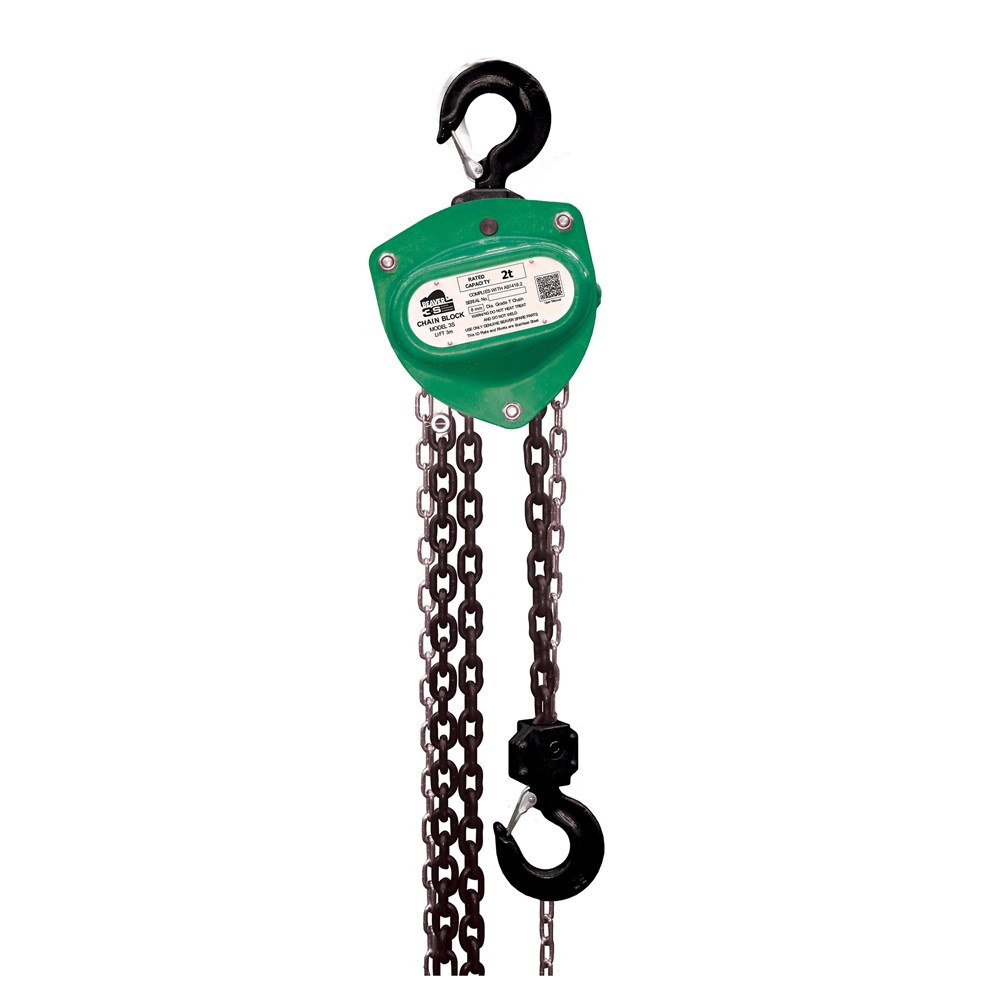

Beaver 3S Industrial Manual Chain Blocks with Overload Protection (6m Standard Lift) 2t
508206per Each
$401.94 inc GSTTrade $361.75, save $40.19Trade accounts save 10%. Apply with your ABN
| A | 175mm |
| B | 210mm |
| C | 36mm |
| H | 470mm |
| Net Weight | 23.6kg |
| Colour Code | Green |
| Standard Lift | 6m |
| Rated Capacity | 2t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 335kg |
About this product
The Beaver 3S Industrial Manual Chain Block is a hand-operated hoist for vertical lifting on monorails, jibs, fixed installations and maintenance work. This 2t version runs a single fall of 8mm x 24mm G80 calibrated load chain over a 6m standard lift, carries a green colour code and weighs 23.6kg. Effort on the lever to lift full load is 335kg. Body dimensions are 175mm wide, 210mm deep and 470mm high, with a 36mm hook opening.
Built with full body steel cast construction, an impact resistant gear case and reinforced side covers. Overload protection is built in, along with a double pawl, double roller guide and ball bearings in the top and bottom hooks with safety catches. Stainless steel ID plates and rivets avoid sparking. Each block has its own serial number tied to a test certificate. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Vertical lifts only, side loading can jam the chain.
Common questions
- what is the lift height on the 2t beaver 3s chain block
- Standard lift is 6m on a single fall of chain. The rated capacity is 2t.
- can you use a chain block sideways or horizontally
- No, these blocks are for vertical lifts only. Side loading or horizontal use can jam the load chain and damage the block.
- what standard does the beaver 3s chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated chain is marked according to ISO 3077. Each block also has a serial number that relates directly to a test certificate.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 508106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 508206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 508306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 508506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 508606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 508106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 508206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 508306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 508506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 508606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
