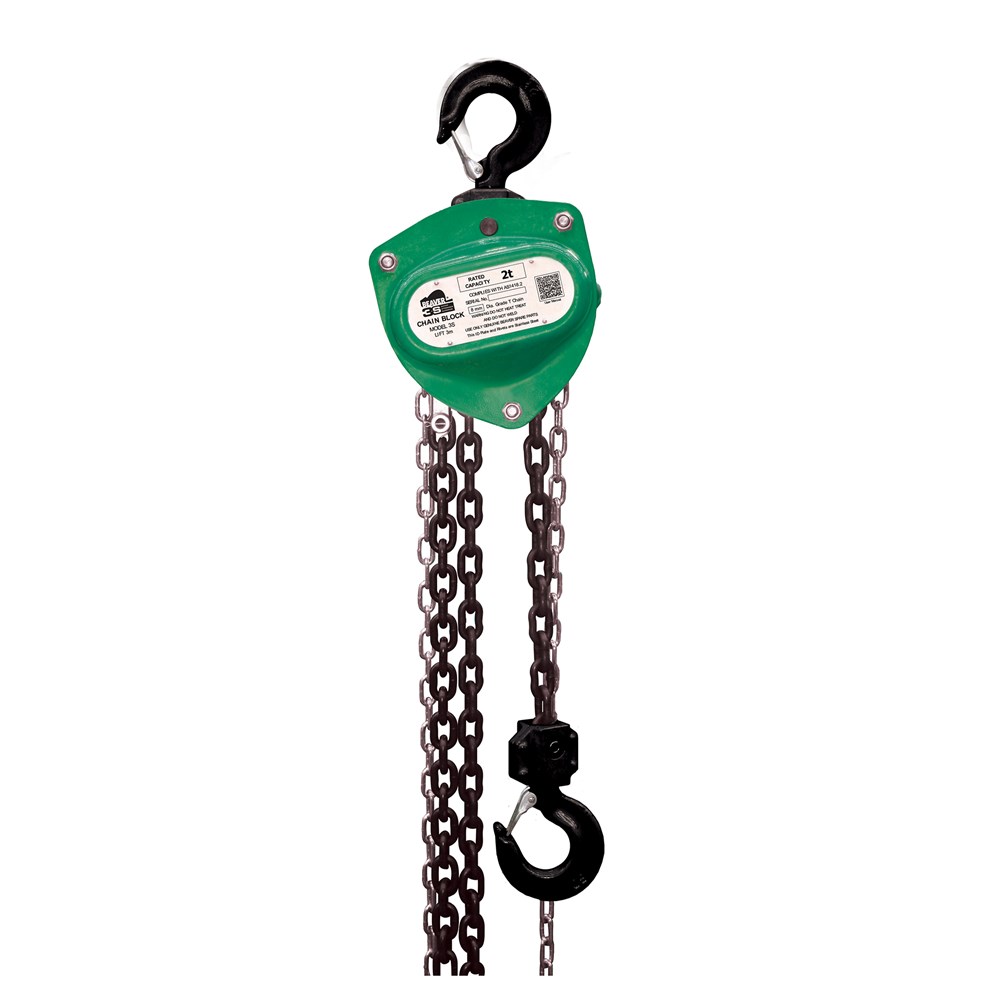

Beaver 3S Industrial Manual Chain Blocks With Overload Protection (3m Standard Lift) 2t
508203per Each
$334.89 Trade inc GST$372.10 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 175mm |
| B | 210mm |
| C | 36mm |
| H | 470mm |
| Net Weight | 19.5kg |
| Colour Code | Green |
| Standard Lift | 3m |
| Rated Capacity | 2t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 335kg |
Full specifications
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 508103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 508203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 508303 | 3t | Yellow | 3m | 335kg | 2 | 8mm x 24mm |
| 508503 | 5t | Red | 3m | 363kg | 2 | 9mm x 30mm |
| 508603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 508103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 508203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 508303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 508503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 508603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
