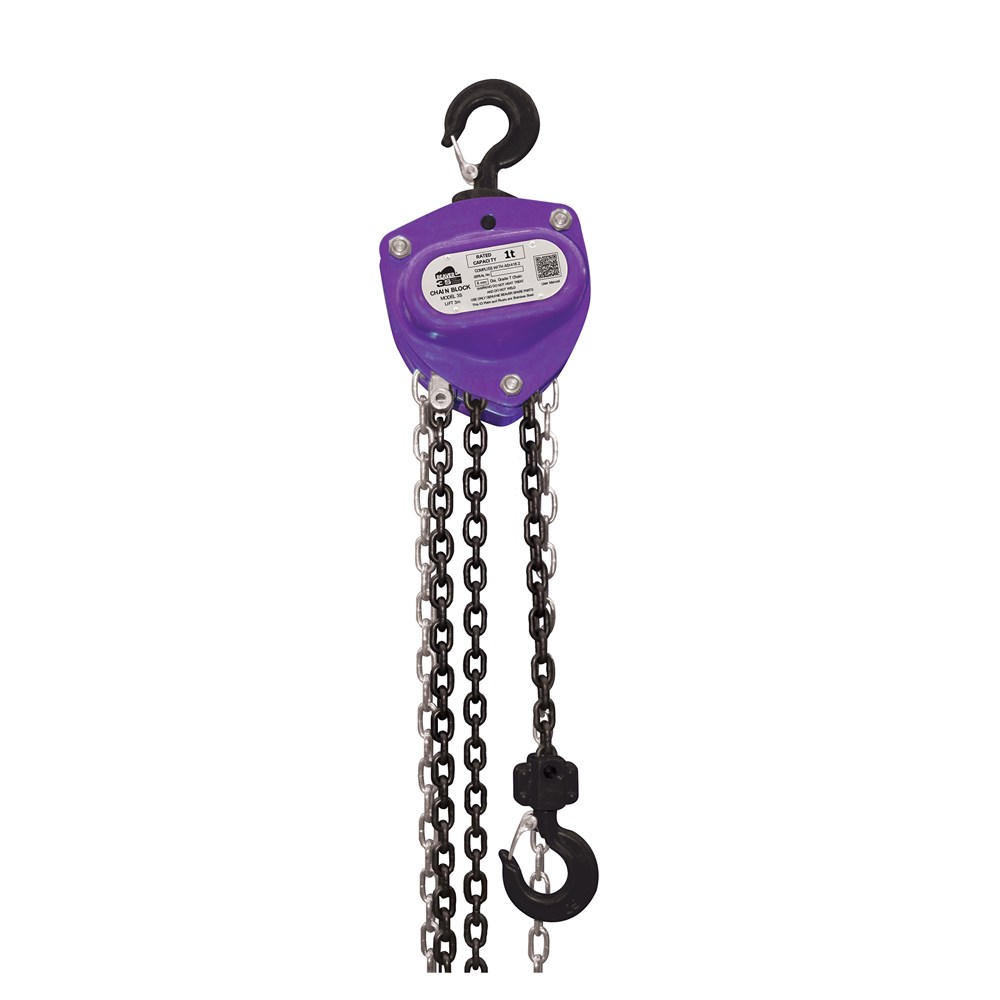

Beaver 3S Industrial Manual Chain Blocks with Overload Protection (6m Standard Lift) 1t
508106per Each
$270.01 inc GSTTrade $243.01, save $27.00Trade accounts save 10%. Apply with your ABN
| A | 151mm |
| B | 172mm |
| C | 32mm |
| H | 376mm |
| Net Weight | 14.8kg |
| Colour Code | Violet |
| Standard Lift | 6m |
| Rated Capacity | 1t |
| Load Chain Diameter | 6mm x 18mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 250kg |
About this product
The Beaver 3S Industrial Manual Chain Block with Overload Protection in 1t is the lightest size in the range, built for vertical lifting on monorails, jibs and fixed installations. It runs a single fall of 6mm x 18mm G80 calibrated load chain over a 6m standard lift, and at 14.8kg net it is the easiest of the six sizes to carry up to a job. Violet colour coding makes the capacity easy to pick out on a busy site.
Effort on the lever to lift the full load is 250kg. The housing is cast steel with a reinforced gear case and side covers, and the top and bottom hooks run ball bearings with safety catches. Overload protection is built in. ID plates and rivets are stainless steel to avoid sparking. Every 3S block carries a serial number tied to its own test certificate. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Use it for vertical lifts only.
Common questions
- what is the lift height on the beaver 3s 1t chain block
- Standard lift is 6m on a single fall of 6mm x 18mm G80 calibrated chain.
- can you side load a beaver 3s chain block
- No. These blocks are for vertical lifts only, as side loading or horizontal use can jam the load chain and damage the block.
- how much effort does it take to lift 1t with this block
- Effort on the lever to lift the full 1t load is 250kg.
- what standard does the beaver 3s 1t chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated chain is marked according to ISO 3077.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 508106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 508206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 508306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 508506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 508606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 508106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 508206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 508306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 508506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 508606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
