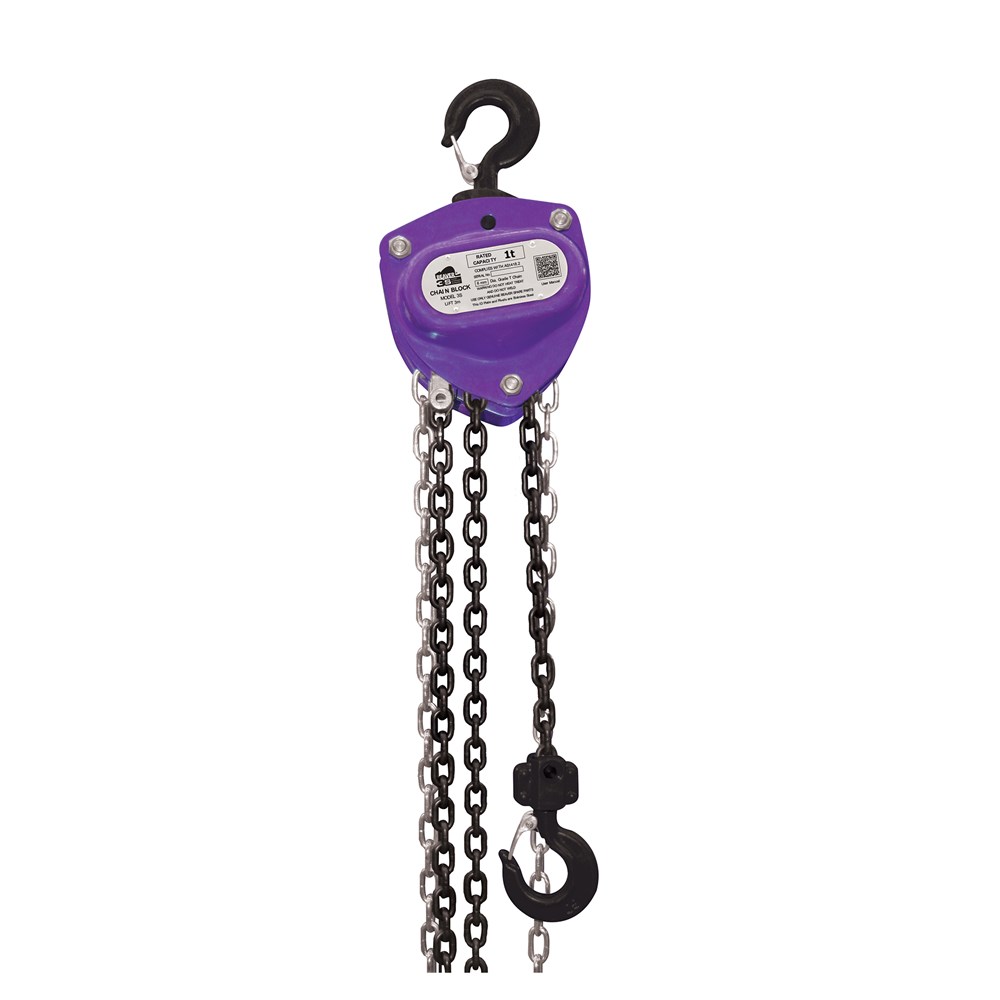

Beaver 3S Industrial Manual Chain Blocks With Overload Protection (3m Standard Lift) 1t
508103per Each
$249.02 inc GSTTrade $224.12, save $24.90Trade accounts save 10%. Apply with your ABN
| A | 151mm |
| B | 172mm |
| C | 32mm |
| H | 376mm |
| Net Weight | 12.5kg |
| Colour Code | Violet |
| Standard Lift | 3m |
| Rated Capacity | 1t |
| Load Chain Diameter | 6mm x 18mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 250kg |
About this product
The Beaver 3S Industrial Manual Chain Block in 1t is the lightest unit in the range at 12.5kg net, so it is the easy one to carry up a ladder or shift between jibs and monorails. It runs a single fall of 6mm x 18mm G80 calibrated load chain over a 3m standard lift, with 250kg of effort on the lever to pick up the full rated load. The violet colour code matches international lifting standards, and the headroom measures 376mm.
Built around cast steel housing with a reinforced gear case, double pawl and double roller guide. Top and bottom hooks run on ball bearings and carry safety catches, and overload protection is built in. ID plates and rivets are stainless steel to avoid sparking, and each block carries a serial number tied to its test certificate. Vertical lifts only. Side loading can jam the load chain and damage the block. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077.
Common questions
- how much can a beaver 3s 1t chain block lift
- It has a rated capacity of 1t on a single fall of load chain. Pulling 250kg on the lever will lift that full load.
- what standard does the beaver 3s chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated load chain is marked according to ISO 3077.
- can you side load a chain block
- No. The Beaver 3S is for vertical lifts only, as side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 508103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 508203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 508303 | 3t | Yellow | 3m | 335kg | 2 | 8mm x 24mm |
| 508503 | 5t | Red | 3m | 363kg | 2 | 9mm x 30mm |
| 508603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 508053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 508103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 508203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 508303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 508503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 508603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
