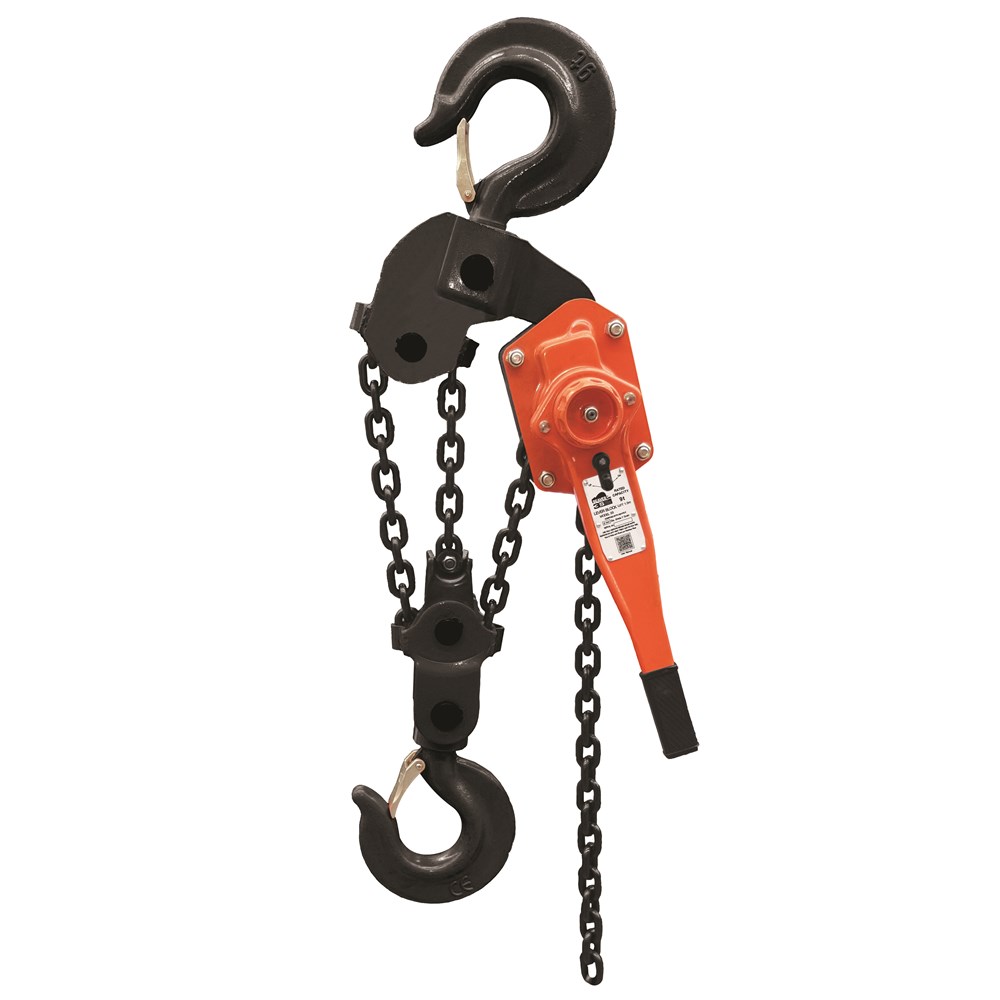

Beaver 3S Industrial Manual Lever Blocks With Overload Protection 9t
507900per Each
$885.62 inc GSTTrade $797.06, save $88.56Trade accounts save 10%. Apply with your ABN
| A | 200mm |
| B | 115mm |
| C | 316mm |
| D | 410mm |
| E | 60mm |
| H | 700mm |
| Net Weight | 47kg |
| Colour Code | Orange |
| Standard Lift | 1.5m |
| Rated Capacity | 9t |
| Load Chain Diameter | 10mm x 30mm |
| No. Load Chain Falls | 3 |
| Effot on Lever to Lift Full Load | 360N |
About this product
The Beaver 3S Industrial Manual Lever Block with Overload Protection at 9t is the heavy hitter of the range, built for lifting and tensioning work on rigging, construction and mining jobs. It runs three falls of 10mm x 30mm Grade 80 alloy steel load chain with a black finish, heat treated, calibrated and marked according to ISO 3077 and ISO 1834. Standard lift is 1.5m and it takes 360N of effort on the lever to move a full load. At 47kg it is a two-man lift into position, so plan the rig accordingly.
Gears and mechanism sit inside an all-steel shell, and the built-in overload clutch limits what the operator can pull through the unit. The orange colour code marks the 9t rating, matching the international lifting standard. ID plates and rivets are stainless steel to avoid sparking, which suits underground work. Every unit is operationally tested to rated capacity and comes with a test certificate tied to the stamped identification side plate. Complies to AS 1418.2.
Common questions
- what is the lift height on the beaver 9t lever block
- Standard lift is 1.5m. The load chain is 10mm x 30mm Grade 80 alloy steel running on three falls.
- is the beaver 3S lever block safe for underground mining
- Yes. The ID plates and rivets are stainless steel to avoid dangerous sparking, which is why these blocks are used underground.
- how much does the 9t beaver lever block weigh
- Net weight is 47kg. Effort on the lever to lift the full 9t load is 360N.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effot on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 507080 | 0.8t | White | 1.5m | 140N | 1 | 6mm x 18mm |
| 507160 | 1.6t | Violet | 1.5m | 240N | 1 | 8mm x 24mm |
| 507320 | 3.2t | Yellow | 1.5m | 320N | 1 | 10mm x 30mm |
| 507630 | 6.3t | Brown | 1.5m | 340N | 2 | 10mm x 30mm |
| 507900 | 9t | Orange | 1.5m | 360N | 3 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 507080 | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 507160 | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 507320 | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 507630 | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
| 507900 | 9t | 200mm | 115mm | 316mm | 410mm | 60mm | 700mm | 47kg |
