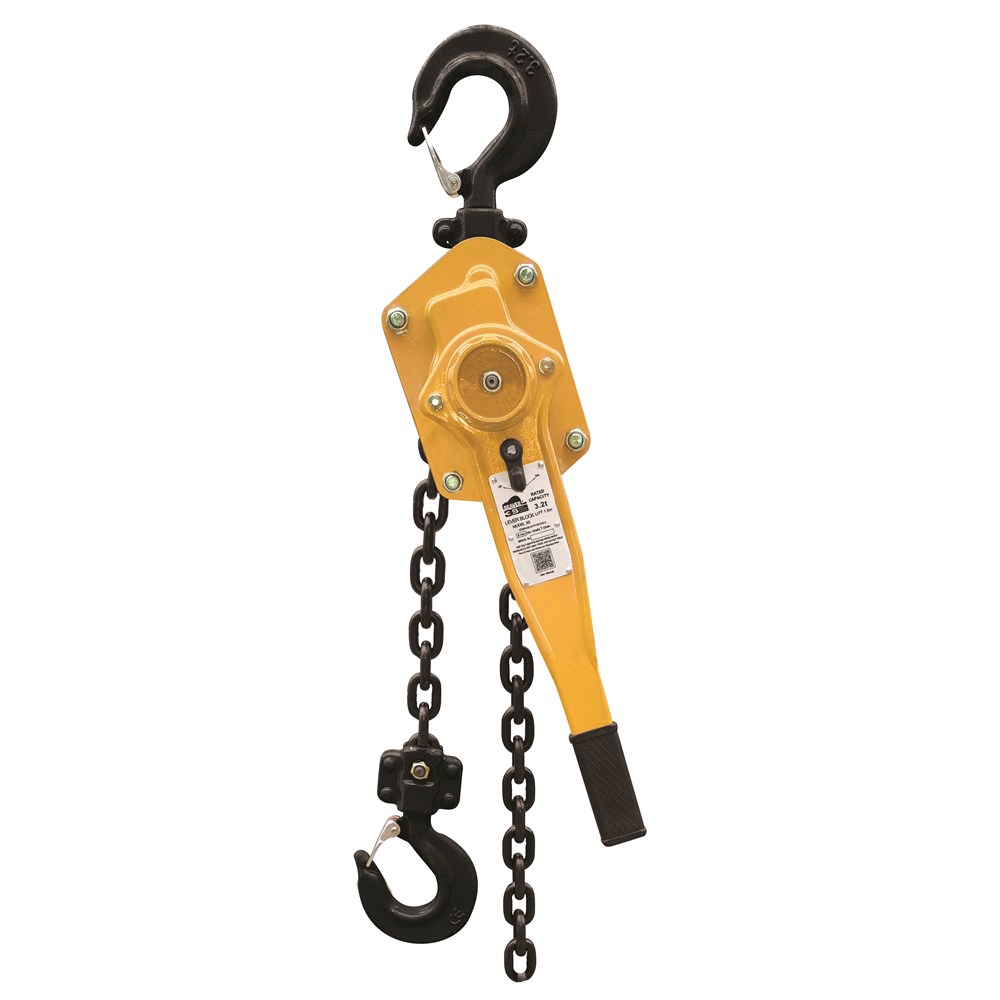

Beaver 3S Industrial Manual Lever Blocks With Overload Protection 3.2t
507320per Each
$438.15 inc GSTTrade $394.34, save $43.81Trade accounts save 10%. Apply with your ABN
| A | 200mm |
| B | 115mm |
| C | 180mm |
| D | 410mm |
| E | 40mm |
| H | 480mm |
| Net Weight | 21kg |
| Colour Code | Yellow |
| Standard Lift | 1.5m |
| Rated Capacity | 3.2t |
| Load Chain Diameter | 10mm x 30mm |
| No. Load Chain Falls | 1 |
| Effot on Lever to Lift Full Load | 320N |
About this product
The Beaver 3S Industrial Manual Lever Block with Overload Protection is a 3.2t hand-operated block for lifting, pulling and tensioning loads on site. This is the 3.2t size in the range, running a single fall of 10mm x 30mm Grade 80 alloy load chain with a 1.5m standard lift. It takes 320N of effort on the lever to move a full load, and the unit weighs 21kg.
Gears and mechanism sit inside an all-steel shell, and the built-in overload clutch limits what the operator can pull through the lever. The load chain is heat treated with a black finish, calibrated and marked to ISO 3077 and ISO 1834. ID plates and rivets are stainless steel to avoid sparking, which suits underground work. Each block is tested to rated capacity and comes with a test certificate matching the stamped side plate. Complies to AS 1418.2, colour coded yellow.
Common questions
- what is the WLL of the Beaver 3S 3.2t lever block
- It has a rated capacity of 3.2t on a single fall of chain. Every unit is operationally tested to that rated capacity and supplied with a test certificate.
- how much chain does the 3.2t Beaver lever block have
- Standard lift is 1.5m using 10mm x 30mm Grade 80 alloy load chain. The chain is heat treated with a black finish and marked to ISO 3077 and ISO 1834.
- is the Beaver 3S lever block ok for underground mining
- Yes. The ID plates and rivets are stainless steel to avoid dangerous sparking, which is why these blocks are commonly used underground as well as in rigging and construction.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effot on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 507080 | 0.8t | White | 1.5m | 140N | 1 | 6mm x 18mm |
| 507160 | 1.6t | Violet | 1.5m | 240N | 1 | 8mm x 24mm |
| 507320 | 3.2t | Yellow | 1.5m | 320N | 1 | 10mm x 30mm |
| 507630 | 6.3t | Brown | 1.5m | 340N | 2 | 10mm x 30mm |
| 507900 | 9t | Orange | 1.5m | 360N | 3 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 507080 | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 507160 | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 507320 | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 507630 | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
| 507900 | 9t | 200mm | 115mm | 316mm | 410mm | 60mm | 700mm | 47kg |
