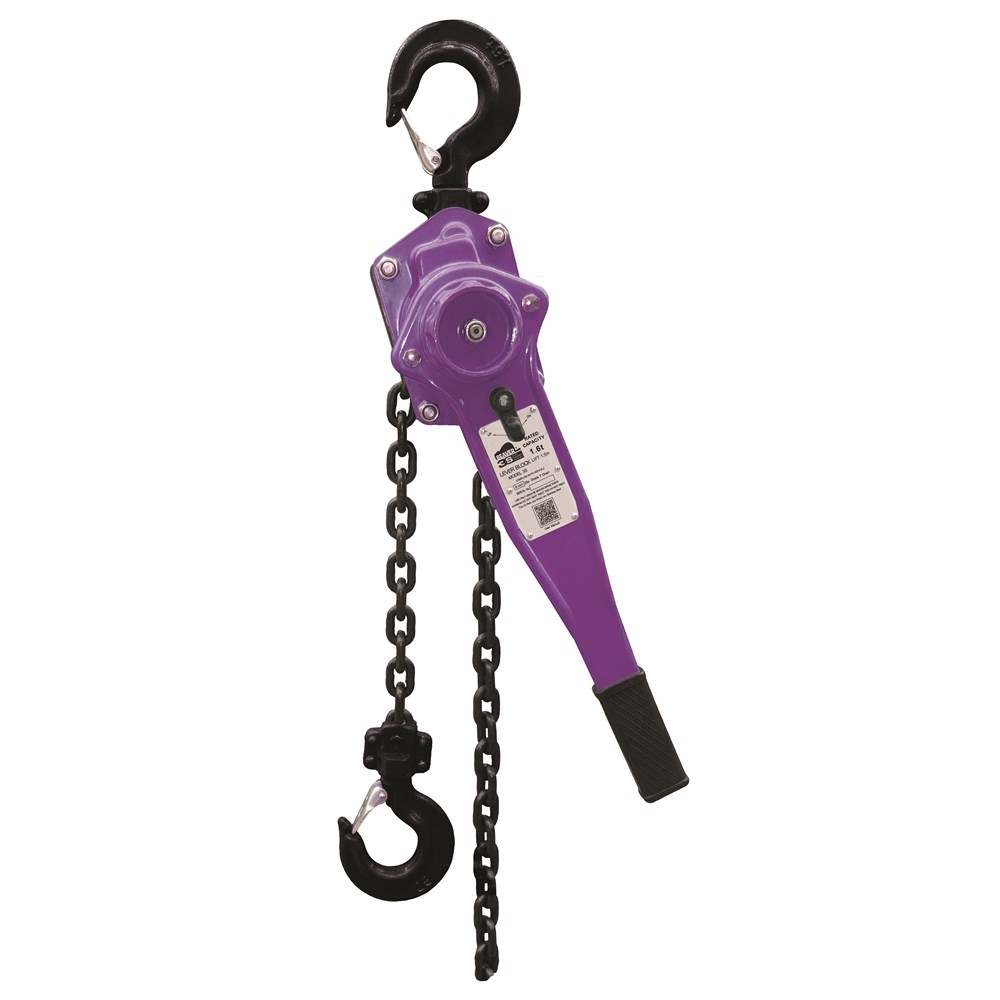

Beaver 3S Industrial Manual Lever Blocks With Overload Protection 1.6t
507160per Each
$313.15 inc GSTTrade $281.84, save $31.31Trade accounts save 10%. Apply with your ABN
| A | 172mm |
| B | 98mm |
| C | 160mm |
| D | 410mm |
| E | 35mm |
| H | 380mm |
| Net Weight | 11kg |
| Colour Code | Violet |
| Standard Lift | 1.5m |
| Rated Capacity | 1.6t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 1 |
| Effot on Lever to Lift Full Load | 240N |
About this product
The Beaver 3S Industrial Manual Lever Block with Overload Protection handles lifting, pulling and tensioning jobs up to 1.6t. This is the violet colour coded size in the range, running a single fall of 8mm x 24mm Grade 80 alloy load chain with a 1.5m standard lift. It takes 240N of effort on the lever to move a full load, and the unit weighs 11kg, so it is easy enough to carry up a ladder or into a confined space.
The gears sit inside an all steel shell, and the built in overload clutch limits what the operator can pull through the mechanism. Load chain is heat treated with a black finish, calibrated and marked to ISO 3077 and ISO 1834. Stainless ID plates and rivets cut the risk of sparking underground. Each block is tested to its rated capacity, supplied with a test certificate matched to the stamped side plate, and complies to AS 1418.2.
Common questions
- what is the lifting capacity of the beaver 3s 1.6t lever block
- It is rated to 1.6t on a single fall of chain, with a 1.5m standard lift as supplied.
- is the beaver 3s lever block safe for underground mining
- Yes. The ID plates and rivets are stainless steel to avoid dangerous sparking, which suits underground mining work.
- what grade is the load chain on a beaver lever block
- The load chain is high resistance Grade 80 alloy steel, 8mm x 24mm, heat treated with a black finish and marked to ISO 3077 and ISO 1834.
- how much force is needed to lift a full load with this lever block
- Around 240N of effort on the lever will shift the full 1.6t rated load.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effot on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 507080 | 0.8t | White | 1.5m | 140N | 1 | 6mm x 18mm |
| 507160 | 1.6t | Violet | 1.5m | 240N | 1 | 8mm x 24mm |
| 507320 | 3.2t | Yellow | 1.5m | 320N | 1 | 10mm x 30mm |
| 507630 | 6.3t | Brown | 1.5m | 340N | 2 | 10mm x 30mm |
| 507900 | 9t | Orange | 1.5m | 360N | 3 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 507080 | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 507160 | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 507320 | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 507630 | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
| 507900 | 9t | 200mm | 115mm | 316mm | 410mm | 60mm | 700mm | 47kg |
