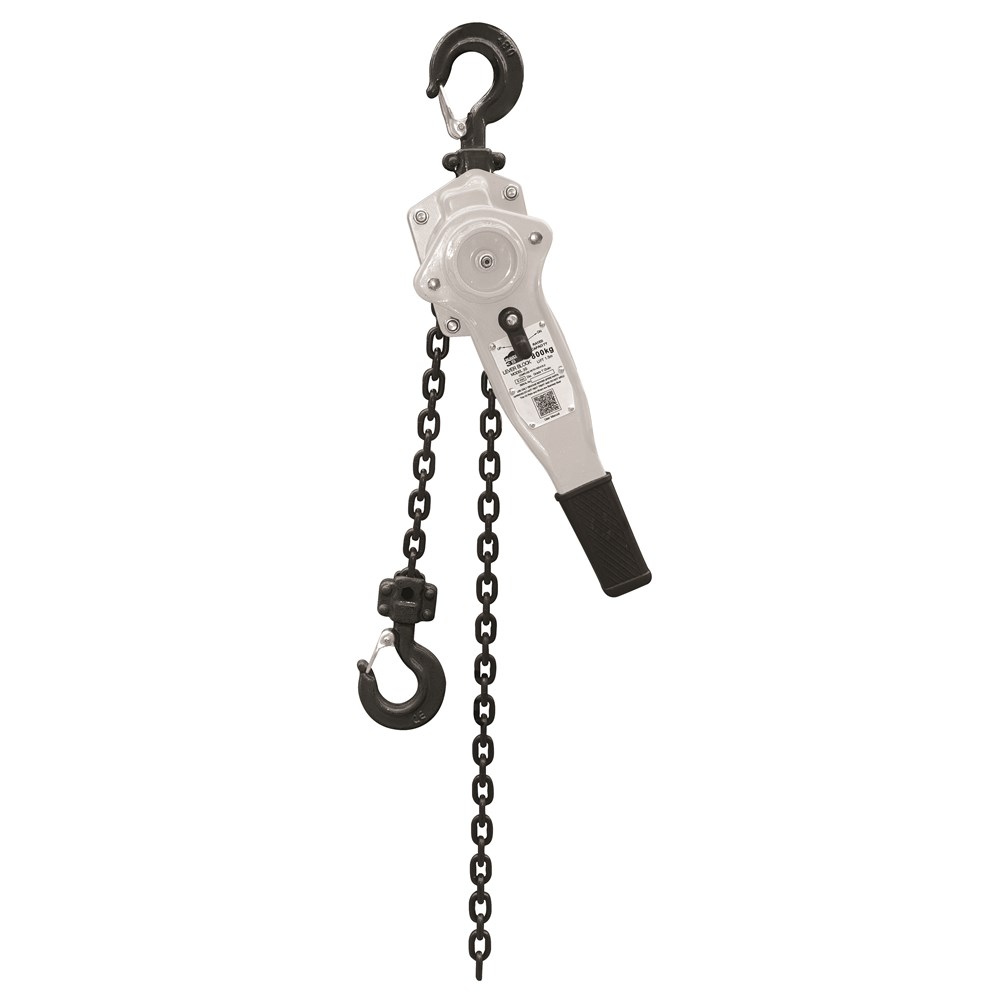

Beaver 3S Industrial Manual Lever Blocks With Overload Protection 0.8t
507080per Each
$247.88 Trade inc GST$275.42 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 148mm |
| B | 90mm |
| C | 136mm |
| D | 280mm |
| E | 30mm |
| H | 325mm |
| Net Weight | 7kg |
| Colour Code | White |
| Standard Lift | 1.5m |
| Rated Capacity | 0.8t |
| Load Chain Diameter | 6mm x 18mm |
| No. Load Chain Falls | 1 |
| Effot on Lever to Lift Full Load | 140N |
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effot on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 507080 | 0.8t | White | 1.5m | 140N | 1 | 6mm x 18mm |
| 507160 | 1.6t | Violet | 1.5m | 240N | 1 | 8mm x 24mm |
| 507320 | 3.2t | Yellow | 1.5m | 320N | 1 | 10mm x 30mm |
| 507630 | 6.3t | Brown | 1.5m | 340N | 2 | 10mm x 30mm |
| 507900 | 9t | Orange | 1.5m | 360N | 3 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 507080 | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 507160 | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 507320 | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 507630 | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
| 507900 | 9t | 200mm | 115mm | 316mm | 410mm | 60mm | 700mm | 47kg |
