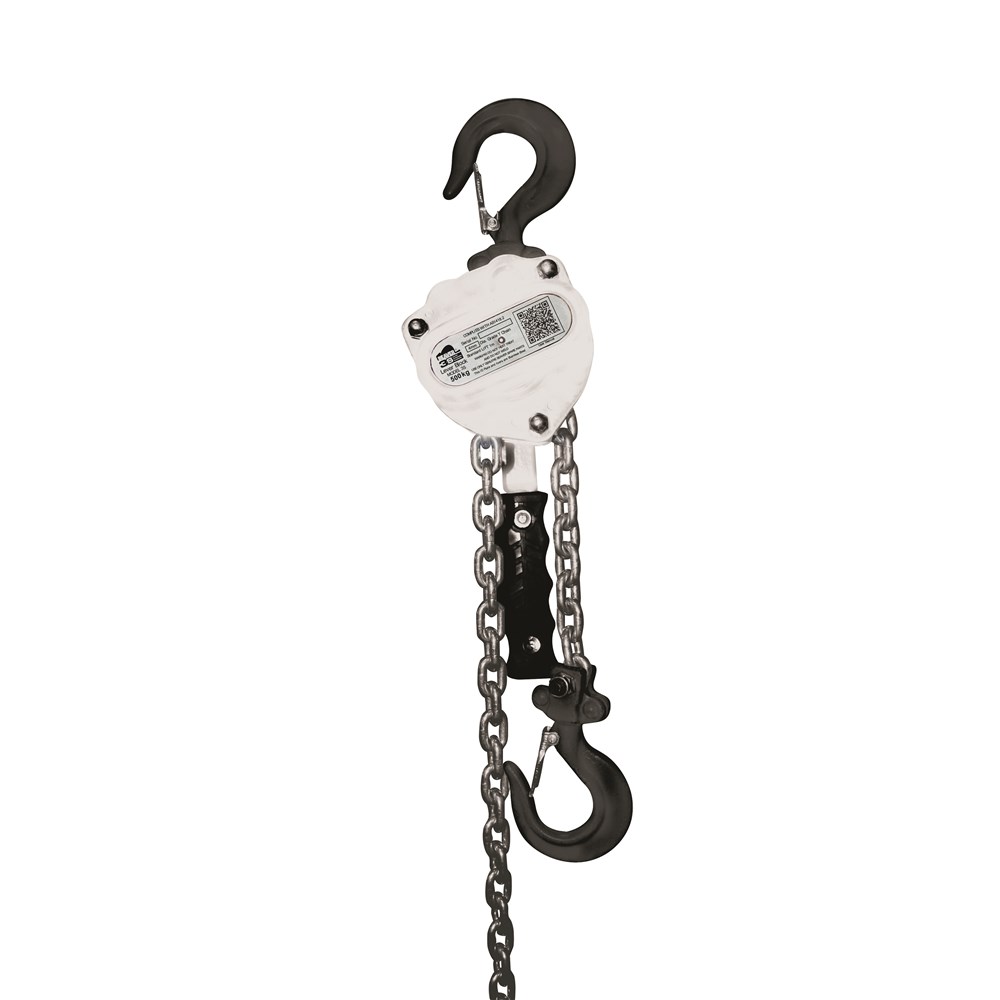

Beaver 3S Manual Lever Blocks 0.5t
506050per Each
$203.50 inc GSTTrade $183.15, save $20.35Trade accounts save 10%. Apply with your ABN
| A | 100.5mm |
| B | 62.5mm |
| C | 81mm |
| D | 160mm |
| E | 24.5mm |
| H | 250mm |
| Net Weight | 2.5kg |
| Rated Capacity | 0.5t |
About this product
The Beaver 3S Manual Lever Block 0.5t is a compact ratchet block for lifting, pulling and tensioning smaller loads by hand. At a rated capacity of 0.5t and a net weight of 2.5kg, it is the size you grab when the job is light and you need something you can carry up a ladder or work one handed in tight space. Body measures 250mm high with a 160mm lever and 100.5mm across the frame.
The load chain is high resistance Grade 80 with a zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834. Gears sit inside an all steel shell, and stainless steel ID plates and rivets keep sparking out of the picture underground. Each block is operationally tested to its rated capacity and comes with a test certificate matched to the stamped identification side plate. Complies to AS 1418.2.
Common questions
- how much can a beaver 3s 0.5t lever block lift
- It has a rated capacity of 0.5t, and every unit is operationally tested to that capacity before it leaves the factory.
- what grade is the chain on a beaver lever block
- The load chain is high resistance Grade 80 with a zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834.
- are beaver lever blocks ok for underground mining
- The ID plates and rivets are stainless steel to avoid dangerous sparking, which suits underground mining work.
Full specifications
| Product Ccode | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Fails | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 506025 | 0.25t | Grey | 1.5m | 210N | 1 | 4mm |
| 506050 | 0.5t | Grey | 1.5M | 320N | 1 | 4mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 506025 | 0.25t | 87mm | 55.5mm | 68mm | 145mm | 21mm | 200mm | 1.5kg |
| 506050 | 0.5t | 100.5mm | 62.5mm | 81mm | 160mm | 24.5mm | 250mm | 2.5kg |
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 506080 | 0.8t | White | 1.5m | 140N | 1 | 6mm x 18mm |
| 506160 | 1.6t | Violet | 1.5m | 240N | 1 | 8mm x 24mm |
| 506320 | 3.2t | Yellow | 1.5m | 320N | 1 | 10mm x 30mm |
| 506630 | 6.3t | Brown | 1.5m | 340N | 2 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 506080 | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 506160 | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 506320 | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 506630 | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
