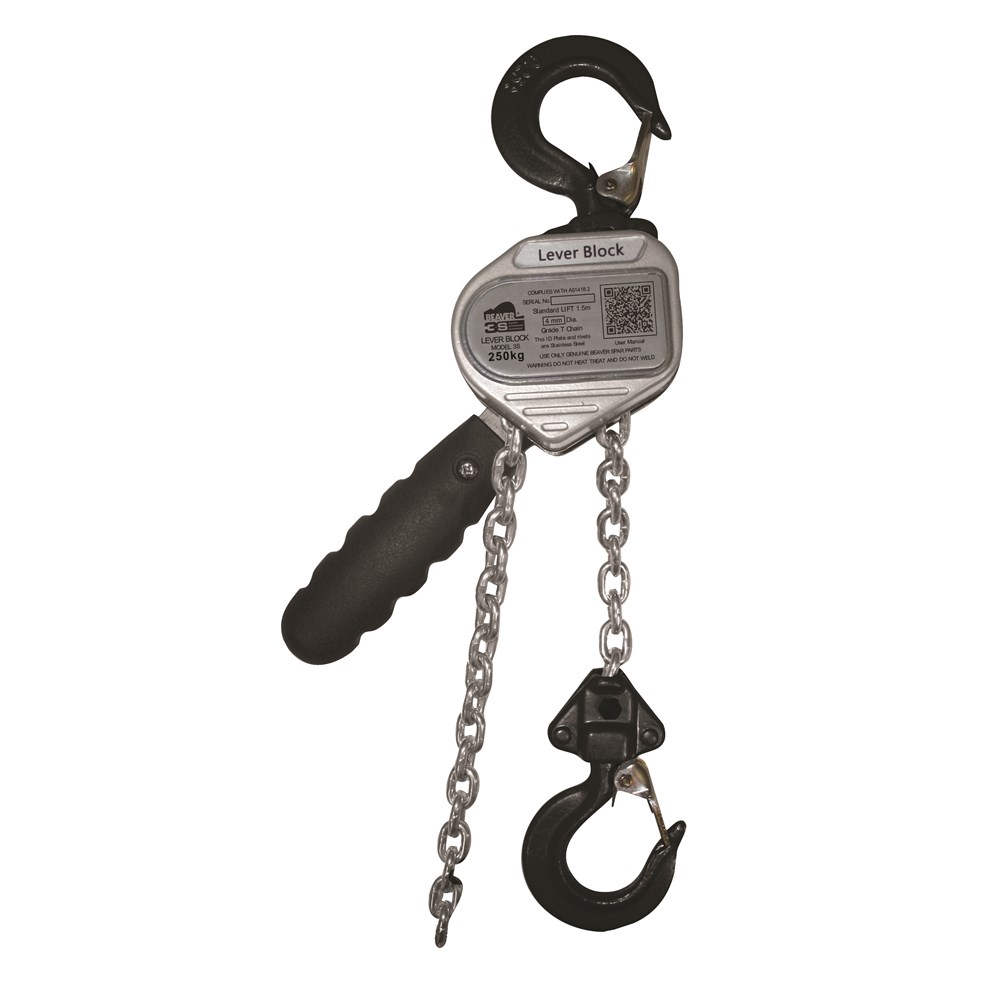

Beaver 3S Manual Lever Blocks 0.25t
506025per Each
$167.20 inc GSTTrade $150.48, save $16.72Trade accounts save 10%. Apply with your ABN
| A | 87mm |
| B | 55.5mm |
| C | 68mm |
| D | 145mm |
| E | 21mm |
| H | 200mm |
| Net Weight | 1.5kg |
| Rated Capacity | 0.25t |
About this product
The Beaver 3S Manual Lever Blocks 0.25t is a compact hand lever hoist for light lifting, pulling and tensioning work. At 250kg rated capacity it is the smallest in the 3S range, and at 1.5kg net weight it is the one you can carry up a ladder or into a tight space without a second thought. Body dimensions are 87mm across A, 68mm at C and 200mm headroom at H, with a 21mm hook opening at E.
The load chain is high resistance Grade 80 with a zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834. Gears and mechanism sit inside an all steel shell. Every 3S block is operationally tested to its rated capacity and comes with a test certificate matched to the stamped identification side plate. Complies to AS 1418.2.
Common questions
- what is the Beaver 3S 0.25t lever block rated to
- It has a rated capacity of 0.25t, or 250kg. Each unit is operationally tested to that rated capacity and supplied with a test certificate.
- what grade is the chain on a Beaver 3S lever block
- The load chain is high resistance Grade 80 with a zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834.
- how much does the 250kg Beaver lever block weigh
- Net weight is 1.5kg, which makes it the easiest size in the 3S range to carry and work overhead with.
Full specifications
| Product Ccode | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Fails | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 506025 | 0.25t | Grey | 1.5m | 210N | 1 | 4mm |
| 506050 | 0.5t | Grey | 1.5M | 320N | 1 | 4mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 506025 | 0.25t | 87mm | 55.5mm | 68mm | 145mm | 21mm | 200mm | 1.5kg |
| 506050 | 0.5t | 100.5mm | 62.5mm | 81mm | 160mm | 24.5mm | 250mm | 2.5kg |
| Product code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 506080 | 0.8t | White | 1.5m | 140N | 1 | 6mm x 18mm |
| 506160 | 1.6t | Violet | 1.5m | 240N | 1 | 8mm x 24mm |
| 506320 | 3.2t | Yellow | 1.5m | 320N | 1 | 10mm x 30mm |
| 506630 | 6.3t | Brown | 1.5m | 340N | 2 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
|---|---|---|---|---|---|---|---|---|
| 506080 | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 506160 | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 506320 | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 506630 | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
