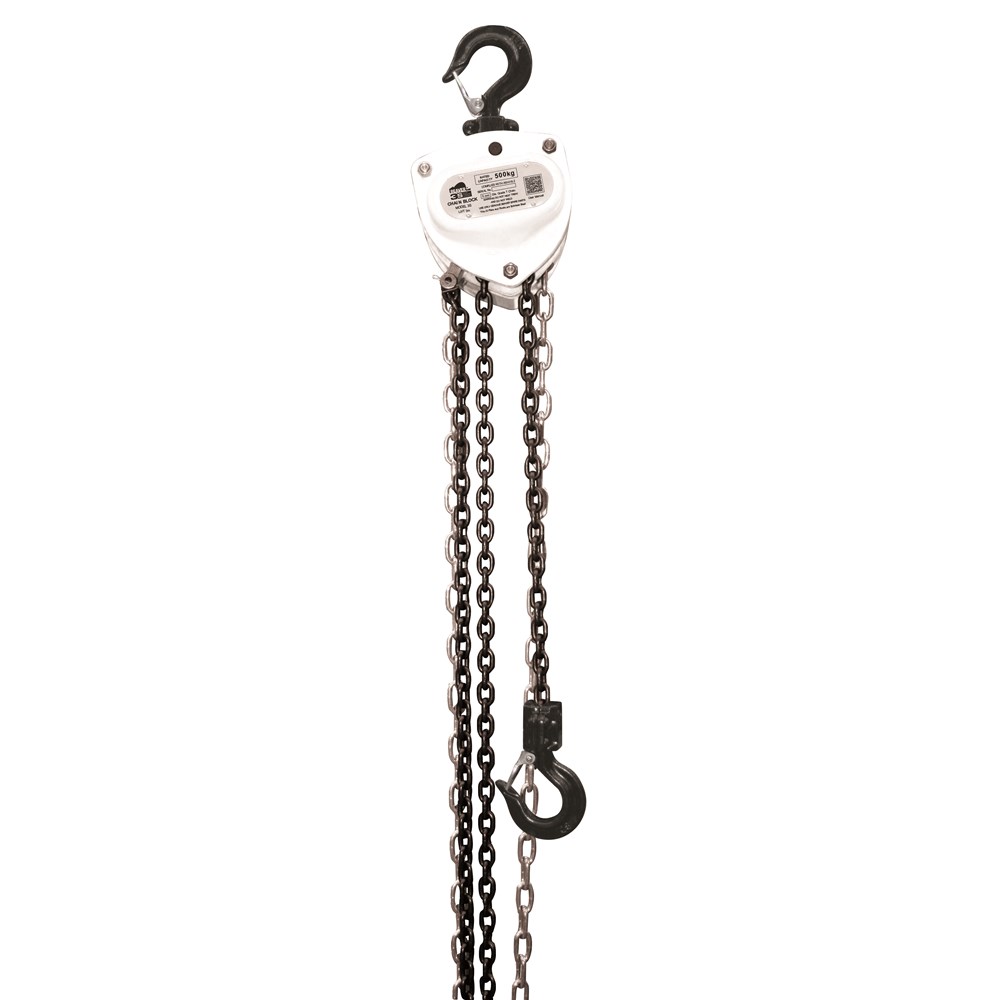

Beaver 3S Industrial Manual Chain Blocks (6m Standard Lift) 5t
503506per Each
$770.79 inc GSTTrade $693.71, save $77.08Trade accounts save 10%. Apply with your ABN
| A | 189mm |
| B | 280mm |
| C | 46mm |
| H | 688mm |
| Net Weight | 54.5kg |
| Colour Code | Red |
| Standard Lift | 6m |
| Rated Capacity | 5t |
| Load Chain Diameter | 9mm x 30mm |
| No. Load Chain Falls | 2 |
| Effort on Lever to Lift Full Load | 363kg |
About this product
The Beaver 3S Industrial Manual Chain Blocks (6m Standard Lift) 5t is a hand-operated hoist for vertical lifts on monorails, jibs, fixed installations and maintenance work. This is the 5 tonne size in the range, running two falls of 9mm x 30mm G80 calibrated load chain through a 6m standard lift. It takes 363kg of effort on the hand chain to lift the full load, and the unit itself weighs 54.5kg, so plan your access and rigging point accordingly.
Construction is heavy duty steel throughout, with a cast steel housing, impact resistant gear case and reinforced side covers. A double pawl and double roller guide keep the chain tracking, while the curling design feeds the hand chain straight into the wheel sprocket. Top and bottom hooks run ball bearings and safety catches. Stainless ID plates and rivets reduce spark risk. Body measures 189mm x 280mm x 46mm with a headroom of 688mm, colour coded red. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077.
Common questions
- what is the lift height on the beaver 3S 5t chain block
- Standard lift is 6m. The 5t model uses two falls of 9mm x 30mm Grade 80 calibrated load chain.
- can you use a chain block sideways or horizontally
- No. These blocks are for vertical lifts only, as side loading or horizontal use can jam the load chain and damage the block.
- how much effort is needed to lift 5 tonne with a manual chain block
- Effort on the lever to lift the full 5t load is 363kg, and the block itself has a net weight of 54.5kg.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 503056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 503106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 503206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 503306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 503506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 503606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 503056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 503106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 503206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 503306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 503506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 503606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
