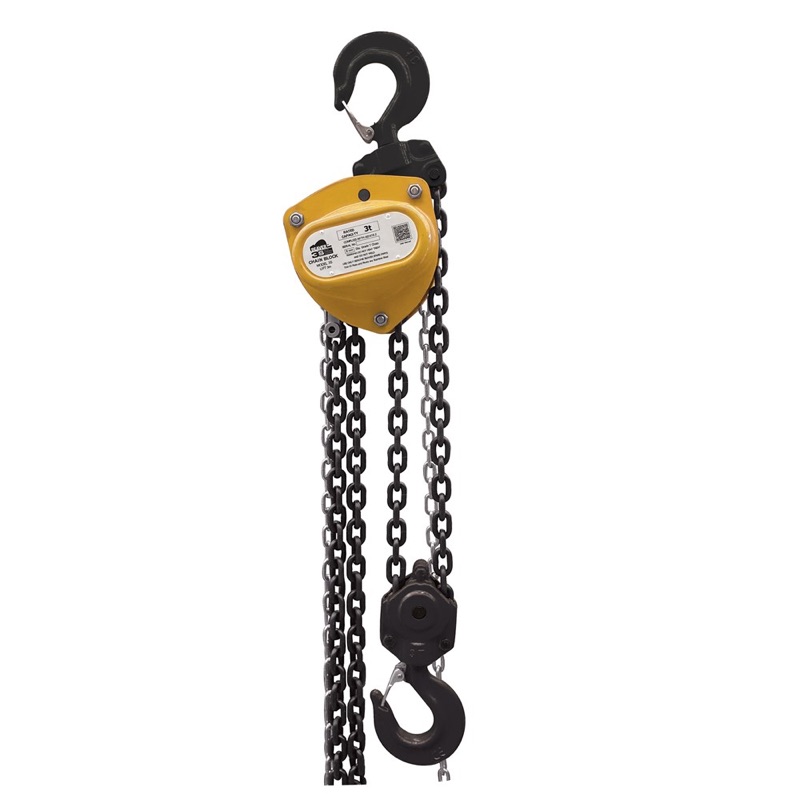

Beaver 3S Industrial Manual Chain Blocks (1.5-3m Standard Lift) 3t
503303per Each
$382.35 inc GSTTrade $344.12, save $38.23Trade accounts save 10%. Apply with your ABN
| A | 176mm |
| B | 230mm |
| C | 46mm |
| H | 565mm |
| Net Weight | 29kg |
| Colour Code | Yellow |
| Standard Lift | 3m |
| Rated Capacity | 3t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 2 |
| Effort on Lever to Lift Full Load | 265kg |
About this product
The Beaver 3S Industrial Manual Chain Block in 3t is the mid-heavy option in the range, built for vertical lifts on monorails, jibs and fixed installations where you need real capacity without going to a powered hoist. It runs 8mm x 24mm Grade 80 calibrated load chain over two falls, with a 3m standard lift and 265kg of effort on the lever to shift a full load. Yellow colour code matches international lifting practice, and the unit weighs 29kg.
Construction is full body cast steel with a gear case and reinforced side covers. Top and bottom hooks run on ball bearings and carry safety catches, and the double pawl with double roller guide keeps things predictable under load. Stainless ID plates and rivets avoid sparking. Use it for vertical lifting only, since side or horizontal loading can jam the chain. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077.
Common questions
- what is the lift height on the beaver 3s 3t chain block
- Standard lift is 3m. The block runs 8mm x 24mm Grade 80 calibrated load chain over two falls.
- how much effort to lift 3 tonne with this chain block
- Effort on the lever to lift the full 3t load is 265kg.
- can you use a chain block sideways or horizontally
- No, the Beaver 3S is for vertical lifts only. Side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 503053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 503103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 503203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 503303 | 3t | Yellow | 3m | 265kg | 2 | 8mm x 24mm |
| 503503 | 5t | Red | 3m | 360kg | 2 | 9mm x 30mm |
| 503603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 503053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 503103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 503203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 503303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 503503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 503603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
