Beaver 3S Industrial Manual Chain Blocks (6m Standard Lift) 2t
503206per Each
$386.12 inc GSTTrade $347.51, save $38.61Trade accounts save 10%. Apply with your ABN
| A | 175mm |
| B | 210mm |
| C | 36mm |
| H | 470mm |
| Net Weight | 23.6kg |
| Colour Code | Green |
| Standard Lift | 6m |
| Rated Capacity | 2t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 335kg |
About this product

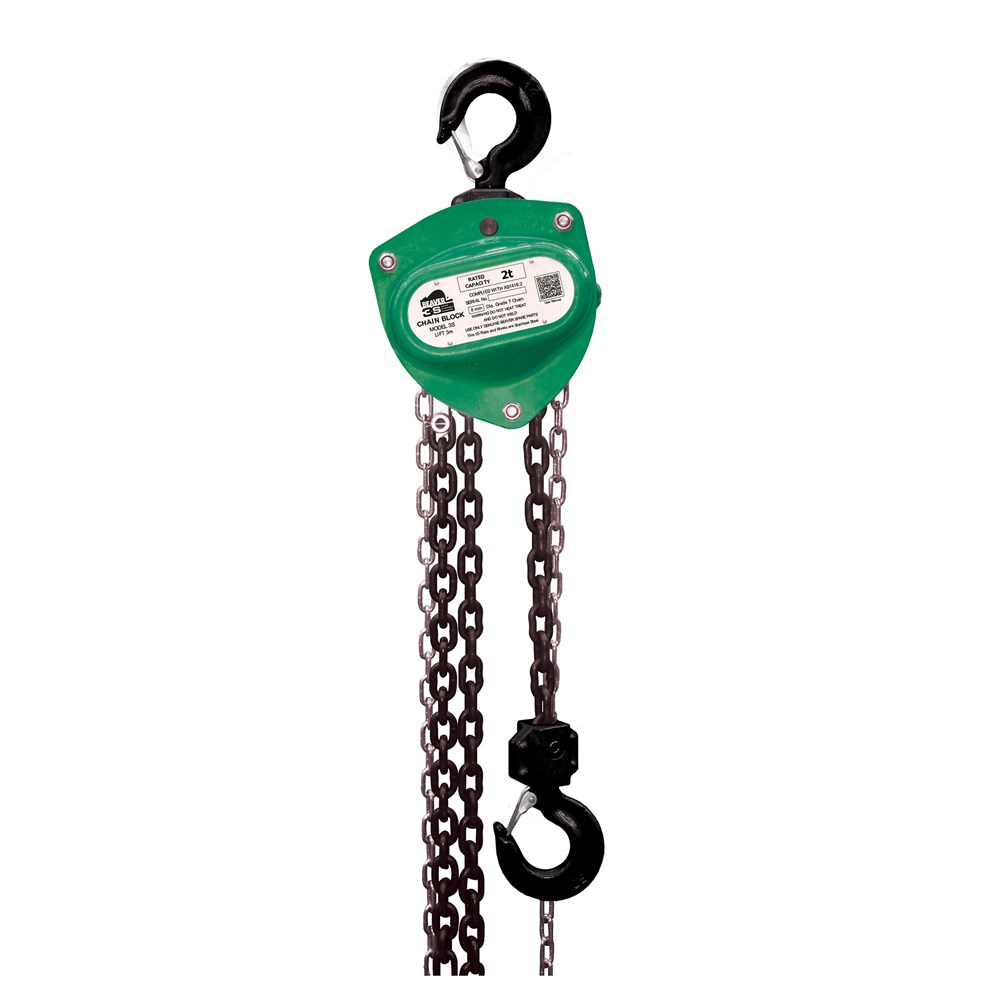

The Beaver 3S Industrial Manual Chain Block in 2t is a hand operated hoist for vertical lifts on monorails, jibs, fixed installations and maintenance work. This size runs a single fall of 8mm x 24mm G80 calibrated load chain with a 6m standard lift, and it takes 335kg of effort on the hand chain to move the full 2t. Green colour coded, 23.6kg net, 470mm headroom and 175mm x 210mm across the body.
Cast steel housing, gear case and reinforced side covers handle knocks on site. Top and bottom hooks run on ball bearings and carry safety catches, and the double pawl with double roller guide keeps the chain feeding cleanly into the wheel sprocket. ID plates and rivets are stainless steel to avoid sparking. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Every block carries a serial number tied to its test certificate. Use it for straight vertical lifting only, since side loading can jam the chain.
Common questions
- what is the lifting height on the beaver 3s 2t chain block
- It comes with a 6m standard lift. Headroom is 470mm with the single fall of chain.
- how much effort to lift 2 tonne with a manual chain block
- This 2t Beaver 3S needs 335kg of effort on the hand chain to lift the full rated load.
- can you side load a chain block
- No. These are for vertical lifts only, as side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 503056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 503106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 503206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 503306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 503506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 503606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 503056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 503106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 503206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 503306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 503506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 503606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
