Beaver 3S Industrial Manual Chain Blocks (1.5-3m Standard Lift) 2t
503203per Each
$367.63 inc GSTTrade $330.87, save $36.76Trade accounts save 10%. Apply with your ABN
| A | 175mm |
| B | 210mm |
| C | 36mm |
| H | 470mm |
| Net Weight | 19.5kg |
| Colour Code | Green |
| Standard Lift | 3m |
| Rated Capacity | 2t |
| Load Chain Diameter | 8mm x 24mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 335kg |
About this product

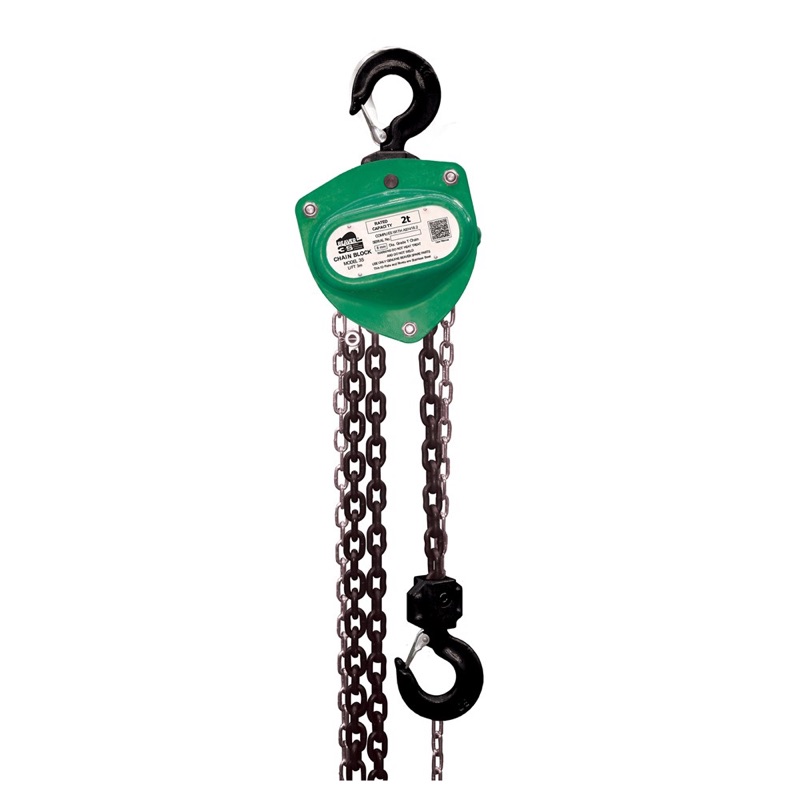

The Beaver 3S Industrial Manual Chain Block in 2t is a hand operated hoist for vertical lifting on monorails, jibs, fixed installations and maintenance work. This size runs a single fall of 8mm x 24mm G80 calibrated load chain over a 3m standard lift, and it takes 335kg of effort on the hand chain to raise a full load. Green colour coding marks it as the 2t in the range, and at 19.5kg it is still a two-hand carry to the job.
Cast steel body, gear case and reinforced side covers handle knocks on site. A double pawl and double roller guide keep the chain tracking, and the curling design feeds the hand chain straight into the wheel sprocket. Top and bottom hooks run ball bearings and safety catches. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077. Use it for vertical lifts only.
Common questions
- what is the lift height on the beaver 3s 2t chain block
- Standard lift is 3m on a single fall of chain. The 2t model uses 8mm x 24mm G80 calibrated load chain.
- can you side load a beaver chain block
- No. These blocks are for vertical lifts only, and side loading or horizontal use can jam the load chain and damage the block.
- how much effort to lift 2 tonnes with this block
- Around 335kg of effort on the hand chain to lift the full 2t rated capacity.
- what standard does the beaver 3s chain block comply with
- It complies to AS/NZS 1418.2, and the Grade 80 calibrated chain is marked according to ISO 3077.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 503053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 503103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 503203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 503303 | 3t | Yellow | 3m | 265kg | 2 | 8mm x 24mm |
| 503503 | 5t | Red | 3m | 360kg | 2 | 9mm x 30mm |
| 503603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 503053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 503103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 503203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 503303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 503503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 503603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
