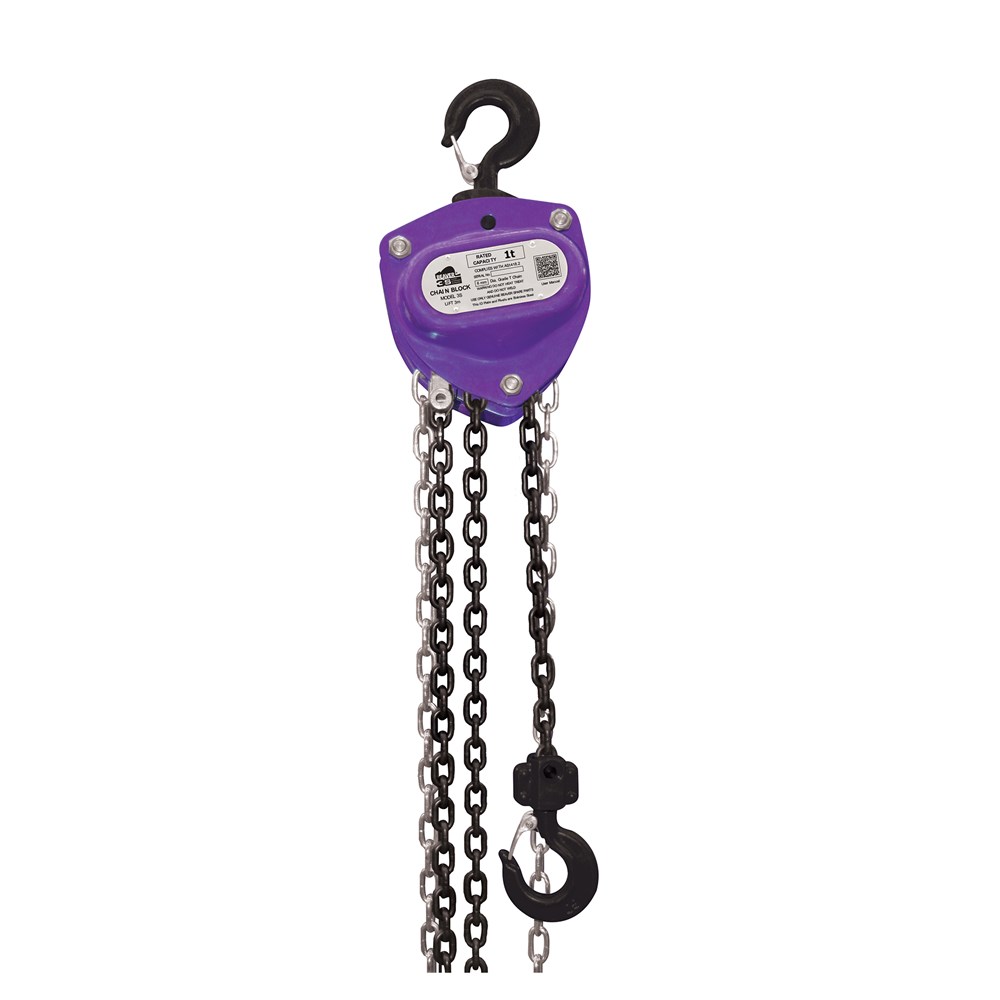

Beaver 3S Industrial Manual Chain Blocks (6m Standard Lift) 1t
503106per Each
$250.57 inc GSTTrade $225.51, save $25.06Trade accounts save 10%. Apply with your ABN
| A | 151mm |
| B | 172mm |
| C | 32mm |
| H | 376mm |
| Net Weight | 14.8kg |
| Colour Code | Violet |
| Standard Lift | 6m |
| Rated Capacity | 1t |
| Load Chain Diameter | 6mm x 18mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 250kg |
About this product
The Beaver 3S Industrial Manual Chain Block in 1t is the lightest size in the range, handy for maintenance lifts where you are moving the block around by hand. Net weight is 14.8kg and the single fall of 6mm x 18mm G80 calibrated load chain gives a 6m standard lift. It takes about 250kg of effort on the lever to lift the full load. Violet colour coding marks the 1t rating at a glance.
Built with a cast steel body, gear case and reinforced side covers, plus a double pawl and double roller guide. Top and bottom hooks run on ball bearings and carry safety catches. Stainless steel ID plates and rivets help avoid sparking. Suits monorails, jibs and fixed installations. Vertical lifts only, side loading can jam the chain. Complies to AS/NZS 1418.2, with Grade 80 calibrated chain marked according to ISO 3077.
Common questions
- how much can a 1t Beaver 3S chain block lift
- Rated capacity is 1t on a single fall of 6mm x 18mm G80 calibrated load chain. It is for vertical lifts only.
- what is the standard lift height on the Beaver 3S 1t chain block
- Standard lift is 6m. Headroom dimension H is 376mm, with a body 151mm wide and 172mm deep.
- can you side load a Beaver 3S chain block
- No. These blocks are for vertical lifting only, and side loading or horizontal use can jam the load chain and damage the block.
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 503056 | 0.5t | White | 6m | 240kg | 1 | 5mm x 15mm |
| 503106 | 1t | Violet | 6m | 250kg | 1 | 6mm x 18mm |
| 503206 | 2t | Green | 6m | 335kg | 1 | 8mm x 24mm |
| 503306 | 3t | Yellow | 6m | 335kg | 2 | 8mm x 24mm |
| 503506 | 5t | Red | 6m | 363kg | 2 | 9mm x 30mm |
| 503606 | 10t | Orange | 6m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 503056 | 0.5t | 132mm | 148mm | 28mm | 345mm | 12.6kg |
| 503106 | 1t | 151mm | 172mm | 32mm | 376mm | 14.8kg |
| 503206 | 2t | 175mm | 210mm | 36mm | 470mm | 23.6kg |
| 503306 | 3t | 176mm | 230mm | 46mm | 565mm | 37.2kg |
| 503506 | 5t | 189mm | 280mm | 46mm | 688mm | 54.5kg |
| 503606 | 10t | 189mm | 463mm | 57mm | 765mm | 104.9kg |
