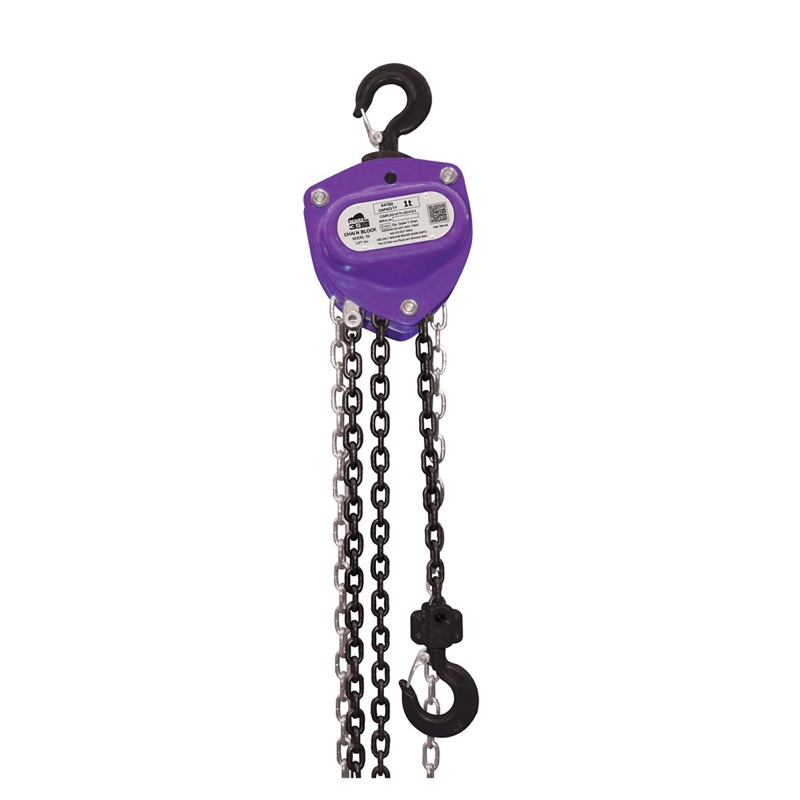

Beaver 3S Industrial Manual Chain Blocks (1.5-3m Standard Lift) 1t
503103per Each
$178.39 Trade inc GST$198.21 without a trade accountTrade accounts save 10% — apply with your ABN
| A | 151mm |
| B | 172mm |
| C | 32mm |
| H | 376mm |
| Net Weight | 12.5kg |
| Colour Code | Violet |
| Standard Lift | 3m |
| Rated Capacity | 1t |
| Load Chain Diameter | 6mm x 18mm |
| No. Load Chain Falls | 1 |
| Effort on Lever to Lift Full Load | 250kg |
Full specifications
| Product Code | Rated Capacity | Colour Code | Standard Lift | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
|---|---|---|---|---|---|---|
| 503053 | 0.5t | White | 3m | 240kg | 1 | 5mm x 15mm |
| 503103 | 1t | Violet | 3m | 250kg | 1 | 6mm x 18mm |
| 503203 | 2t | Green | 3m | 335kg | 1 | 8mm x 24mm |
| 503303 | 3t | Yellow | 3m | 265kg | 2 | 8mm x 24mm |
| 503503 | 5t | Red | 3m | 360kg | 2 | 9mm x 30mm |
| 503603 | 10t | Orange | 3m | 380kg | 4 | 9mm x 30mm |
| Product Code | Rated Capacity | A | B | C | H | Net Weight |
|---|---|---|---|---|---|---|
| 503053 | 0.5t | 132mm | 148mm | 28mm | 345mm | 11kg |
| 503103 | 1t | 151mm | 172mm | 32mm | 376mm | 12.5kg |
| 503203 | 2t | 175mm | 210mm | 36mm | 470mm | 19.5kg |
| 503303 | 3t | 176mm | 230mm | 46mm | 565mm | 29kg |
| 503503 | 5t | 189mm | 280mm | 46mm | 688mm | 41.3kg |
| 503603 | 10t | 189mm | 463mm | 57mm | 765mm | 78.5kg |
