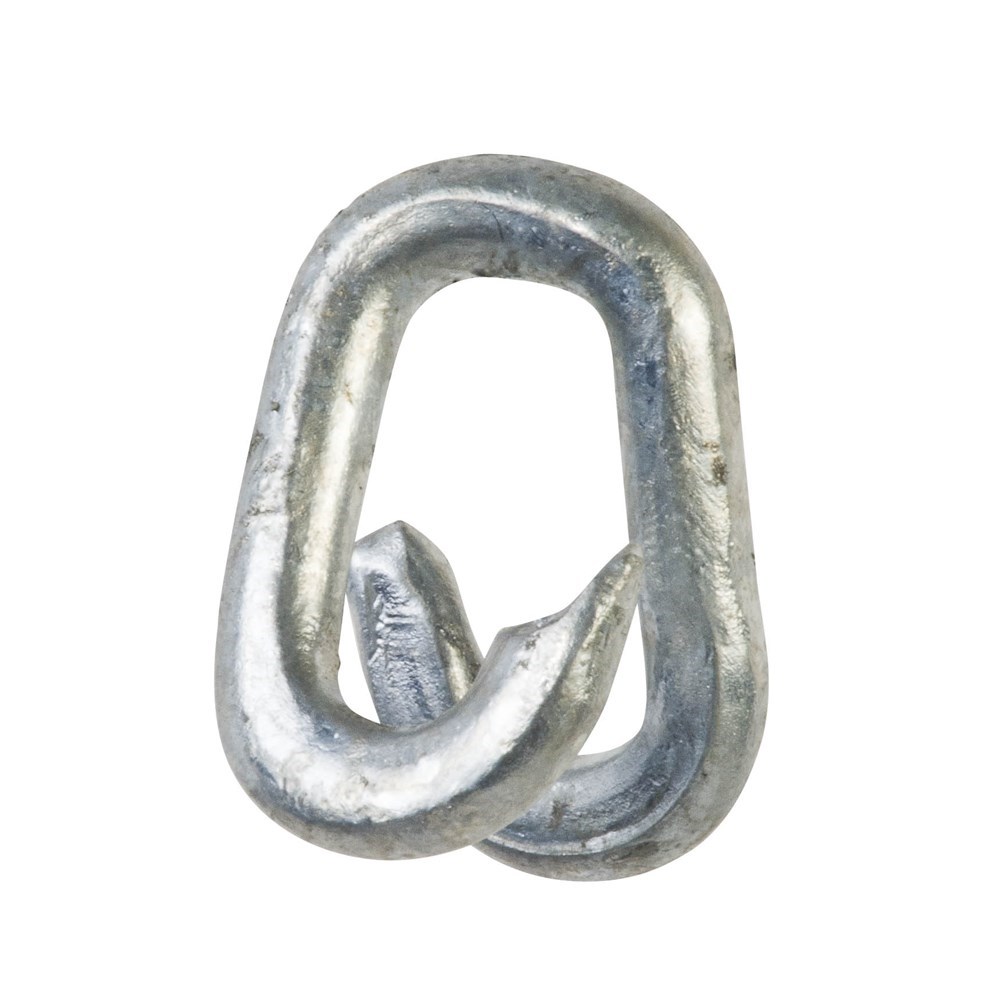

Beaver Chain Split Links 13mm x Hot Dipped Galvanised
420313per Each
$4.19 inc GSTTrade $3.77, save $0.42Trade accounts save 10%. Apply with your ABN
| Finish | Hot Dipped Galvanised |
| Weight | 0.23kg |
| Size (mm) | 13mm |
| Thickness | 13mm |
About this product
The Beaver Chain Split Links 13mm x Hot Dipped Galvanised is a simple connector for joining two lengths of chain or repairing a damaged run without pulling the whole lot out of service. At 13mm thickness it suits heavier chain work, and it weighs in at 0.23kg. You fit it over the end links, then hammer it down or tack weld it closed so it stays put.
The hot dipped galvanised finish gives it a thicker coating than the electro galvanised option, which helps where the chain lives outdoors or gets wet. Handy to keep a few in the ute or the workshop drawer for quick fixes. This link is not a lifting component, so keep it to chain that is doing general duty work, and check the closure before the chain goes back into use.
Common questions
- what size chain does a 13mm split link fit
- This link is 13mm thick, so it is sized to match 13mm chain. Check the range if you need a different size, there are 12 sizes available.
- how do you close a chain split link
- Hammer it down flat over the chain link, or tack weld it to lock it in place. Either way, make sure it is fully closed before the chain is used.
- hot dipped vs electro galvanised split links
- Both finishes give protection against rust and corrosion. Hot dipped galvanised carries a heavier coating, which is the better pick for chain that is exposed to weather.
Full specifications
| Product Code | Size (mm) | Finish | Weight |
|---|---|---|---|
| 420103 | 3.5mm | Electro Galvanised | 0.0041kg |
| 420303 | 3.5mm | Hot Dipped Galvanised | 0.0041kg |
| 420105 | 5mm | Electro Galvanised | 0.0172kg |
| 420305 | 5mm | Hot Dipped Galvanised | 0.0172kg |
| 420106 | 6mm | Electro Galvanised | 0.03kg |
| 420306 | 6mm | Hot Dipped Galvanised | 0.03kg |
| 420108 | 8mm | Electro Galvanised | 0.069kg |
| 420308 | 8mm | Hot Dipped Galvanised | 0.069kg |
| 420110 | 10mm | Electro Galvanised | 0.12kg |
| 420310 | 10mm | Hot Dipped Galvanised | 0.12kg |
| 420113 | 13mm | Electro Galvanised | 0.23kg |
| 420313 | 13mm | Hot Dipped Galvanised | 0.23kg |
