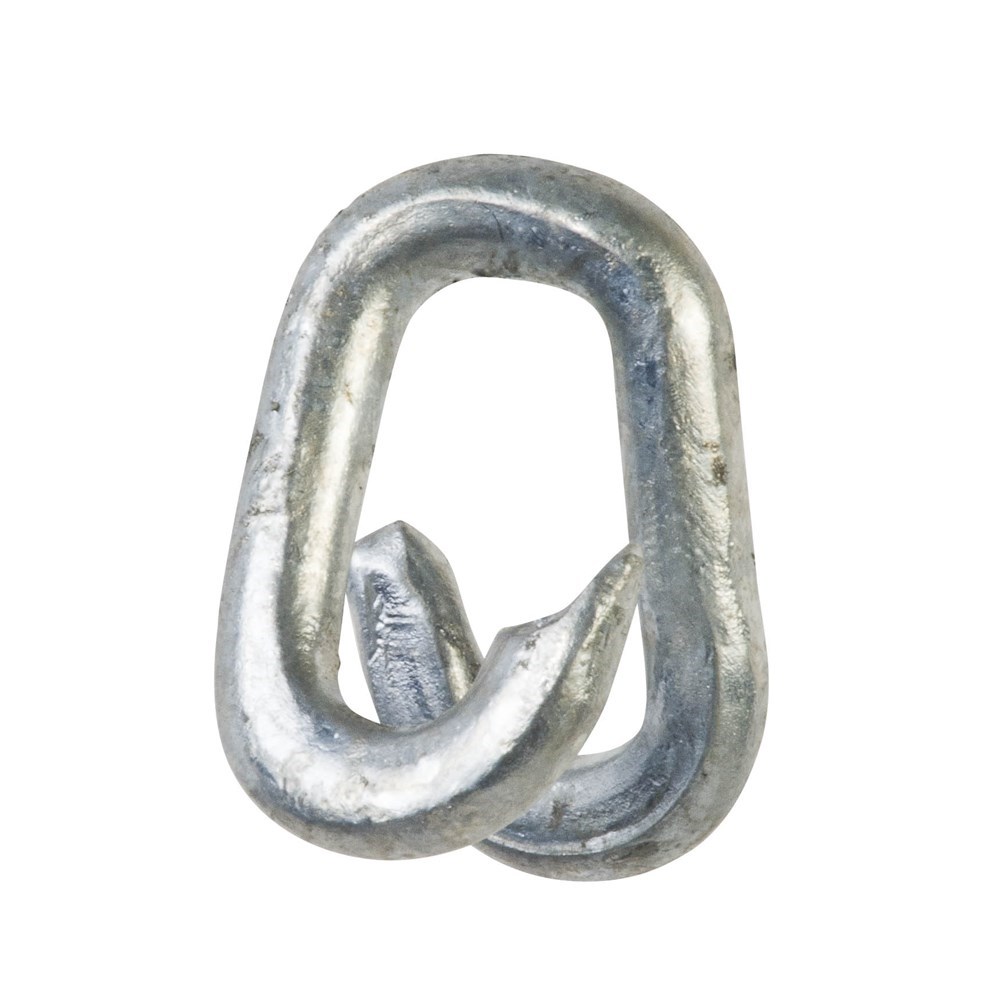

Beaver Chain Split Links 6mm x Hot Dipped Galvanised
420306per Each
$0.63 inc GSTTrade $0.57, save $0.06Trade accounts save 10%. Apply with your ABN
| Finish | Hot Dipped Galvanised |
| Weight | 0.03kg |
| Size (mm) | 6mm |
| Thickness | 6mm |
About this product
The Beaver Chain Split Links 6mm x Hot Dipped Galvanised is a simple connector for joining two lengths of chain or patching a damaged run. The 6mm thickness suits lighter chain work where a full connecting link is more than the job needs, and at 0.03kg each one adds almost nothing to the assembly. Fit it by hand, then close it up.
Closing is done either by hammering the link down or running a tack weld across it. The hot dipped galvanised coating gives the link a heavier barrier against rust and corrosion than electro galvanised, which makes it the better pick for outdoor yards, wash-down areas and coastal sites. Worth noting these are for chain joining and repair, not a rated lifting component.
Common questions
- how do you close a chain split link
- Hammer the link down over the chain, or tack weld it closed. Either method locks it in place once it is fitted.
- what is the difference between hot dip and electro galvanised split links
- Both finishes protect against rust and corrosion. Hot dipped galvanised, like this 6mm link, carries a heavier coating, so it holds up better in wet or exposed conditions.
- what size chain does a 6mm split link suit
- This link is 6mm thick and is sized to match 6mm chain. Beaver Chain Split Links come in 12 sizes if you need a different thickness.
Full specifications
| Product Code | Size (mm) | Finish | Weight |
|---|---|---|---|
| 420103 | 3.5mm | Electro Galvanised | 0.0041kg |
| 420303 | 3.5mm | Hot Dipped Galvanised | 0.0041kg |
| 420105 | 5mm | Electro Galvanised | 0.0172kg |
| 420305 | 5mm | Hot Dipped Galvanised | 0.0172kg |
| 420106 | 6mm | Electro Galvanised | 0.03kg |
| 420306 | 6mm | Hot Dipped Galvanised | 0.03kg |
| 420108 | 8mm | Electro Galvanised | 0.069kg |
| 420308 | 8mm | Hot Dipped Galvanised | 0.069kg |
| 420110 | 10mm | Electro Galvanised | 0.12kg |
| 420310 | 10mm | Hot Dipped Galvanised | 0.12kg |
| 420113 | 13mm | Electro Galvanised | 0.23kg |
| 420313 | 13mm | Hot Dipped Galvanised | 0.23kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
