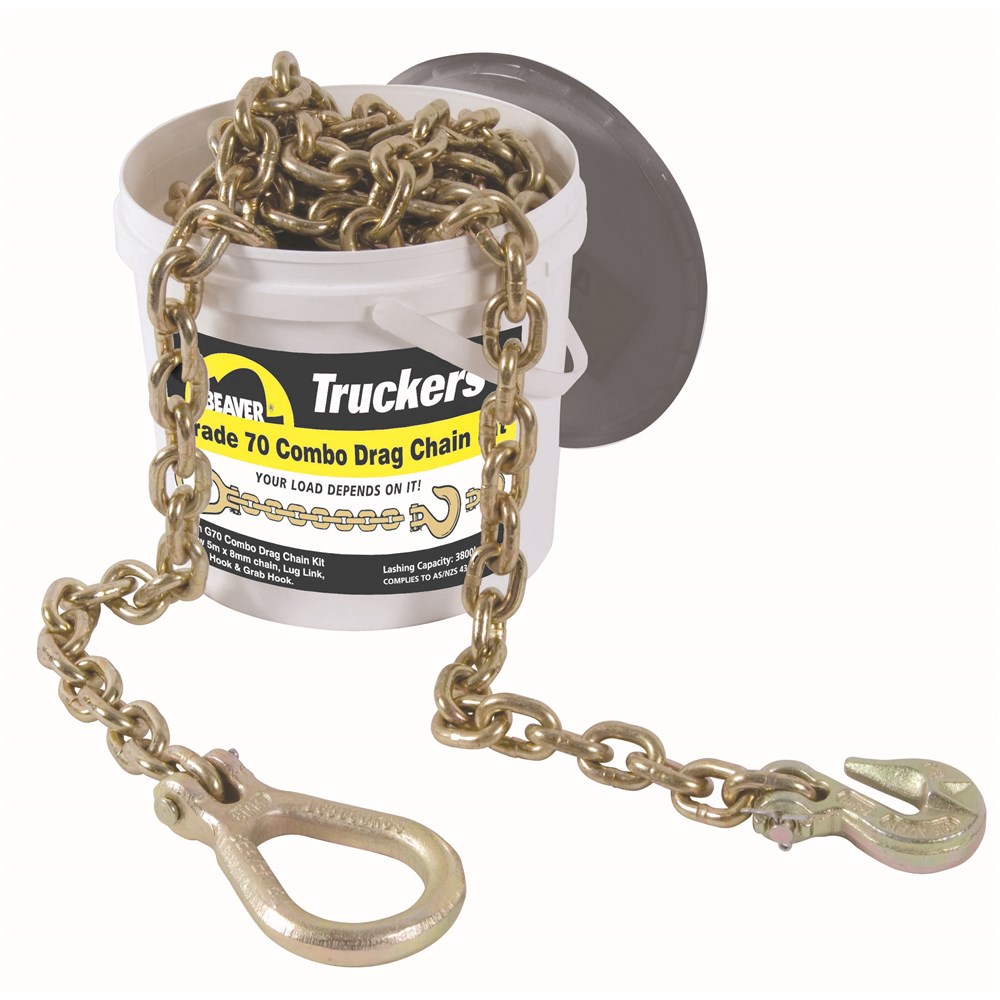

Beaver G70 Gold Drag Chain Kit with Lug Link and Grab Hook 13mm
410013per Each
$229.50 inc GSTTrade $206.55, save $22.95Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| LC (kg) | 9000kg |
| Chain Size | 13mm |
| Weight (kg) | 20.78 |
| Chain Size (mm) | 13 |
| Chain Length (m) | 5 |
| Chain Part Number | 145013 |
| Lug Link Part Number | 353013 |
| Grab Hook Part Number | 354013 |
About this product
The Beaver G70 Gold Drag Chain Kit with Lug Link and Grab Hook 13mm is a load restraint assembly for tying down heavy plant and steel on trucks and floats. At 13mm it is the heavy end of the range, with a lashing capacity of 9000kg across a 5m length, so it suits excavators, dozers and other gear that pushes past what 8mm and 10mm chain can hold. The kit comes ready to work: chain part 145013, lug link 353013 and grab hook 354013.
Chain and fittings are heat treated carbon steel, finished in zinc di-chromate for that gold look that is easy to pick out on a deck from a distance. Everything is stamped Grade 70 with the lashing capacity and chain size, so a load inspector can read it at a glance. Made to AS/NZS 4344. The assembly weighs 20.78kg, worth knowing when you are handling it over a tray all day.
Common questions
- what is the lashing capacity of 13mm g70 chain
- This kit is rated at 9000kg lashing capacity. The figure is stamped on the chain and fittings along with the Grade 70 marking and chain size.
- how long is the beaver 13mm drag chain kit
- The chain length is 5m, supplied with a lug link and grab hook fitted. Total assembly weight is 20.78kg.
- why is beaver g70 chain gold
- The gold colour comes from a zinc di-chromate plating, which makes the chain easy to identify as Grade 70 from a distance on a loaded deck.
Full specifications
| Product Code | Chain Size (mm) | Chain Length (m) | Chain Part Number | Grab Hook Part Number | Lug Link Part Number | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|
| 410008 | 8 | 5 | 145008 | 354008 | 353008 | 3800kg | 8.03 | Each |
| 410010 | 10 | 5 | 145010 | 354010 | 353010 | 6000kg | 12.2 | Each |
| 410013 | 13 | 5 | 145013 | 354013 | 353013 | 9000kg | 20.78 | Each |
