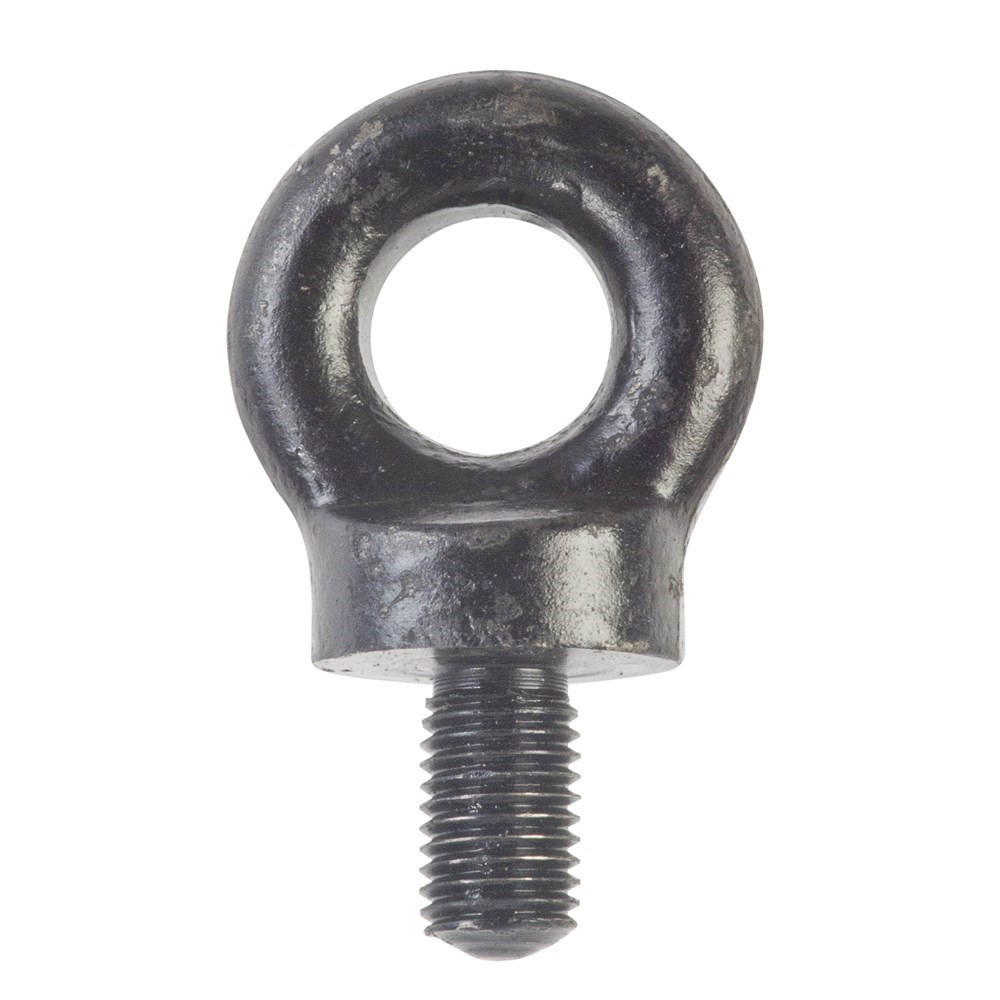

Beaver Lifting Collared Eyebolts with UNC Thread 1-1/4"
360032per Each
$282.05 inc GSTTrade $253.85, save $28.20Trade accounts save 10%. Apply with your ABN
| W | 106 |
| D1 | 48 |
| D2 | 31.75 |
| D3 | 29 |
| D4 | 72 |
| H1 | 28 |
| H2 | 117 |
| WLL | 5t |
| Finish | Self Colour |
| Weight | 2.37kg |
| Thread Size | 1-1/4" |
| Size (inches) | 1-1/4" |
| Transverse Load Tonne | 1.25 |
About this product
The Beaver Lifting Collared Eyebolt with UNC Thread 1-1/4" is a threaded lifting point you screw into a machined and tapped hole, giving you a rated attachment for hooks, shackles or slings. This is the largest pull in the UNC range at 5t working load limit straight line, with 1.25t allowed on a transverse load once the collar is seated hard against the mating face. It complies to AS 2317.
Dimensions run to a 48mm eye diameter, a 72mm collar, 28mm collar height and 117mm overall height, with a 106mm width across the eye. Weight is 2.37kg, so it is a two hand fit on most jobs. The finish is self colour, meaning no coating to hide damage, though it does mean you should keep an eye on corrosion. Check the thread and eye for wear, bending or stretch before every lift.
Common questions
- what is the WLL of a 1-1/4 UNC collared eyebolt
- This size is rated to 5t working load limit for in line lifting, and 1.25t for transverse loading. The collar has to be pulled down tight against the surface for the transverse rating to apply.
- does the beaver collared eyebolt meet australian standards
- Yes, this collared eyebolt complies to AS 2317.
- what does self colour finish mean on an eyebolt
- Self colour means the steel is left uncoated, with no galvanising or paint. Any damage or wear is easy to spot, but you need to watch for corrosion in wet or wash down areas.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 360010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.06kg |
| 360012 | 1/2" | 0.4t | 0.1 | Self Colour | 0.15kg |
| 360016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.27kg |
| 360019 | 3/4" | 1.4t | 0.4 | Self Colour | 0.54kg |
| 360022 | 7/8" | 2t | 0.5 | Self Colour | 0.85kg |
| 360025 | 1" | 2.5t | 0.62 | Self Colour | 1.13kg |
| 360032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.37kg |
| 360038 | 1-1/42" | 7t | 1.75 | Self Colour | 3.12kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 360010 | 3/8" | 33 | 9 | 36 | 15 | 9.53 | 9 | 22 |
| 360012 | 1/2" | 44 | 11 | 48 | 20 | 12.7 | 11 | 28 |
| 360016 | 5/8" | 52 | 14 | 58 | 24 | 15.88 | 14 | 36 |
| 360019 | 3/4" | 66 | 17 | 73 | 30 | 19.05 | 18 | 45 |
| 360022 | 7/8" | 77 | 20 | 84 | 35 | 22.23 | 21 | 52 |
| 360025 | 1" | 85 | 22 | 94 | 39 | 25.4 | 23 | 58 |
| 360032 | 1-1/4" | 106 | 28 | 117 | 48 | 31.75 | 29 | 72 |
| 360038 | 1-1/2" | 118 | 33 | 131 | 54 | 38.1 | 32 | 81 |
Questions about this equipment? Send us a message and we’ll check it against the job.
