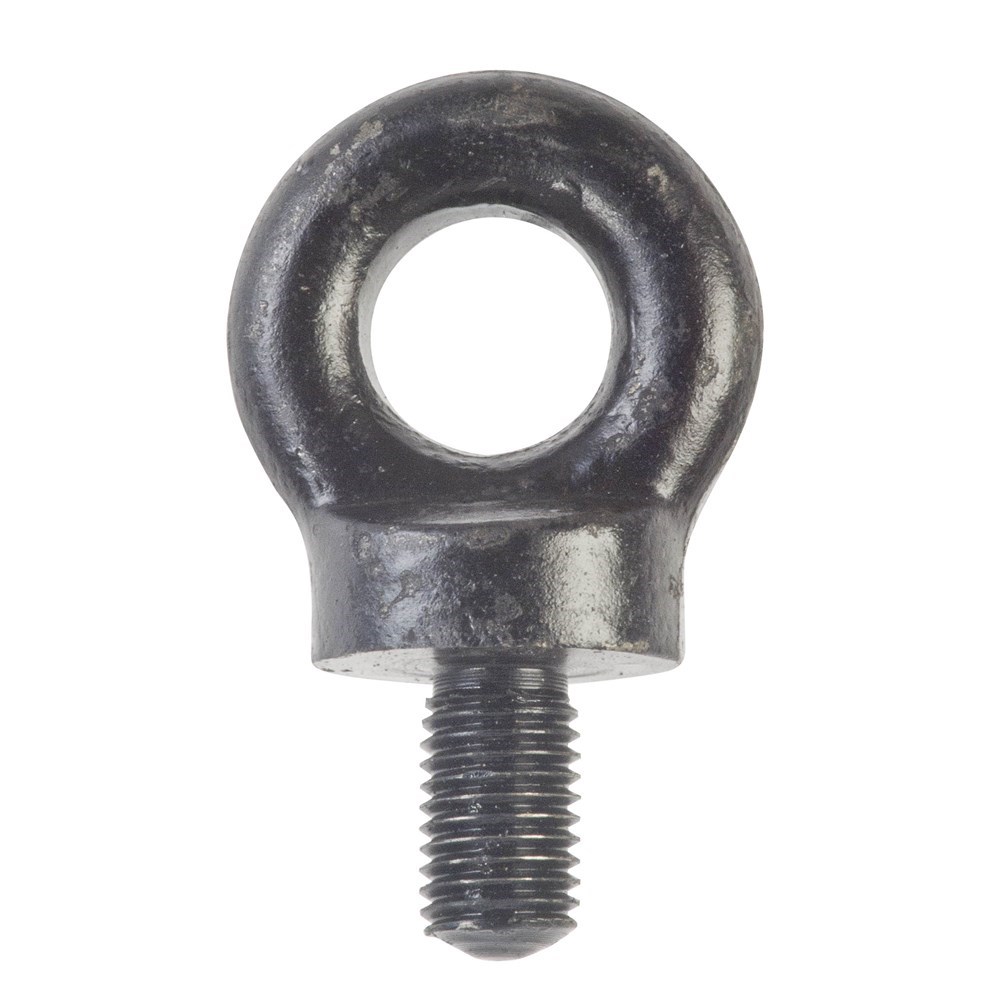

Beaver Lifting Collared Eyebolts with UNC Thread 1"
360025per Each
$26.35 inc GSTTrade $23.72, save $2.63Trade accounts save 10%. Apply with your ABN
| W | 85 |
| D1 | 39 |
| D2 | 25.4 |
| D3 | 23 |
| D4 | 58 |
| H1 | 22 |
| H2 | 94 |
| WLL | 2.5t |
| Finish | Self Colour |
| Weight | 1.13kg |
| Thread Size | 1" |
| Size (inches) | 1" |
| Transverse Load Tonne | 0.62 |
About this product
The Beaver Lifting Collared Eyebolt with UNC Thread 1" is a threaded lifting point you screw into a machined hole or tapped boss to give a load a proper attachment for the hook. This size carries a 2.5t working load limit in a straight vertical pull, and 0.62 tonne when loaded transversely, so it sits toward the heavier end of the UNC range. The collar seats flush against the face of the load and takes the side loading the shank on its own would not.
Dimensions run 85mm across the eye with a 94mm overall height, a 25.4mm shank diameter and 22mm collar depth. It weighs 1.13kg, finished in self colour. This collared eyebolt complies to AS 2317. Before every lift, check the thread engages fully and the collar pulls up tight against the load, and keep the eye in line with the direction of pull.
Common questions
- what is the WLL of a 1 inch collared eyebolt
- This 1" UNC Beaver collared eyebolt is rated at a 2.5t working load limit for vertical lifting. Transverse loading drops it to 0.62 tonne.
- does the beaver collared eyebolt meet australian standards
- Yes, this collared eyebolt complies to AS 2317.
- what thread does this eyebolt have and what size is the shank
- It has a 1" UNC thread with a 25.4mm shank diameter and a 22mm collar depth, so the tapped hole needs to suit UNC, not metric or BSW.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 360010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.06kg |
| 360012 | 1/2" | 0.4t | 0.1 | Self Colour | 0.15kg |
| 360016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.27kg |
| 360019 | 3/4" | 1.4t | 0.4 | Self Colour | 0.54kg |
| 360022 | 7/8" | 2t | 0.5 | Self Colour | 0.85kg |
| 360025 | 1" | 2.5t | 0.62 | Self Colour | 1.13kg |
| 360032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.37kg |
| 360038 | 1-1/42" | 7t | 1.75 | Self Colour | 3.12kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 360010 | 3/8" | 33 | 9 | 36 | 15 | 9.53 | 9 | 22 |
| 360012 | 1/2" | 44 | 11 | 48 | 20 | 12.7 | 11 | 28 |
| 360016 | 5/8" | 52 | 14 | 58 | 24 | 15.88 | 14 | 36 |
| 360019 | 3/4" | 66 | 17 | 73 | 30 | 19.05 | 18 | 45 |
| 360022 | 7/8" | 77 | 20 | 84 | 35 | 22.23 | 21 | 52 |
| 360025 | 1" | 85 | 22 | 94 | 39 | 25.4 | 23 | 58 |
| 360032 | 1-1/4" | 106 | 28 | 117 | 48 | 31.75 | 29 | 72 |
| 360038 | 1-1/2" | 118 | 33 | 131 | 54 | 38.1 | 32 | 81 |
