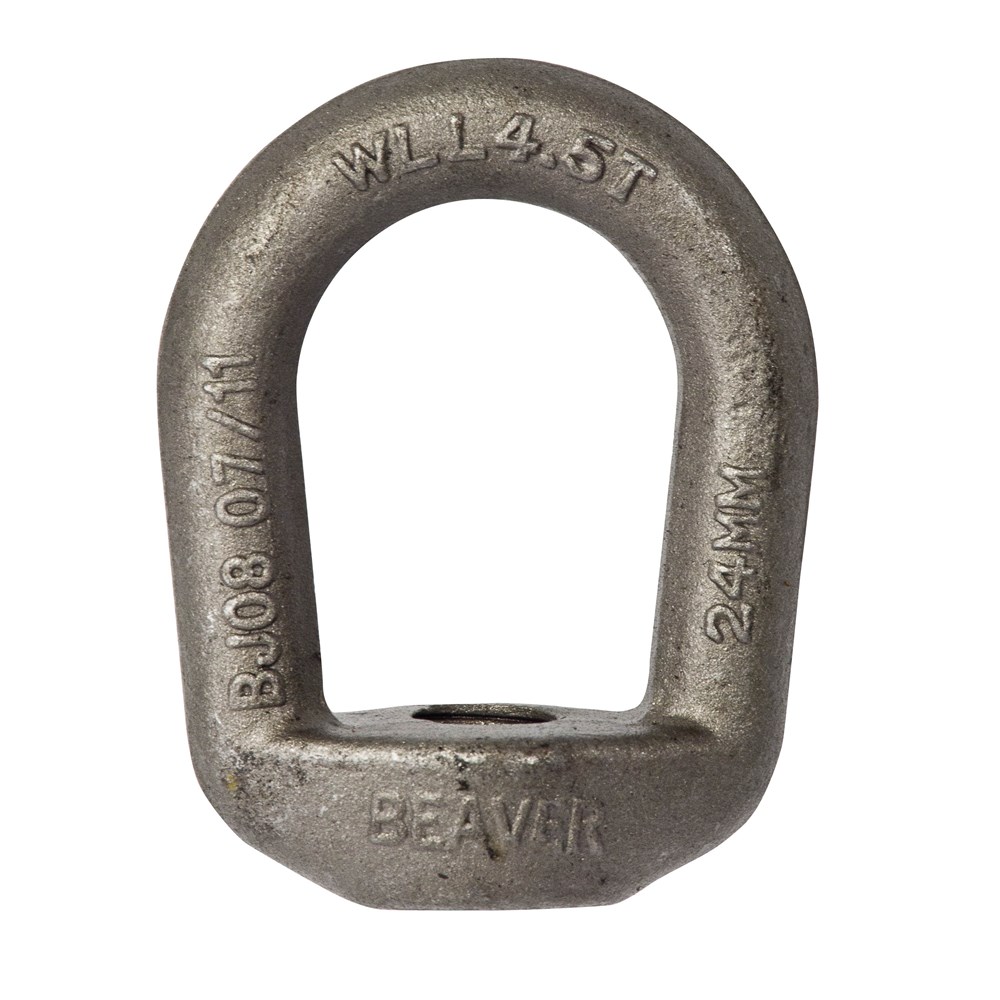

Beaver Lifting Eye Nut with Metric Thread 24mm
360024per Each
$26.77 inc GSTTrade $24.09, save $2.68Trade accounts save 10%. Apply with your ABN
| WLL | 4.5t |
| Finish | Self Colour |
| Weight | 1.47kg |
| Size (mm) | 24mm |
| Thread Size | 24mm |
About this product
The Beaver Lifting Eye Nut with Metric Thread 24mm gives you a screw-on lifting point on any component with a matching 24mm metric male thread. It is rated to a 4.5t working load limit, which makes this the heavier end of the eye nut family and a sensible pick for machinery housings, dies, and fabricated items that need a proper attachment point rather than a makeshift one.
Finished in self colour and weighing 1.47kg, it threads down flush against the load face so the eye takes the pull squarely. Beaver eyebolts and eyenuts are made for lifting work, and are available across BSW, UNC and metric threads, so check the thread on your equipment before ordering. Wind it fully home, keep the seat clean, and pull in line with the eye.
Common questions
- what is the WLL of a 24mm eye nut
- This Beaver eye nut has a working load limit of 4.5t. Keep the pull in line with the eye and rate your sling and fittings to suit.
- beaver eye nut 24mm thread size and weight
- It has a 24mm metric thread and weighs 1.47kg.
- do beaver eye nuts come in imperial threads
- Yes. Beaver lifting eyebolts and eyenuts are available in BSW, UNC and metric threads. This one is the 24mm metric version.
Full specifications
| Product Code | Size (mm) | WLL | Finish | Weight |
|---|---|---|---|---|
| 360024 | 24mm | 4.5t | Self Colour | 1.47kg |
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 77mm | 126mm | 47.5mm | 22mm | 89mm | 24mm | 53mm |
