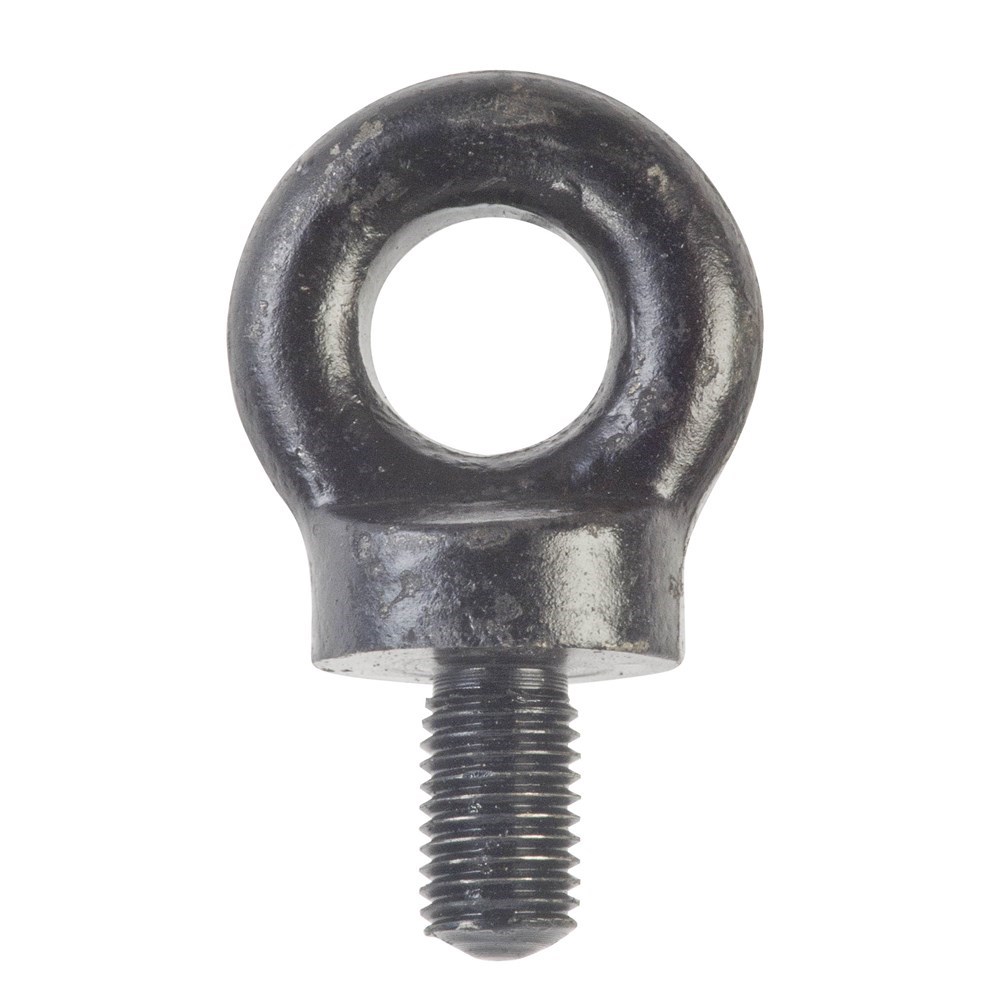

Beaver Lifting Collared Eyebolts with UNC Thread 7/8"
360022per Each
$19.70 inc GSTTrade $17.73, save $1.97Trade accounts save 10%. Apply with your ABN
| W | 77 |
| D1 | 35 |
| D2 | 22.23 |
| D3 | 21 |
| D4 | 52 |
| H1 | 20 |
| H2 | 84 |
| WLL | 2t |
| Finish | Self Colour |
| Weight | 0.85kg |
| Thread Size | 7/8" |
| Size (inches) | 7/8" |
| Transverse Load Tonne | 0.5 |
About this product
The Beaver Lifting Collared Eyebolt with UNC Thread 7/8" is a screw-in lifting point for machinery, dies, moulds and fabricated items that need a rated attachment. This size carries a 2t working load limit with the 7/8" UNC thread, sitting in the middle of the range where most general workshop and plant lifts land. The collar seats flush against the mounting face, so the eye can take angled loading up to 0.5t transverse rather than vertical pull only.
Dimensions are 77mm across the eye, 84mm overall height and a 35mm eye diameter, at a weight of 0.85kg. The finish is self colour, which suits indoor and dry site work, so keep an eye on it if it lives outside. This collared eyebolt complies to AS 2317. Check the thread and tapped hole are clean and fully engaged before every lift.
Common questions
- what is the WLL of a 7/8" collared eyebolt
- This Beaver 7/8" UNC collared eyebolt has a working load limit of 2t in line pull, and 0.5t when loaded transversely.
- can you side load a collared eyebolt
- Yes, the collar is designed to take angled loading, with a transverse rating of 0.5t on this 7/8" size. Plain eyebolts without a collar should only be loaded in line.
- does the beaver collared eyebolt come galvanised
- This one is supplied in self colour, not galvanised, so it is better suited to drier conditions and needs a look over for corrosion if it is used outdoors.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 360010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.06kg |
| 360012 | 1/2" | 0.4t | 0.1 | Self Colour | 0.15kg |
| 360016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.27kg |
| 360019 | 3/4" | 1.4t | 0.4 | Self Colour | 0.54kg |
| 360022 | 7/8" | 2t | 0.5 | Self Colour | 0.85kg |
| 360025 | 1" | 2.5t | 0.62 | Self Colour | 1.13kg |
| 360032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.37kg |
| 360038 | 1-1/42" | 7t | 1.75 | Self Colour | 3.12kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 360010 | 3/8" | 33 | 9 | 36 | 15 | 9.53 | 9 | 22 |
| 360012 | 1/2" | 44 | 11 | 48 | 20 | 12.7 | 11 | 28 |
| 360016 | 5/8" | 52 | 14 | 58 | 24 | 15.88 | 14 | 36 |
| 360019 | 3/4" | 66 | 17 | 73 | 30 | 19.05 | 18 | 45 |
| 360022 | 7/8" | 77 | 20 | 84 | 35 | 22.23 | 21 | 52 |
| 360025 | 1" | 85 | 22 | 94 | 39 | 25.4 | 23 | 58 |
| 360032 | 1-1/4" | 106 | 28 | 117 | 48 | 31.75 | 29 | 72 |
| 360038 | 1-1/2" | 118 | 33 | 131 | 54 | 38.1 | 32 | 81 |
Questions about this equipment? Send us a message and we’ll check it against the job.
