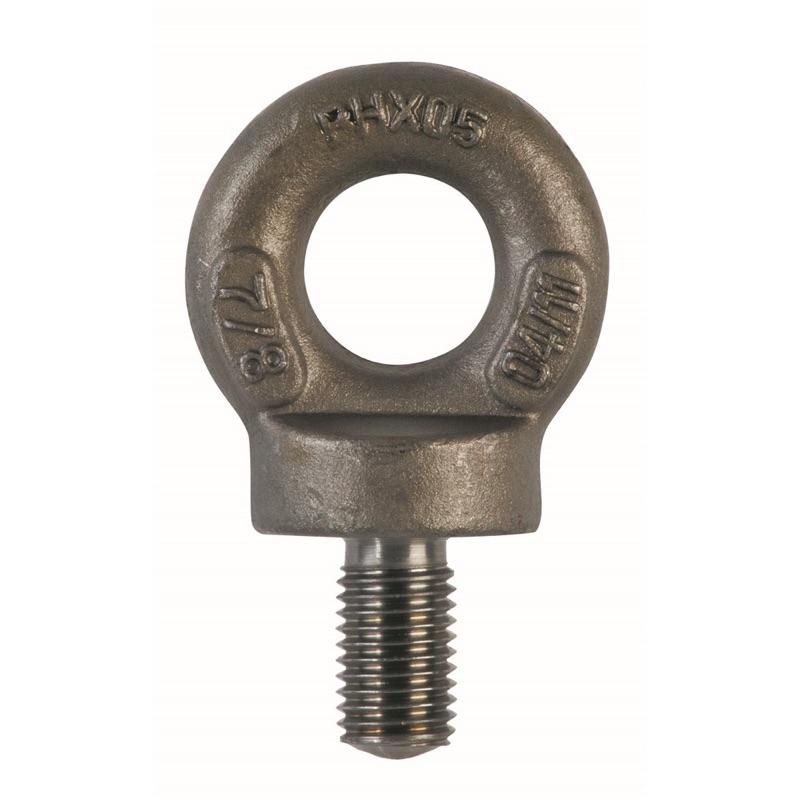

Beaver Lifting Collared Eyebolts with UNC Thread 3/4"
360019per Each
$13.72 inc GSTTrade $12.35, save $1.37Trade accounts save 10%. Apply with your ABN
| W | 66 |
| D1 | 30 |
| D2 | 19.05 |
| D3 | 18 |
| D4 | 45 |
| H1 | 17 |
| H2 | 73 |
| WLL | 1.4t |
| Finish | Self Colour |
| Weight | 0.54kg |
| Thread Size | 3/4" |
| Size (inches) | 3/4" |
| Transverse Load Tonne | 0.4 |
About this product
The Beaver Lifting Collared Eyebolt with UNC Thread 3/4" is a screw-in lifting point for machinery, dies, moulds and fabricated items that need a rated attachment. This size carries a working load limit of 1.4t in line with the thread, with 0.4t allowed for transverse loading once the collar is seated hard against the mating face. It complies to AS 2317.
Thread diameter is 19.05mm on a 3/4" UNC form, with an 18mm shank length, a 45mm collar and a 30mm eye. Overall height runs 73mm and the eye width is 66mm, at 0.54kg. The finish is self colour, so keep an eye on it in wet or washdown work and check the thread and eye for damage before every lift. Larger and smaller threads in the range suit different tapped holes.
Common questions
- what is the WLL of a 3/4 UNC collared eyebolt
- 1.4t when loaded in line with the thread. Transverse loading is limited to 0.4t, and the collar must be pulled down tight against the mating surface.
- do beaver collared eyebolts meet australian standards
- Yes, this collared eyebolt complies to AS 2317.
- what thread and hole size does the 3/4 inch eyebolt need
- It has a 3/4" UNC thread at 19.05mm diameter with an 18mm shank, so the tapped hole needs to match that thread form and give full engagement.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 360010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.06kg |
| 360012 | 1/2" | 0.4t | 0.1 | Self Colour | 0.15kg |
| 360016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.27kg |
| 360019 | 3/4" | 1.4t | 0.4 | Self Colour | 0.54kg |
| 360022 | 7/8" | 2t | 0.5 | Self Colour | 0.85kg |
| 360025 | 1" | 2.5t | 0.62 | Self Colour | 1.13kg |
| 360032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.37kg |
| 360038 | 1-1/42" | 7t | 1.75 | Self Colour | 3.12kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 360010 | 3/8" | 33 | 9 | 36 | 15 | 9.53 | 9 | 22 |
| 360012 | 1/2" | 44 | 11 | 48 | 20 | 12.7 | 11 | 28 |
| 360016 | 5/8" | 52 | 14 | 58 | 24 | 15.88 | 14 | 36 |
| 360019 | 3/4" | 66 | 17 | 73 | 30 | 19.05 | 18 | 45 |
| 360022 | 7/8" | 77 | 20 | 84 | 35 | 22.23 | 21 | 52 |
| 360025 | 1" | 85 | 22 | 94 | 39 | 25.4 | 23 | 58 |
| 360032 | 1-1/4" | 106 | 28 | 117 | 48 | 31.75 | 29 | 72 |
| 360038 | 1-1/2" | 118 | 33 | 131 | 54 | 38.1 | 32 | 81 |
Questions about this equipment? Send us a message and we’ll check it against the job.
