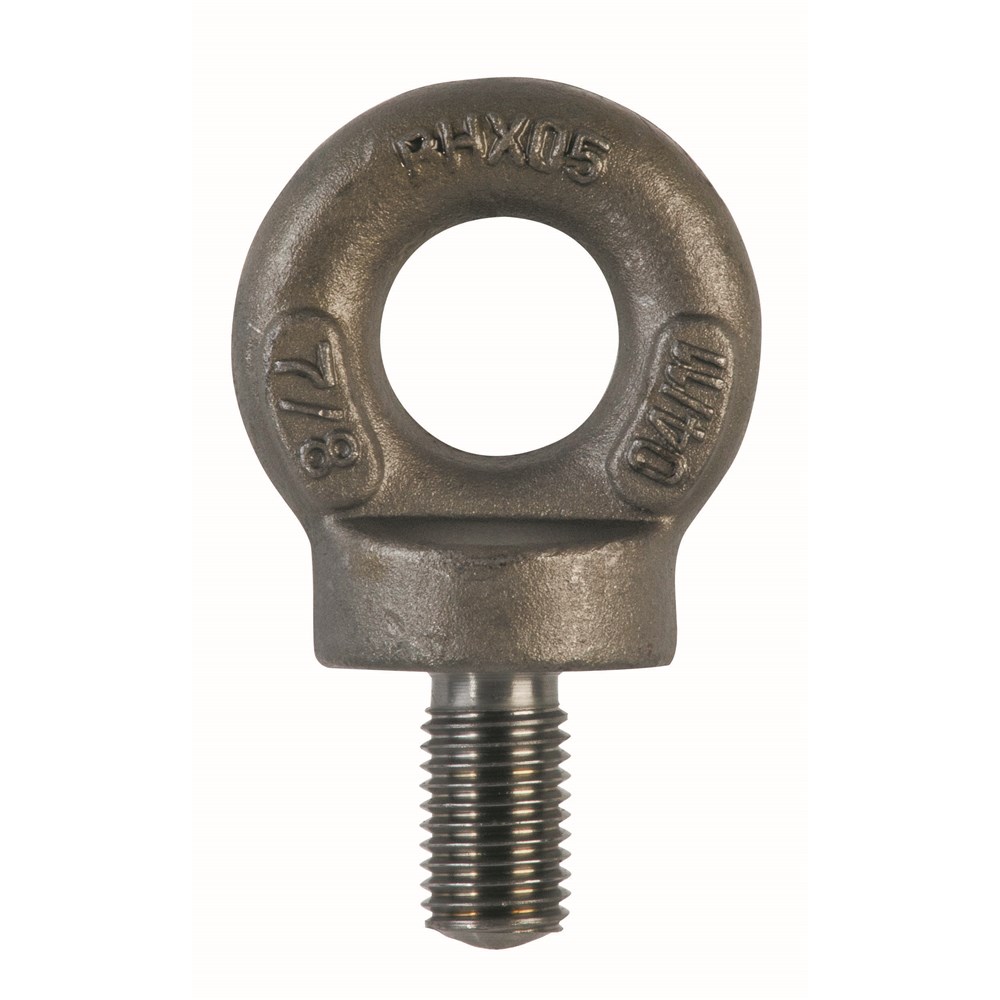

Beaver Lifting Collared Eyebolts with UNC Thread 5/8"
360016per Each
$8.33 inc GSTTrade $7.50, save $0.83Trade accounts save 10%. Apply with your ABN
| W | 52 |
| D1 | 24 |
| D2 | 15.88 |
| D3 | 14 |
| D4 | 36 |
| H1 | 14 |
| H2 | 58 |
| WLL | 0.8t |
| Finish | Self Colour |
| Weight | 0.27kg |
| Thread Size | 5/8" |
| Size (inches) | 5/8" |
| Transverse Load Tonne | 0.2 |
About this product
The Beaver Lifting Collared Eyebolt with UNC Thread 5/8" is a screw-in lifting point for machinery, dies, motors and fabricated items that need a rated attachment. This size runs a 5/8" UNC thread with a working load limit of 800kg in straight vertical lift, and 0.2 tonne when the load comes on at an angle across the collar. It complies to AS 2317.
Key dimensions are a 52mm eye width, 24mm eye opening and a 36mm collar diameter, with a 14mm thread length and overall height of 58mm. Total weight is 0.27kg, so it is easy to carry a few in the toolbox. Finish is self colour, which means it wants a wipe of oil and dry storage to keep surface rust off. Check the threads and tapped hole seat the collar flat before every lift.
Common questions
- what is the WLL of a 5/8 collared eyebolt
- This 5/8" UNC Beaver collared eyebolt is rated to 800kg working load limit for vertical lifting, and 0.2 tonne for transverse loading.
- does the beaver collared eyebolt meet australian standards
- Yes, this collared eyebolt complies to AS 2317.
- what does self colour finish mean on an eyebolt
- Self colour means there is no protective coating on the steel, so keep it oiled and stored dry to stop surface rust forming.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 360010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.06kg |
| 360012 | 1/2" | 0.4t | 0.1 | Self Colour | 0.15kg |
| 360016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.27kg |
| 360019 | 3/4" | 1.4t | 0.4 | Self Colour | 0.54kg |
| 360022 | 7/8" | 2t | 0.5 | Self Colour | 0.85kg |
| 360025 | 1" | 2.5t | 0.62 | Self Colour | 1.13kg |
| 360032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.37kg |
| 360038 | 1-1/42" | 7t | 1.75 | Self Colour | 3.12kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 360010 | 3/8" | 33 | 9 | 36 | 15 | 9.53 | 9 | 22 |
| 360012 | 1/2" | 44 | 11 | 48 | 20 | 12.7 | 11 | 28 |
| 360016 | 5/8" | 52 | 14 | 58 | 24 | 15.88 | 14 | 36 |
| 360019 | 3/4" | 66 | 17 | 73 | 30 | 19.05 | 18 | 45 |
| 360022 | 7/8" | 77 | 20 | 84 | 35 | 22.23 | 21 | 52 |
| 360025 | 1" | 85 | 22 | 94 | 39 | 25.4 | 23 | 58 |
| 360032 | 1-1/4" | 106 | 28 | 117 | 48 | 31.75 | 29 | 72 |
| 360038 | 1-1/2" | 118 | 33 | 131 | 54 | 38.1 | 32 | 81 |
Questions about this equipment? Send us a message and we’ll check it against the job.
