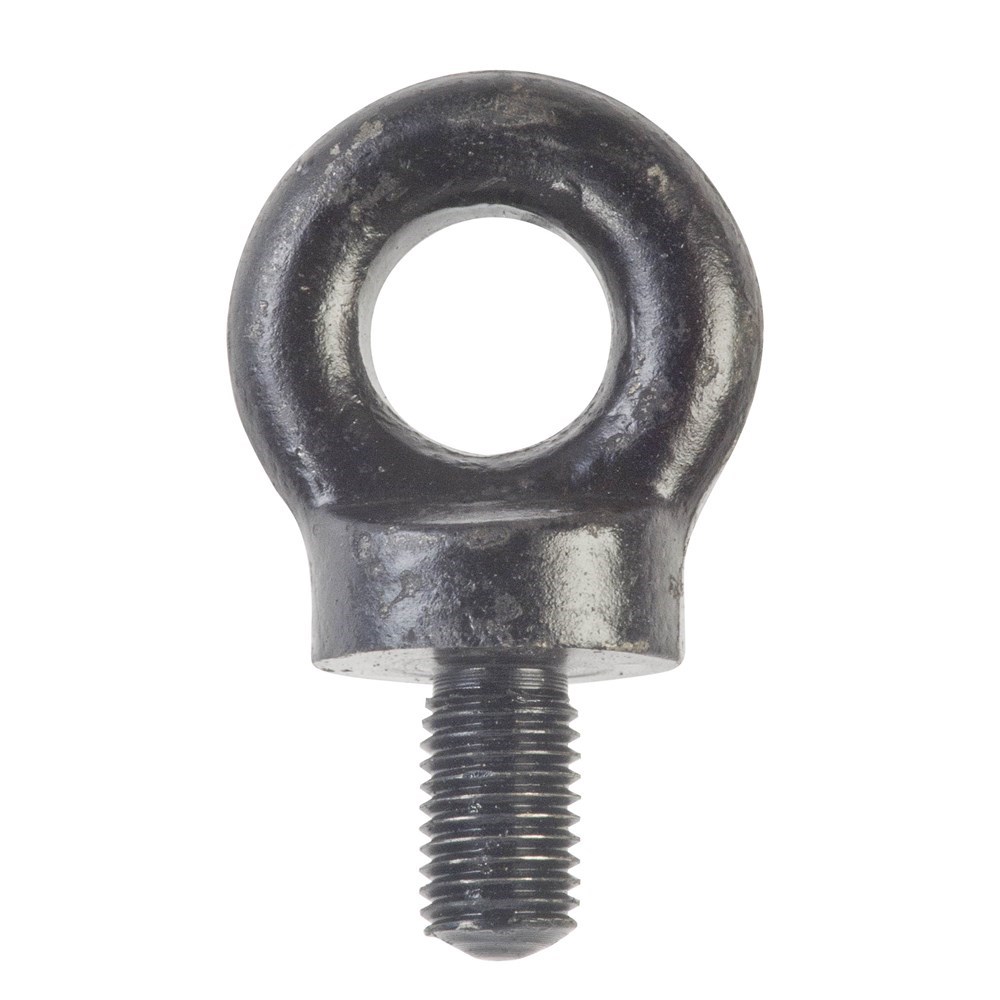

Beaver Lifting Collared Eyebolts with UNC Thread 1/2"
360012per Each
$5.48 inc GSTTrade $4.93, save $0.55Trade accounts save 10%. Apply with your ABN
| W | 44 |
| D1 | 20 |
| D2 | 12.7 |
| D3 | 11 |
| D4 | 28 |
| H1 | 11 |
| H2 | 48 |
| WLL | 0.4t |
| Finish | Self Colour |
| Weight | 0.15kg |
| Thread Size | 1/2" |
| Size (inches) | 1/2" |
| Transverse Load Tonne | 0.1 |
About this product
The Beaver Lifting Collared Eyebolt with UNC Thread 1/2" is a screw-in lifting point for machinery, dies, motors and fabricated items that need a fixed eye for a hook or shackle. This is the 1/2" UNC size, rated to a 400kg working load limit, so it sits at the lighter end of the range where the load is modest and the tapped hole is small. Thread diameter is 12.7mm with a 48mm shank height, a 20mm eye and a 44mm overall width. It weighs 0.15kg.
The collar is the key part. Seated hard against the machined face, it lets the eyebolt take an angled pull, with a transverse load limit of 0.1 tonne. Keep the load in the plane of the eye and wind it down fully. Finish is self colour, so watch it for rust if it lives outdoors or gets washed down, and keep the threads clean. This collared eyebolt complies to AS 2317.
Common questions
- what is the WLL of a 1/2 inch collared eyebolt
- This Beaver 1/2" UNC collared eyebolt has a working load limit of 400kg for an inline pull. Transverse loading is limited to 0.1 tonne.
- beaver collared eyebolt standard compliance
- This collared eyebolt complies to AS 2317, as stated by the manufacturer.
- what is the difference between a collared and plain eyebolt
- The collar seats flush on a machined face and lets the eyebolt handle an angled pull, rated here at 0.1 tonne transverse. A plain eyebolt is for straight vertical lifting only.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 360010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.06kg |
| 360012 | 1/2" | 0.4t | 0.1 | Self Colour | 0.15kg |
| 360016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.27kg |
| 360019 | 3/4" | 1.4t | 0.4 | Self Colour | 0.54kg |
| 360022 | 7/8" | 2t | 0.5 | Self Colour | 0.85kg |
| 360025 | 1" | 2.5t | 0.62 | Self Colour | 1.13kg |
| 360032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.37kg |
| 360038 | 1-1/42" | 7t | 1.75 | Self Colour | 3.12kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 360010 | 3/8" | 33 | 9 | 36 | 15 | 9.53 | 9 | 22 |
| 360012 | 1/2" | 44 | 11 | 48 | 20 | 12.7 | 11 | 28 |
| 360016 | 5/8" | 52 | 14 | 58 | 24 | 15.88 | 14 | 36 |
| 360019 | 3/4" | 66 | 17 | 73 | 30 | 19.05 | 18 | 45 |
| 360022 | 7/8" | 77 | 20 | 84 | 35 | 22.23 | 21 | 52 |
| 360025 | 1" | 85 | 22 | 94 | 39 | 25.4 | 23 | 58 |
| 360032 | 1-1/4" | 106 | 28 | 117 | 48 | 31.75 | 29 | 72 |
| 360038 | 1-1/2" | 118 | 33 | 131 | 54 | 38.1 | 32 | 81 |
