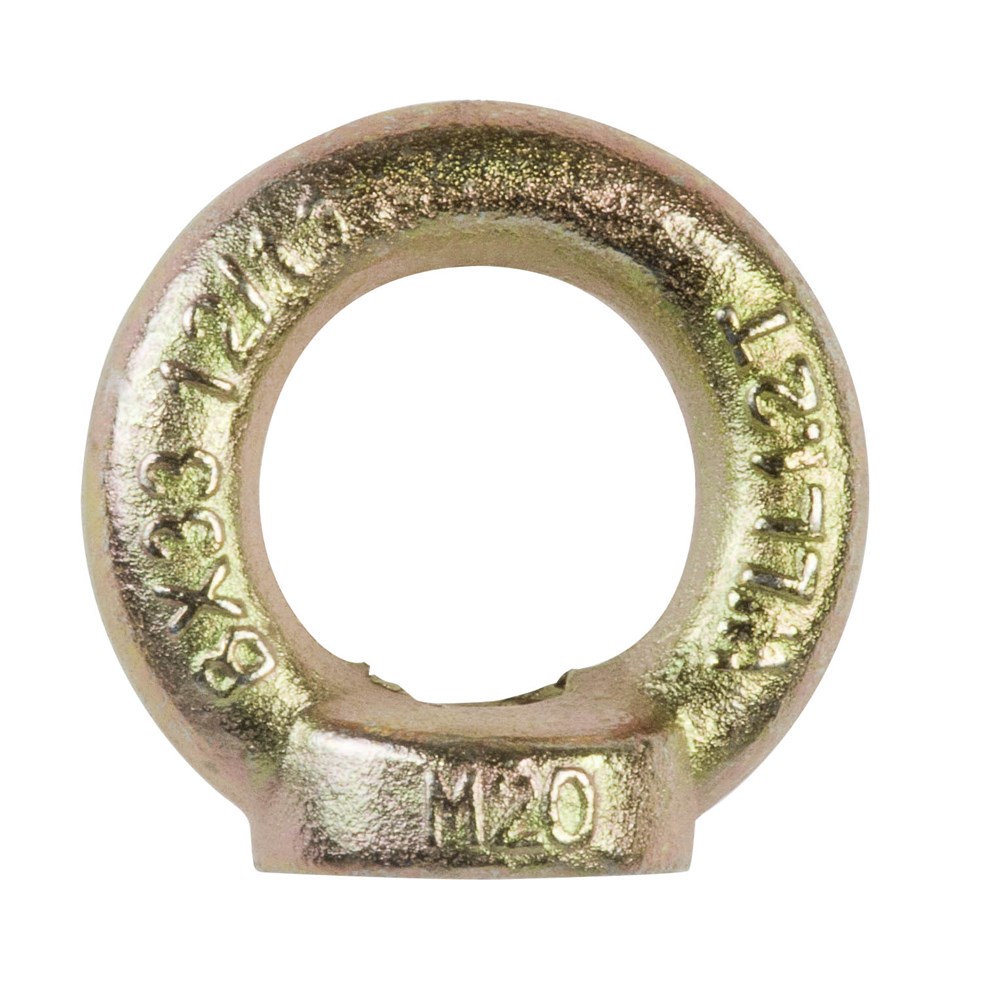

Beaver Metric Shouldered Eye Nuts 20mm
359220per Each
$5.83 inc GSTTrade $5.25, save $0.58Trade accounts save 10%. Apply with your ABN
| E | 16mm |
| H | 70mm |
| W | 72mm |
| D1 | 40mm |
| D2 | 20mm |
| D3 | 16mm |
| D4 | 40mm |
| WLL | 1.2t |
| Finish | Zinc Dichromate |
| Weight | 0.36kg |
| Size (mm) | 20mm |
| Thread Size | 20mm |
| Transverse Load Tonne | 0.3 |
About this product
The Beaver Metric Shouldered Eye Nuts 20mm gives you a threaded lifting point you can screw onto a 20mm stud or bolt and sling straight off. Working load limit is 1.2t in a straight vertical pull, with 0.3 tonne allowed on a transverse load. The 20mm thread size sits mid range, handy where the smaller eyenuts run out of capacity but you do not need the bigger bodies. This eyenut is rated to DIN 582.
Dimensions are 70mm high and 72mm wide, with a 40mm eye and 16mm section through the ring, so most shackles and hooks in that range will seat cleanly. The shoulder takes the side load and keeps the nut bearing flat on the face of the load. Zinc dichromate finish handles general site and workshop conditions. Weight is 0.36kg.
Common questions
- what is the WLL of a 20mm eye nut
- The Beaver Metric Shouldered Eye Nut 20mm is rated to 1.2t working load limit on a straight vertical lift. Transverse loading is limited to 0.3 tonne.
- what standard are beaver eye nuts rated to
- This eyenut is rated to DIN 582.
- what thread does the 20mm beaver eye nut take
- It has a 20mm metric thread. Beaver lifting eyebolts and eyenuts are also available in BSW and UNC threads across a range of sizes.
Full specifications
| Product Code | Size (mm) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 359208 | 8mm | 0.14t | 0.03 | Zinc Dichromate | 0.05kg |
| 359210 | 10mm | 0.23t | 0.06 | Zinc Dichromate | 0.09kg |
| 359212 | 12mm | 0.3t | 0.07 | Zinc Dichromate | 0.16kg |
| 359216 | 16mm | 0.7t | 0.17 | Zinc Dichromate | 0.24kg |
| 359220 | 20mm | 1.2t | 0.3 | Zinc Dichromate | 0.36kg |
| 359222 | 22mm | 1.5t | 0.37 | Zinc Dichromate | 0.58kg |
| 359224 | 24mm | 1.8t | 0.45 | Zinc Dichromate | 0.72kg |
| Product Code | Size (mm) | W | H | D1 | D2 | D3 | D4 | E |
|---|---|---|---|---|---|---|---|---|
| 359208 | 8mm | 36mm | 36mm | 20mm | 8mm | 8mm | 20mm | 8.5mm |
| 359210 | 10mm | 45mm | 45mm | 25mm | 10mm | 10mm | 25mm | 10mm |
| 359212 | 12mm | 54mm | 52mm | 30mm | 12mm | 12mm | 30mm | 11mm |
| 359216 | 16mm | 63mm | 61mm | 35mm | 16mm | 14mm | 35mm | 13mm |
| 359220 | 20mm | 72mm | 70mm | 40mm | 20mm | 16mm | 40mm | 16mm |
| 359222 | 22mm | 81mm | 80mm | 45mm | 22mm | 18mm | 45mm | 19.4mm |
| 359224 | 24mm | 90mm | 90mm | 50mm | 24mm | 20mm | 50mm | 20mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
