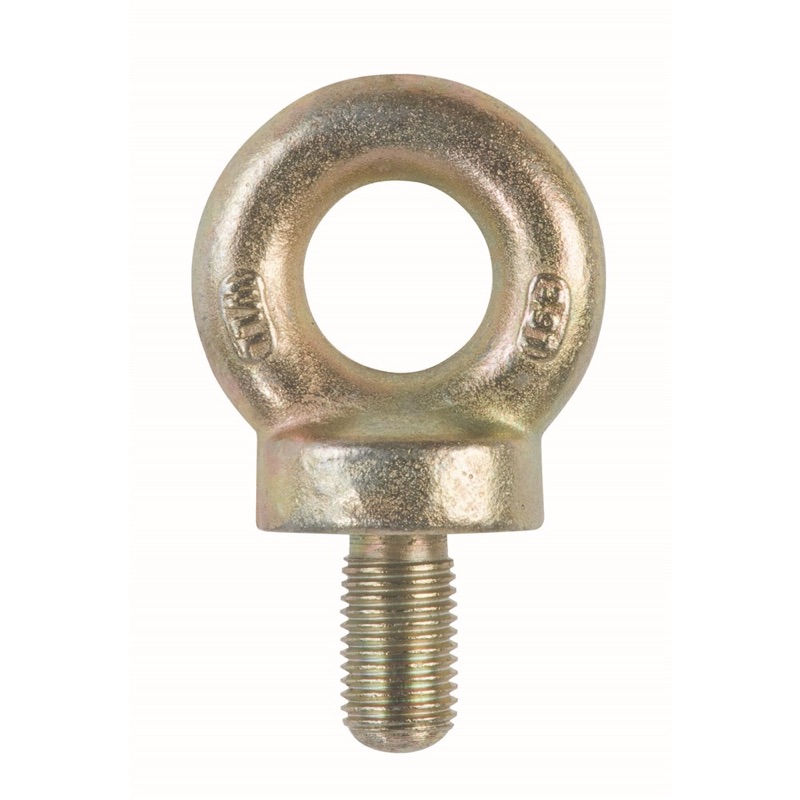

Beaver Lifting Collared Eyebolts Small Eye with Metric Thread 22mm
359022per Each
$14.27 inc GSTTrade $12.84, save $1.43Trade accounts save 10%. Apply with your ABN
| W | 64mm |
| D1 | 30mm |
| D2 | 22mm |
| D3 | 34mm |
| D4 | 45mm |
| H1 | 35mm |
| H2 | 73mm |
| WLL | 1.5t |
| Finish | Zinc Dichromate |
| Weight | 0.54kg |
| Size (mm) | 22mm |
| Thread Size | 22mm |
| Transverse Load Tonne | 0.37 |
About this product
The Beaver Lifting Collared Eyebolt Small Eye with Metric Thread 22mm is a screw-in lifting point for machinery, dies, motors and fabricated items that need a rated attachment. This is the 22mm metric thread size in the range, rated to a 1.5t working load limit in straight vertical pull, with a transverse load rating of 0.37 tonne when the load comes on at an angle against the collar.
Key dimensions are a 64mm eye width, 35mm eye height and 73mm overall height, with a 45mm collar diameter seating flat on the mounting face. It weighs 0.54kg and carries a zinc dichromate finish for corrosion resistance in workshop and site conditions. The eyebolt complies to AS 2317. Make sure the tapped hole is deep enough and clean so the collar pulls down hard against the surface.
Common questions
- what is the WLL of a 22mm eyebolt
- This 22mm Beaver collared eyebolt has a working load limit of 1.5t on a straight vertical lift. Loaded transversely it drops to 0.37 tonne.
- can you side load a collared eyebolt
- Yes, the collar is designed to take angled loading, but the rating falls to 0.37 tonne on this 22mm size. Keep the collar seated flat against the mounting face.
- what finish do beaver eyebolts have
- Zinc dichromate, which gives corrosion resistance for workshop and general site use. The 22mm size weighs 0.54kg.
Full specifications
| Product Code | Size (mm) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 359008 | 8mm | 0.15t | 0.04 | Zinc Dichromate | 0.06kg |
| 359010 | 10mm | 0.25t | 0.06 | Zinc Dichromate | 0.06kg |
| 359012 | 12mm | 0.4t | 0.1 | Zinc Dichromate | 0.06kg |
| 359016 | 16mm | 0.8t | 0.2 | Zinc Dichromate | 0.15kg |
| 359020 | 20mm | 1.2t | 0.3 | Zinc Dichromate | 0.38kg |
| 359022 | 22mm | 1.5t | 0.37 | Zinc Dichromate | 0.54kg |
| 359024 | 24mm | 2.5t | 0.62 | Zinc Dichromate | 0.85kg |
| 359030 | 30mm | 4t | 1 | Zinc Dichromate | 1.62kg |
| Product Code | Size (mm) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 359008 | 8mm | 33mm | 18mm | 36mm | 15mm | 8mm | 18mm | 22mm |
| 359010 | 10mm | 33mm | 18mm | 36mm | 15mm | 10mm | 18mm | 22mm |
| 359012 | 12mm | 33mm | 18mm | 36mm | 15mm | 12mm | 18mm | 22mm |
| 359016 | 16mm | 44mm | 23mm | 48mm | 20mm | 16mm | 24mm | 29mm |
| 359020 | 20mm | 59mm | 32mm | 65mm | 27mm | 20mm | 32mm | 40mm |
| 359022 | 22mm | 64mm | 35mm | 73mm | 30mm | 22mm | 34mm | 45mm |
| 359024 | 24mm | 77mm | 40mm | 84mm | 35mm | 24mm | 42mm | 52mm |
| 359030 | 30mm | 96mm | 51mm | 106mm | 44mm | 30mm | 52mm | 65mm |
