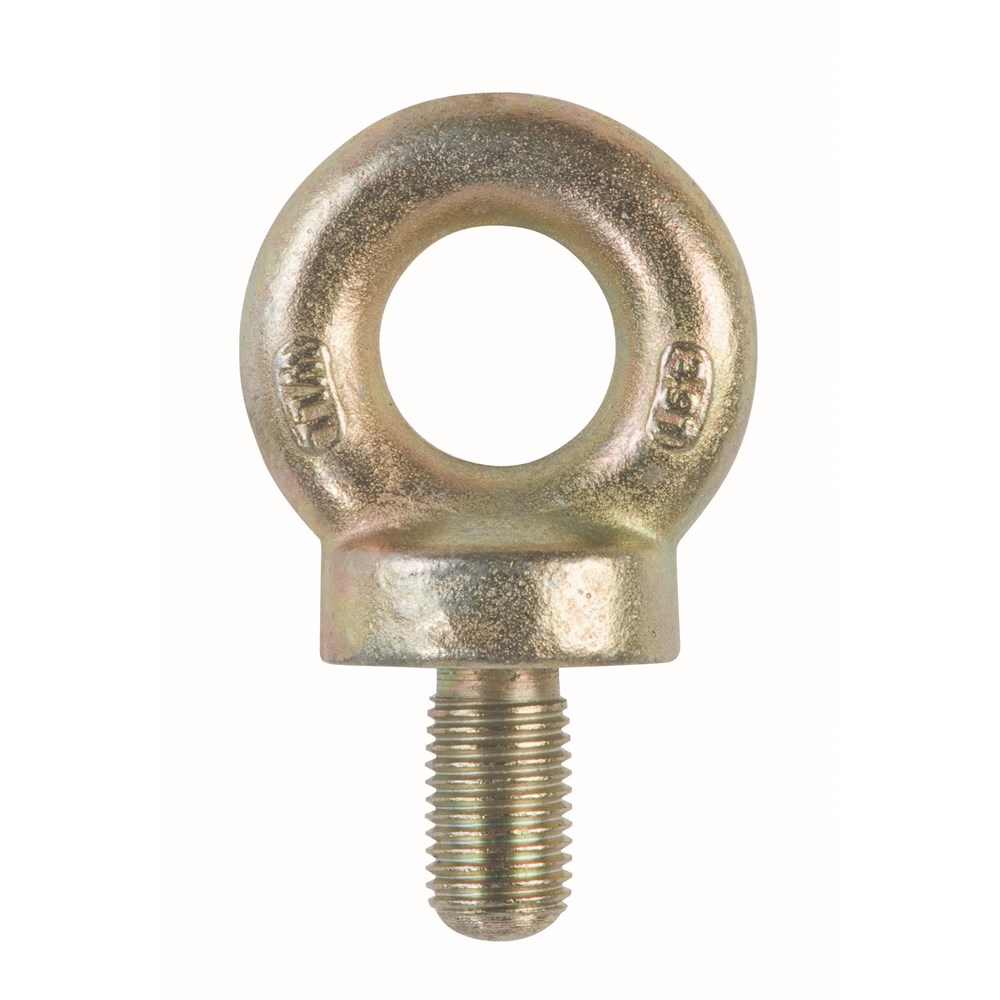

Beaver Lifting Collared Eyebolts Small Eye with Metric Thread 12mm
359012per Each
$2.30 Trade inc GST$2.55 without a trade accountTrade accounts save 10% — apply with your ABN
| W | 33mm |
| D1 | 15mm |
| D2 | 12mm |
| D3 | 18mm |
| D4 | 22mm |
| H1 | 18mm |
| H2 | 36mm |
| WLL | 0.4t |
| Finish | Zinc Dichromate |
| Weight | 0.06kg |
| Size (mm) | 12mm |
| Thread Size | 12mm |
| Transverse Load Tonne | 0.1 |
Full specifications
| Product Code | Size (mm) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 359008 | 8mm | 0.15t | 0.04 | Zinc Dichromate | 0.06kg |
| 359010 | 10mm | 0.25t | 0.06 | Zinc Dichromate | 0.06kg |
| 359012 | 12mm | 0.4t | 0.1 | Zinc Dichromate | 0.06kg |
| 359016 | 16mm | 0.8t | 0.2 | Zinc Dichromate | 0.15kg |
| 359020 | 20mm | 1.2t | 0.3 | Zinc Dichromate | 0.38kg |
| 359022 | 22mm | 1.5t | 0.37 | Zinc Dichromate | 0.54kg |
| 359024 | 24mm | 2.5t | 0.62 | Zinc Dichromate | 0.85kg |
| 359030 | 30mm | 4t | 1 | Zinc Dichromate | 1.62kg |
| Product Code | Size (mm) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 359008 | 8mm | 33mm | 18mm | 36mm | 15mm | 8mm | 18mm | 22mm |
| 359010 | 10mm | 33mm | 18mm | 36mm | 15mm | 10mm | 18mm | 22mm |
| 359012 | 12mm | 33mm | 18mm | 36mm | 15mm | 12mm | 18mm | 22mm |
| 359016 | 16mm | 44mm | 23mm | 48mm | 20mm | 16mm | 24mm | 29mm |
| 359020 | 20mm | 59mm | 32mm | 65mm | 27mm | 20mm | 32mm | 40mm |
| 359022 | 22mm | 64mm | 35mm | 73mm | 30mm | 22mm | 34mm | 45mm |
| 359024 | 24mm | 77mm | 40mm | 84mm | 35mm | 24mm | 42mm | 52mm |
| 359030 | 30mm | 96mm | 51mm | 106mm | 44mm | 30mm | 52mm | 65mm |
