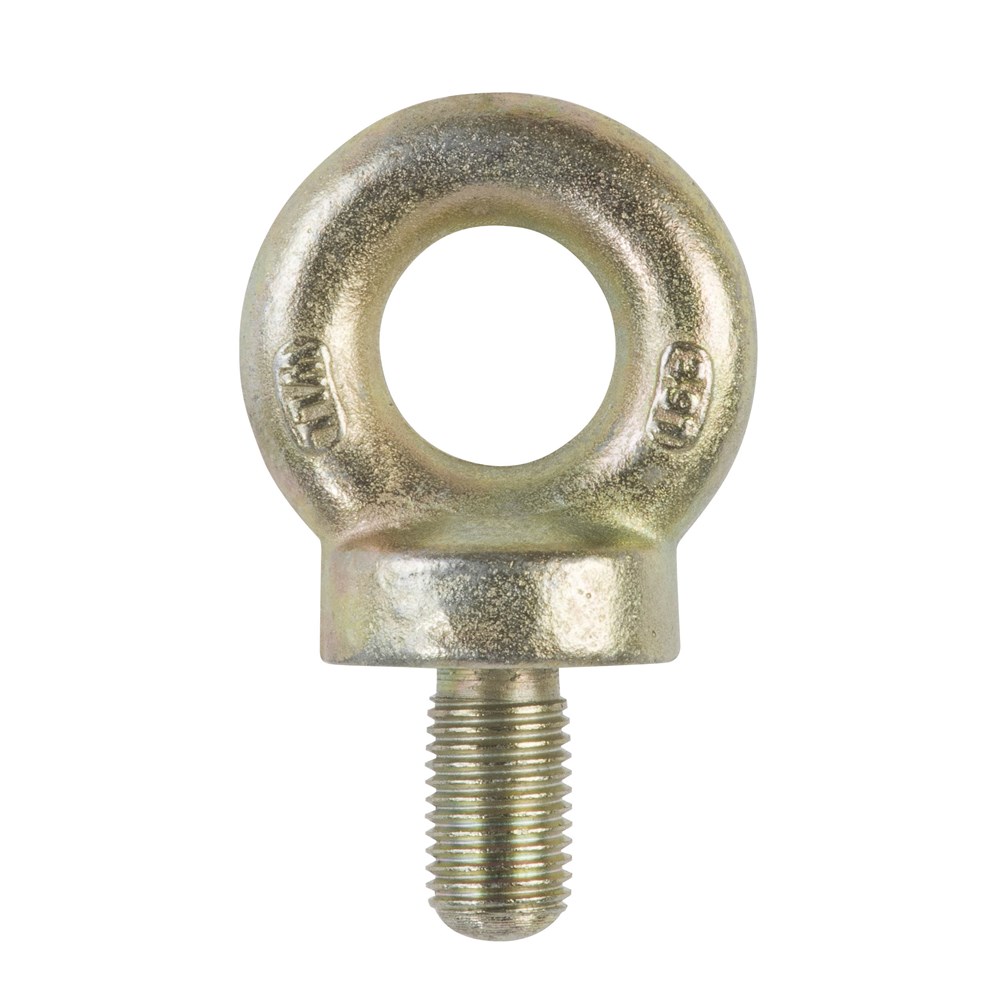

Beaver Lifting Collared Eyebolts Small Eye with Metric Thread 8mm
359008per Each
$2.79 inc GSTTrade $2.51, save $0.28Trade accounts save 10%. Apply with your ABN
| W | 33mm |
| D1 | 15mm |
| D2 | 8mm |
| D3 | 18mm |
| D4 | 22mm |
| H1 | 18mm |
| H2 | 36mm |
| WLL | 0.15t |
| Finish | Zinc Dichromate |
| Weight | 0.06kg |
| Size (mm) | 8mm |
| Thread Size | 8mm |
| Transverse Load Tonne | 0.04 |
About this product
The Beaver Lifting Collared Eyebolt Small Eye with Metric Thread 8mm is a screw-in lifting point for attaching a hook or shackle to a machine, mould or fabricated part. It is the smallest thread in the range, with an 8mm metric thread and a working load limit of 150kg, or 0.15t, in a straight vertical pull. Overall width is 33mm and total height is 36mm, so it suits light loads where there is not much room to work.
The collar seats flat against the load face, which is what lets the eyebolt take a limited angled pull, rated at 0.04 tonne transverse. Keep the pull in line with the eye wherever you can. Finish is zinc dichromate for general corrosion resistance, and the bolt weighs 0.06kg. This eyebolt complies to AS 2317. Check the thread and eye for damage or stretch before every lift, and make sure the tapped hole gives you full thread engagement.
Common questions
- what is the WLL of an 8mm eyebolt
- This 8mm collared eyebolt has a working load limit of 150kg, or 0.15t, on a vertical pull. Transverse loading is rated at 0.04 tonne.
- can you side load a collared eyebolt
- The collar allows a limited angled pull, and this size is rated at 0.04 tonne transverse. Anything heavier needs to be lifted in line with the eye.
- what standard does the beaver eyebolt comply with
- This eyebolt complies to AS 2317. It carries a zinc dichromate finish and an 8mm metric thread.
Full specifications
| Product Code | Size (mm) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 359008 | 8mm | 0.15t | 0.04 | Zinc Dichromate | 0.06kg |
| 359010 | 10mm | 0.25t | 0.06 | Zinc Dichromate | 0.06kg |
| 359012 | 12mm | 0.4t | 0.1 | Zinc Dichromate | 0.06kg |
| 359016 | 16mm | 0.8t | 0.2 | Zinc Dichromate | 0.15kg |
| 359020 | 20mm | 1.2t | 0.3 | Zinc Dichromate | 0.38kg |
| 359022 | 22mm | 1.5t | 0.37 | Zinc Dichromate | 0.54kg |
| 359024 | 24mm | 2.5t | 0.62 | Zinc Dichromate | 0.85kg |
| 359030 | 30mm | 4t | 1 | Zinc Dichromate | 1.62kg |
| Product Code | Size (mm) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 359008 | 8mm | 33mm | 18mm | 36mm | 15mm | 8mm | 18mm | 22mm |
| 359010 | 10mm | 33mm | 18mm | 36mm | 15mm | 10mm | 18mm | 22mm |
| 359012 | 12mm | 33mm | 18mm | 36mm | 15mm | 12mm | 18mm | 22mm |
| 359016 | 16mm | 44mm | 23mm | 48mm | 20mm | 16mm | 24mm | 29mm |
| 359020 | 20mm | 59mm | 32mm | 65mm | 27mm | 20mm | 32mm | 40mm |
| 359022 | 22mm | 64mm | 35mm | 73mm | 30mm | 22mm | 34mm | 45mm |
| 359024 | 24mm | 77mm | 40mm | 84mm | 35mm | 24mm | 42mm | 52mm |
| 359030 | 30mm | 96mm | 51mm | 106mm | 44mm | 30mm | 52mm | 65mm |
