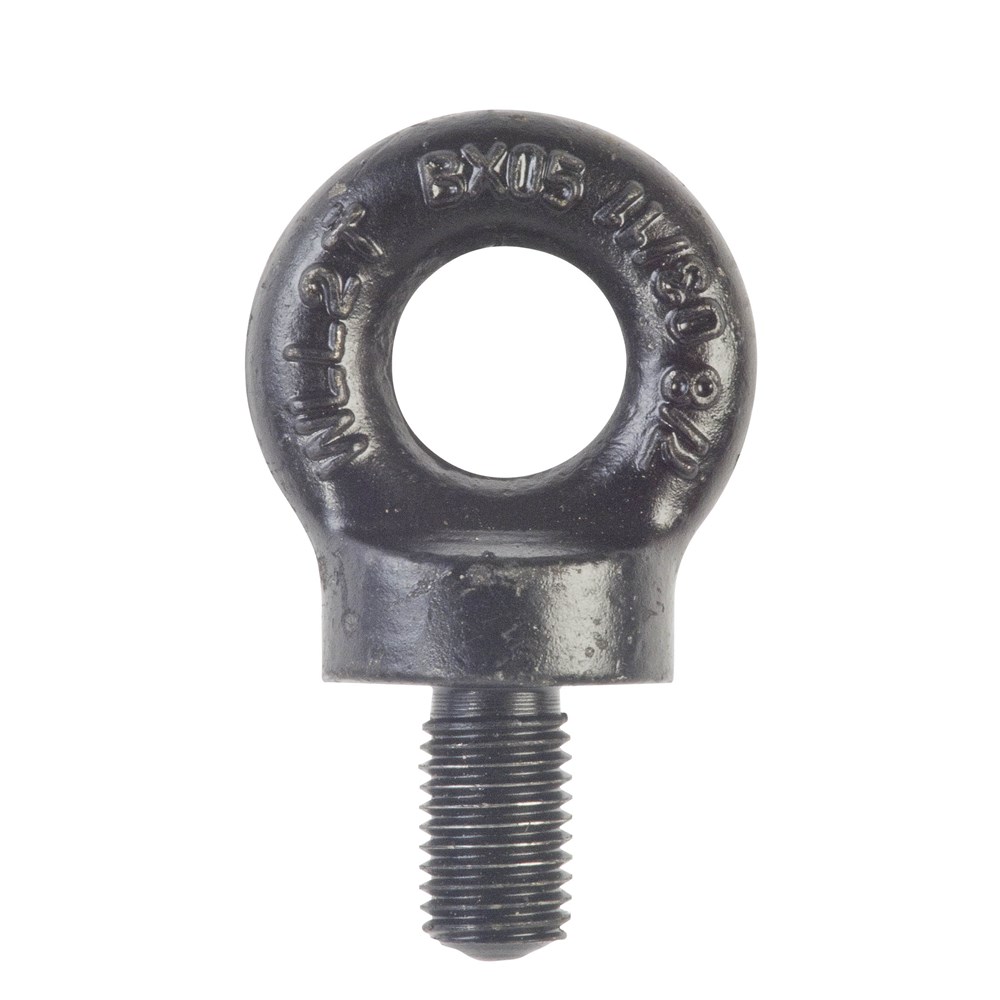

Beaver Lifting Collared Eyebolts with B.S.W. Thread 3/8"
358010per Each
$2.97 inc GSTTrade $2.67, save $0.30Trade accounts save 10%. Apply with your ABN
| W | 32 |
| D1 | 14 |
| D2 | 9.53 |
| D3 | 9 |
| D4 | 21 |
| H1 | 17 |
| H2 | 35 |
| WLL | 0.25t |
| Finish | Self Colour |
| Weight | 0.055kg |
| Thread Size | 3/8" |
| Size (inches) | 3/8" |
| Transverse Load Tonne | 0.06 |
About this product
The Beaver Lifting Collared Eyebolt with 3/8" B.S.W. Thread is a screw-in lifting point for machinery, dies and fabricated items that need a rated eye rather than a welded lug. It carries a working load limit of 250kg on a straight vertical pull, with a transverse load rating of 0.06 tonne. The collar seats flush against the machined face and takes the side load off the shank. Beaver states this eyebolt complies to AS 2317.
At 32mm across the eye and 35mm overall height, it weighs just 0.055kg, so it is the pick where the load is light and the tapped hole is small. The finish is self colour, which means it is worth keeping an eye on rust if the eyebolt lives outdoors or gets washed down. Check the thread and the seating face each time before you load it, and keep the pull in line with the shank.
Common questions
- what is the wll of a 3/8 beaver eyebolt
- 250kg, or 0.25 tonne, on a vertical in-line pull. The transverse load rating is 0.06 tonne.
- do beaver collared eyebolts comply with australian standards
- Yes, Beaver states this eyebolt complies to AS 2317.
- what does self colour finish mean on an eyebolt
- Self colour means there is no plating or coating over the steel, so the eyebolt needs checking for corrosion if it is used or stored outdoors.
Full specifications
| Product Code | Size (inches) | WLL | Transverse Load Tonne | Finish | Weight |
|---|---|---|---|---|---|
| 358010 | 3/8" | 0.25t | 0.06 | Self Colour | 0.055kg |
| 358013 | 1/2" | 0.4t | 0.1 | Self Colour | 0.146kg |
| 358016 | 5/8" | 0.8t | 0.2 | Self Colour | 0.3kg |
| 358019 | 3/4" | 1.6t | 0.4 | Self Colour | 0.525kg |
| 358022 | 7/8" | 2t | 0.5 | Self Colour | 0.9kg |
| 358025 | 1" | 2.5t | 0.62 | Self Colour | 1.06kg |
| 358028 | 1-1/8" | 3.5t | 0.87 | Self Colour | 1.6kg |
| 358032 | 1-1/4" | 5t | 1.25 | Self Colour | 2.6kg |
| Product Code | Size (inches) | W | H1 | H2 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| 358010 | 3/8" | 32 | 17 | 35 | 14 | 9.53 | 9 | 21 |
| 358013 | 1/2" | 41 | 22 | 42.5 | 19 | 12.70 | 11 | 28 |
| 358016 | 5/8" | 52 | 28 | 58 | 24 | 15.88 | 14 | 36 |
| 358019 | 3/4" | 62 | 33 | 69 | 28 | 19.05 | 17 | 43 |
| 358022 | 7/8" | 73 | 39 | 80.5 | 33 | 22.23 | 20 | 50 |
| 358025 | 1" | 82 | 44 | 92 | 38 | 25.40 | 22 | 57 |
| 358028 | 1-1/8" | 92 | 50 | 103 | 42 | 28.58 | 25 | 64 |
| 358032 | 1-1/4" | 104 | 55 | 116 | 47 | 31.75 | 28 | 71 |
