Beaver G70 Gold Clevis Slip Hooks 10mm
356010per Each
$18.80 inc GSTTrade $16.92, save $1.88Trade accounts save 10%. Apply with your ABN
| LC | 6000kg |
| UOM | Each |
| b mm | 92 |
| d mm | 12 |
| e mm | 79 |
| f mm | 12 |
| g mm | 32 |
| h mm | 127 |
| m mm | 29 |
| n mm | 33 |
| w mm | 28 |
| Weight | 0.62kg |
| Chain Size | 10mm |
| Chain Size mm | 10 |
About this product

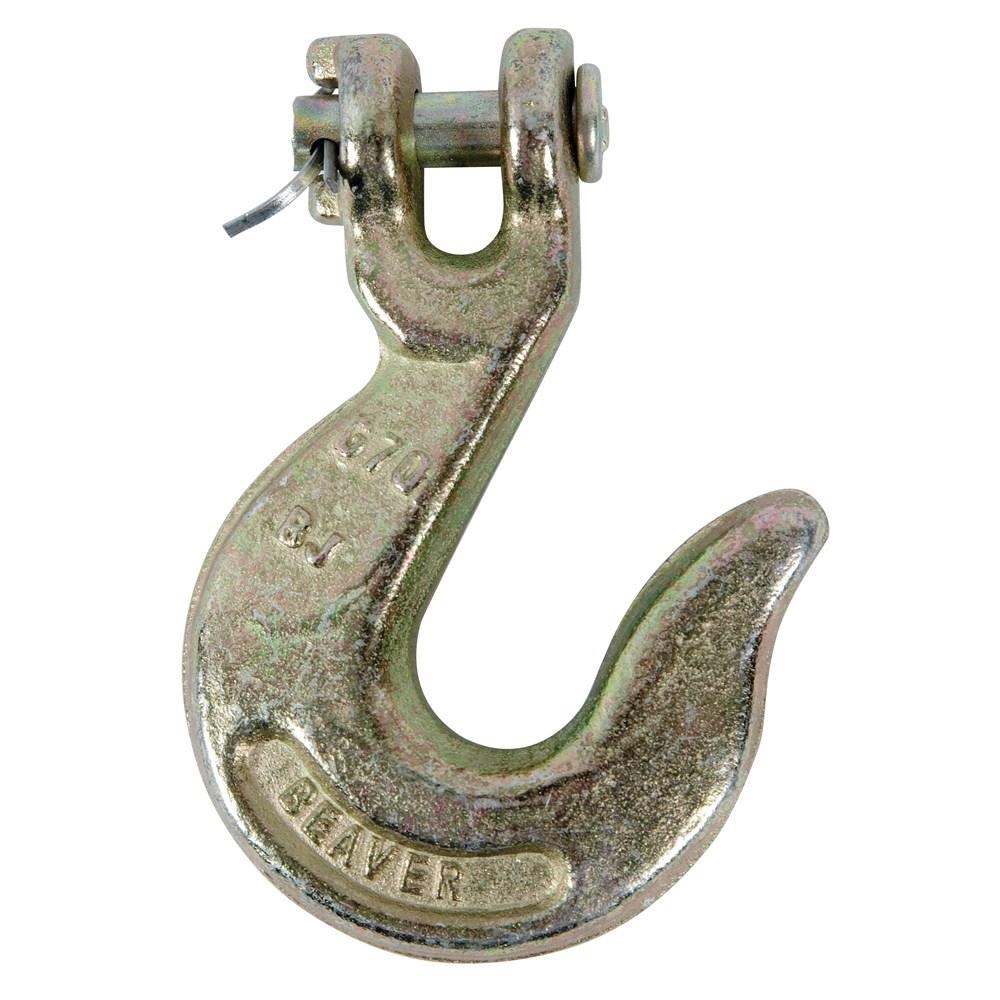

The Beaver G70 Gold Clevis Slip Hooks 10mm is the end fitting for 10mm lashing chain on truck and trailer load restraint work. It carries a lashing capacity of 6000kg, making it the heaviest option in this range and the one to reach for when you are tying down plant, steel or heavy mine site freight.
Built as a Grade 70 hi tensile fitting with a pin closure, it clevises straight onto 10mm chain with a 12mm pin. The zinc di-chromate gold finish gives it the standard load restraint colour coding and a bit of protection against the weather. Overall length is 127mm with a 32mm throat, and it weighs 0.62kg, so it is easy enough to handle over a long day of chucking chains. Complies to AS/NZS 4344.
Common questions
- what is the lashing capacity of a 10mm G70 clevis slip hook
- This hook has an LC of 6000kg. It is matched to 10mm Grade 70 lashing chain.
- what is the gold coating on G70 chain fittings
- It is a zinc di-chromate finish, which gives the gold colour used to identify Grade 70 load restraint gear and adds some corrosion protection.
- does the beaver g70 clevis slip hook meet australian standards
- Yes, it complies to AS/NZS 4344.
Full specifications
| Product Code | Chain Size mm | f mm | d mm | e mm | b mm | g mm | h mm | m mm | n mm | w mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 356006 | 6 | 9 | 8 | 60.5 | 59 | 18.5 | 96 | 20.5 | 25 | 21.6 | 2300kg | 0.269kg | Each |
| 356008 | 8 | 10.5 | 9 | 68.5 | 73.5 | 25 | 109 | 24.5 | 31 | 24 | 3800kg | 0.348kg | Each |
| 356010 | 10 | 12 | 12 | 79 | 92 | 32 | 127 | 29 | 33 | 28 | 6000kg | 0.62kg | Each |
| 356013 | 13 | 18.5 | 16 | 102.5 | 120.5 | 42 | 166 | 39.5 | 47 | 32 | 9000kg | 1.32kg | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
