Beaver G70 Gold Clevis Slip Hooks 8mm
356008per Each
$9.32 inc GSTTrade $8.39, save $0.93Trade accounts save 10%. Apply with your ABN
| LC | 3800kg |
| UOM | Each |
| b mm | 73.5 |
| d mm | 9 |
| e mm | 68.5 |
| f mm | 10.5 |
| g mm | 25 |
| h mm | 109 |
| m mm | 24.5 |
| n mm | 31 |
| w mm | 24 |
| Weight | 0.348kg |
| Chain Size | 8mm |
| Chain Size mm | 8 |
About this product

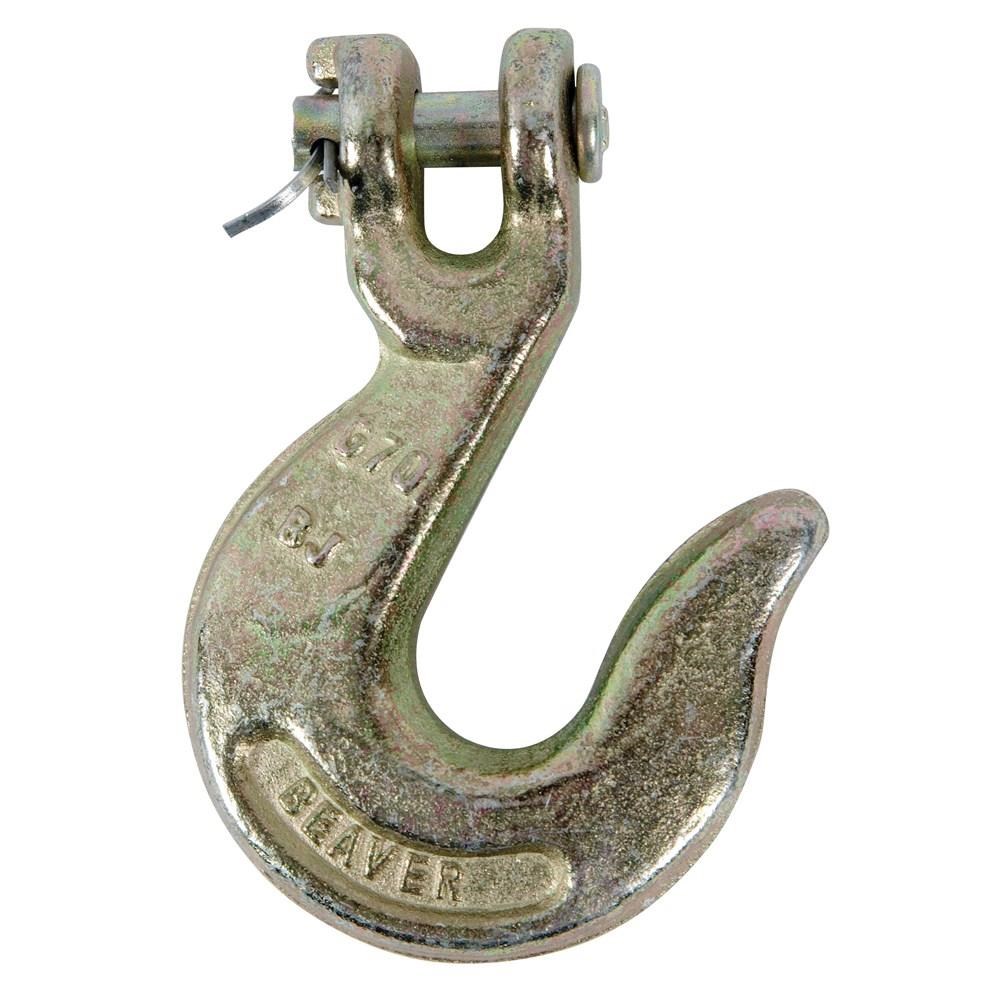

The Beaver G70 Gold Clevis Slip Hooks 8mm is a load restraint end fitting that connects straight onto 8mm lashing chain for tying down machinery, steel and general freight. It carries a lashing capacity of 3800kg, which makes this the mid-range option in the series and the usual match for 8mm chain systems on trucks and trailers. The clevis end pins directly to the chain link, so there is no need for a separate connector.
Made as a hi tensile Grade 70 fitting with a zinc di-chromate gold finish for corrosion resistance and easy identification against lower grade gear. The hook measures 109mm overall with a 25mm throat and a 9mm pin, and weighs 0.348kg, so it is light enough to handle all day on a loading dock. Pin closure helps keep the chain seated under tension. Complies to AS/NZS 4344.
Common questions
- what is the lashing capacity of an 8mm G70 clevis slip hook
- This 8mm Beaver G70 Gold Clevis Slip Hook has a lashing capacity of 3800kg. It is rated for load restraint work, not for lifting.
- what chain does a beaver 356008 slip hook fit
- It suits 8mm lashing chain. The clevis end pins directly to the chain link, so no extra connecting link is needed.
- why is the beaver g70 hook gold
- The gold colour comes from the zinc di-chromate finish, which adds corrosion resistance and makes Grade 70 restraint gear easy to pick out from other fittings on site.
Full specifications
| Product Code | Chain Size mm | f mm | d mm | e mm | b mm | g mm | h mm | m mm | n mm | w mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 356006 | 6 | 9 | 8 | 60.5 | 59 | 18.5 | 96 | 20.5 | 25 | 21.6 | 2300kg | 0.269kg | Each |
| 356008 | 8 | 10.5 | 9 | 68.5 | 73.5 | 25 | 109 | 24.5 | 31 | 24 | 3800kg | 0.348kg | Each |
| 356010 | 10 | 12 | 12 | 79 | 92 | 32 | 127 | 29 | 33 | 28 | 6000kg | 0.62kg | Each |
| 356013 | 13 | 18.5 | 16 | 102.5 | 120.5 | 42 | 166 | 39.5 | 47 | 32 | 9000kg | 1.32kg | Each |
