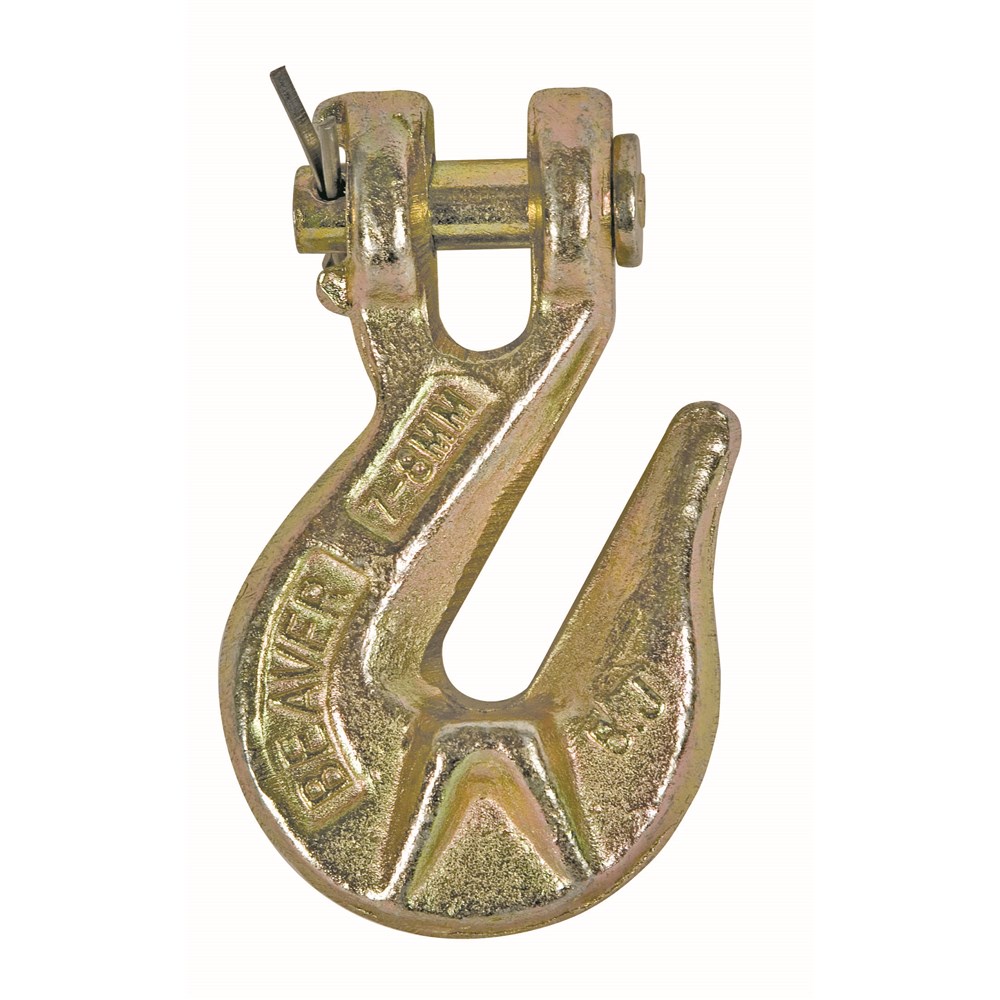

Beaver G70 Gold Clevis Grab Hooks with Wings 10mm
354010per Each
$11.35 inc GSTTrade $10.22, save $1.13Trade accounts save 10%. Apply with your ABN
| LC | 6000kg |
| UOM | Each |
| b mm | 66.5 |
| d mm | 12.5 |
| e mm | 60.5 |
| f mm | 12.4 |
| g mm | 13.5 |
| w mm | 39 |
| Weight | 0.5kg |
| Chain Size | 10mm |
| Chain size mm | 10 |
About this product
The Beaver G70 Gold Clevis Grab Hooks with Wings 10mm is a grade 70 lashing chain fitting used to shorten or terminate a chain leg when tying down a load. It suits 10mm chain and carries a lashing capacity of 6000kg, the heavier end of the range for truck and trailer restraint work. The wings sit against the chain links to keep the hook seated square under tension, so it does not roll or foul when the tensioner is wound up.
Built as a hi tensile fitting with a zinc di-chromate gold finish for corrosion resistance and easy identification in a kit. Key dimensions are 66.5mm b, 12.5mm d, 60.5mm e, 12.4mm f, 13.5mm g and 39mm w, with a weight of 0.5kg. It complies to AZ/NZS 4344. Match the hook to your chain size, check the throat and pin for wear or spread before each trip.
Common questions
- what is the load capacity of a 10mm G70 grab hook
- This 10mm Beaver G70 clevis grab hook has a lashing capacity (LC) of 6000kg. It is a load restraint fitting, not a lifting hook.
- what does the gold finish on Beaver G70 fittings mean
- The gold colour comes from a zinc di-chromate coating, which gives corrosion protection and makes grade 70 restraint gear easy to pick out from other fittings.
- why does a grab hook have wings
- The wings bear against the chain links so the hook stays seated square under tension, which keeps it from twisting or slipping off when you tension the chain.
Full specifications
| Product Code | Chain size mm | f mm | d mm | e mm | b mm | g mm | w mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
| 354006 | 6 | 9.2 | 8.5 | 46.4 | 49 | 9.2 | 22 | 2300kg | 0.24kg | Each |
| 354008 | 7-8 | 10.4 | 10.5 | 49 | 57 | 10.5 | 28 | 3800kg | 0.38kg | Each |
| 354010 | 10 | 12.4 | 12.5 | 60.5 | 66.5 | 13.5 | 39 | 6000kg | 0.5kg | Each |
| 354013 | 13 | 19.5 | 16.5 | 84 | 88 | 18 | 39 | 9000kg | 0.68kg | Each |
