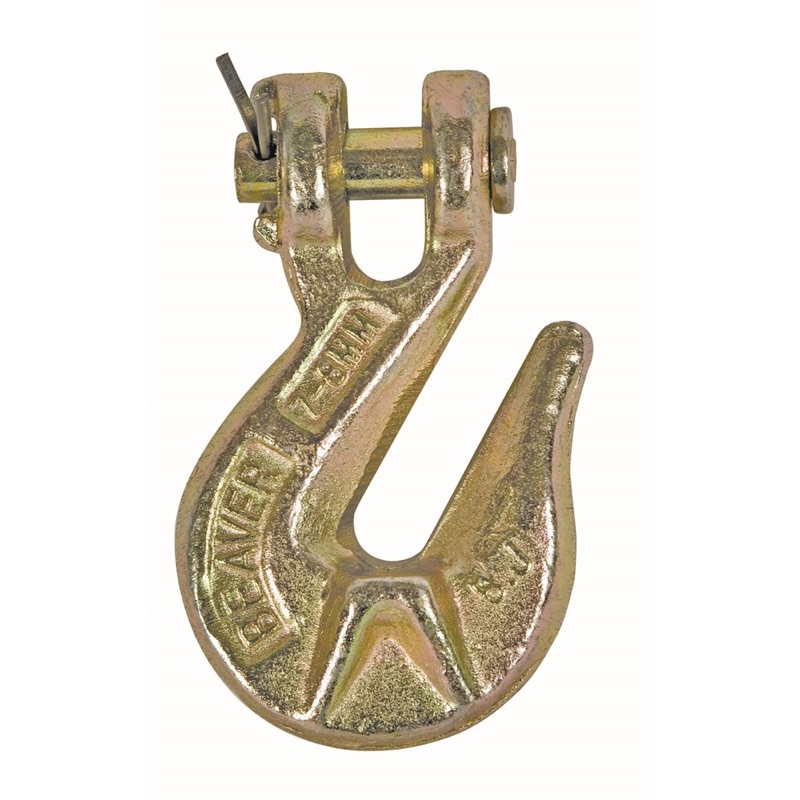

Beaver G70 Gold Clevis Grab Hooks with Wings 7-8mm
354008per Each
$7.47 inc GSTTrade $6.72, save $0.75Trade accounts save 10%. Apply with your ABN
| LC | 3800kg |
| UOM | Each |
| b mm | 57 |
| d mm | 10.5 |
| e mm | 49 |
| f mm | 10.4 |
| g mm | 10.5 |
| w mm | 28 |
| Weight | 0.38kg |
| Chain Size | 7-8mm |
| Chain size mm | 7-8 |
About this product
The Beaver G70 Gold Clevis Grab Hooks with Wings 7-8mm let you shorten a lashing chain and hold the shortened leg in place while you tension the load. This size takes 7-8mm chain and carries a lashing capacity of 3800kg, making it the middle-weight option for truck and trailer tie-down work where 7mm or 8mm chain is already on the job.
Grade 70 hi-tensile through the body, with a zinc di-chromate gold finish for easy identification on site and some protection against the weather. The wings sit either side of the throat so the chain link seats square and does not twist out under load. Key dimensions are a 57mm b, 10.5mm d, 49mm e and 28mm w, and it weighs 0.38kg. Complies to AZ/NZS 4344.
Common questions
- what chain size do the Beaver G70 gold clevis grab hooks with wings 7-8mm fit
- This variant is made for 7-8mm lashing chain. Three other sizes are available in the same range if your chain is a different gauge.
- what is the lashing capacity of a 7-8mm G70 clevis grab hook
- The lashing capacity is 3800kg. It is a load restraint fitting, so use it for tie-down work rather than lifting.
- why are Beaver grab hooks gold coloured
- The gold colour comes from a zinc di-chromate finish, which makes the Grade 70 hi-tensile fittings easy to pick out on site and adds some corrosion protection.
Full specifications
| Product Code | Chain size mm | f mm | d mm | e mm | b mm | g mm | w mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
| 354006 | 6 | 9.2 | 8.5 | 46.4 | 49 | 9.2 | 22 | 2300kg | 0.24kg | Each |
| 354008 | 7-8 | 10.4 | 10.5 | 49 | 57 | 10.5 | 28 | 3800kg | 0.38kg | Each |
| 354010 | 10 | 12.4 | 12.5 | 60.5 | 66.5 | 13.5 | 39 | 6000kg | 0.5kg | Each |
| 354013 | 13 | 19.5 | 16.5 | 84 | 88 | 18 | 39 | 9000kg | 0.68kg | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
