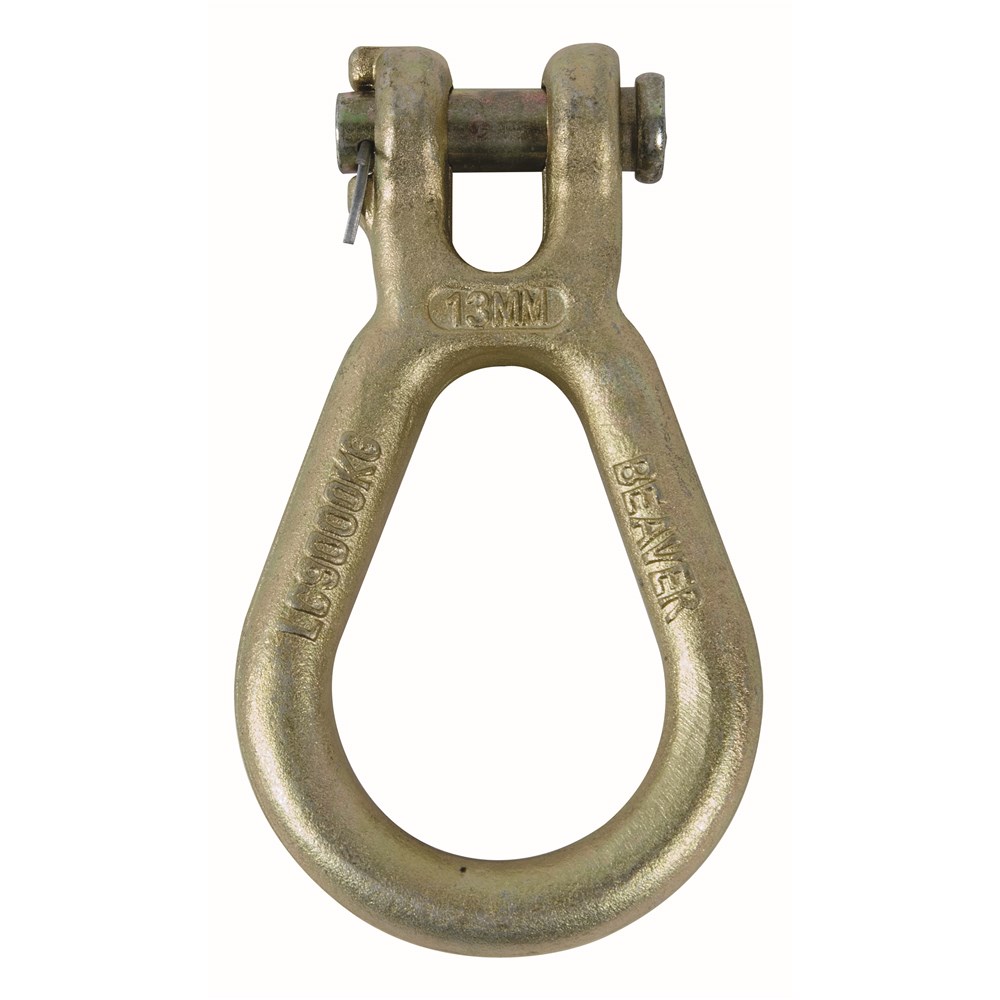

Beaver G70 Gold Clevis Lug Link 13mm
353013per Each
$37.26 inc GSTTrade $33.53, save $3.73Trade accounts save 10%. Apply with your ABN
| LC | 9000kg |
| UOM | Each |
| b mm | 100.4 |
| d mm | 16 |
| e mm | 127.2 |
| f mm | 16.6 |
| h mm | 169 |
| s mm | 18.6 |
| d2 mm | 33 |
| h2 mm | 95.5 |
| Weight | 1.5kg |
| Chain Size | 13mm |
| Chain Size mm | 13 |
About this product
The Beaver G70 Gold Clevis Lug Link 13mm is a load restraint fitting that joins 13mm lashing chain to a truck or trailer anchor point. It carries a lashing capacity of 9000kg, the heaviest in the three size range, so it suits big plant, steel and mining loads where the smaller 8mm and 10mm links run out of capacity.
Built as a grade 70 hi tensile fitting with a 16mm clevis pin and 18.6mm stock, it measures 169mm overall and weighs 1.5kg. The zinc di-chromate gold finish makes it easy to pick out from general rigging gear on the deck and gives some protection against the weather. Manufactured to AS/NZS 4344. Check the pin and body for wear, stretch or cracking before every trip.
Common questions
- what chain size does the beaver 13mm clevis lug link suit
- It is made for 13mm grade 70 lashing chain, with a 16mm clevis pin and 18.6mm stock.
- what is the lashing capacity of a g70 13mm lug link
- The lashing capacity is 9000kg. It is manufactured to AS/NZS 4344.
- why is the beaver lug link gold in colour
- The gold colour comes from a zinc di-chromate finish, which helps identify it as grade 70 load restraint gear and adds some corrosion protection.
Full specifications
| Product Code | Chain Size mm | f mm | d mm | e mm | h mm | h2 mm | b mm | s mm | d2 mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 353008 | 7-8 | 12.5 | 10 | 108.5 | 141.7 | 78 | 86.5 | 16.25 | 24 | 3800kg | 0.5kg | Each |
| 353010 | 10 | 12.5 | 12.5 | 107.25 | 141.7 | 78 | 86.5 | 16.25 | 24 | 6000kg | 0.6kg | Each |
| 353013 | 13 | 16.6 | 16 | 127.2 | 169 | 95.5 | 100.4 | 18.6 | 33 | 9000kg | 1.5kg | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
