Beaver G70 Gold Clevis Claw Hooks 10mm
352010per Each
$14.00 inc GSTTrade $12.60, save $1.40Trade accounts save 10%. Apply with your ABN
| LC | 6000kg |
| UOM | Each |
| b mm | 55 |
| d mm | 12.5 |
| e mm | 46 |
| f mm | 12.5 |
| g mm | 11.5 |
| h mm | 103 |
| w mm | 37.5 |
| Weight | 0.59kg |
| Chain Size | 10mm |
| Chain Size mm | 10 |
About this product

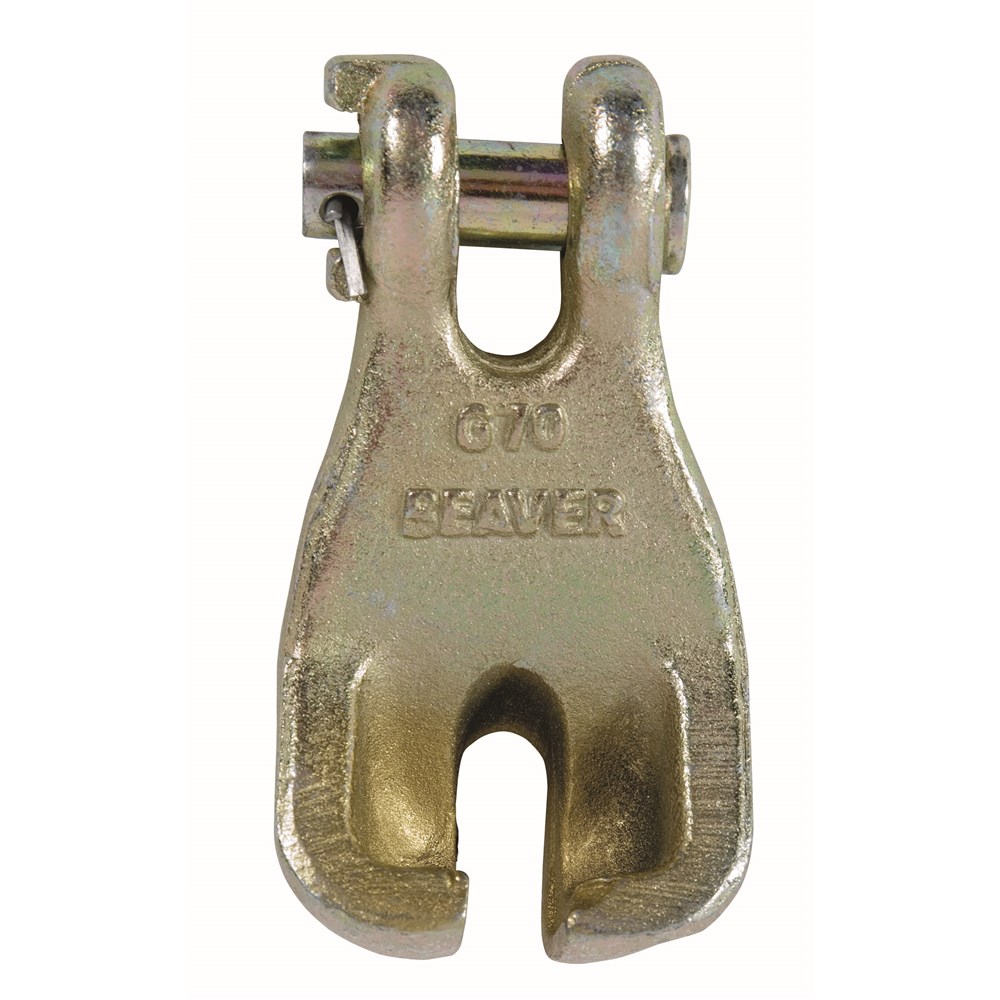

The Beaver G70 Gold Clevis Claw Hooks 10mm is a Grade 70 claw hook for shortening and anchoring 10mm lashing chain on trucks and trailers. With a lashing capacity of 6000kg, this is the heavier of the two sizes in the range, so it suits bigger plant, steel and mining loads where the smaller chain size runs out of capacity.
The clevis end pins straight onto 10mm chain, and the claw seat lets you hook back into a link to take up slack without knots or twists. Hi tensile Grade 70 construction with a zinc di-chromate gold finish for corrosion resistance and easy identification on site. It measures 103mm long and 37.5mm wide and weighs 0.59kg, so it handles well on a truck. Complies to AS/NZS 4344.
Common questions
- what is the load capacity of a 10mm G70 claw hook
- This size has a lashing capacity of 6000kg. It is rated for load restraint, not for lifting.
- what chain size does the Beaver clevis claw hook fit
- This variant is made for 10mm lashing chain, with a clevis of 12.5mm pin size and a 11.5mm gap through the fitting.
- why are G70 fittings gold
- The gold colour comes from the zinc di-chromate finish, which adds corrosion resistance and makes Grade 70 load restraint gear easy to pick out from other fittings.
Full specifications
| Product Code | Chain Size mm | f mm | d mm | e mm | h mm | g mm | b mm | w mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 352008 | 7-8 | 12.5 | 10.2 | 40 | 88 | 9.5 | 47 | 32 | 3800kg | 0.55kg | Each |
| 352010 | 10 | 12.5 | 12.5 | 46 | 103 | 11.5 | 55 | 37.5 | 6000kg | 0.59kg | Each |
