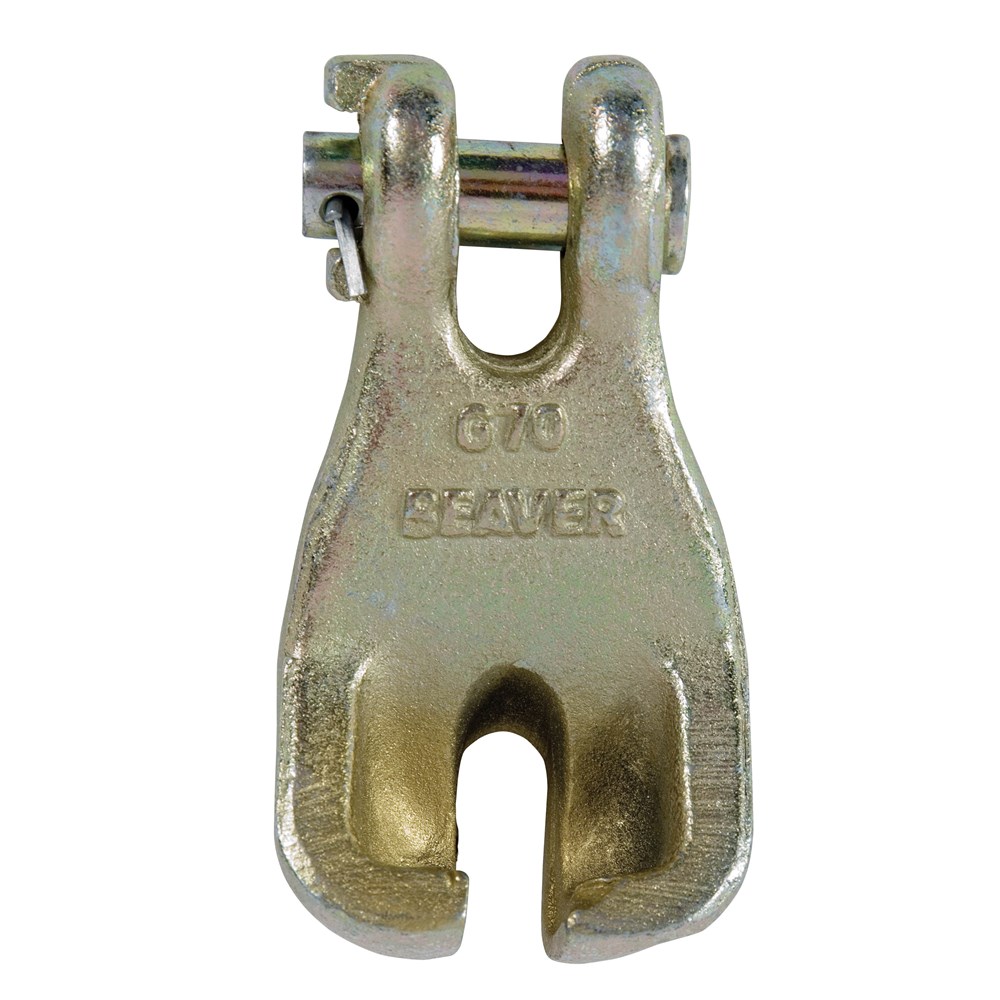

Beaver G70 Gold Clevis Claw Hooks 7-8mm
352008per Each
$23.20 inc GSTTrade $20.88, save $2.32Trade accounts save 10%. Apply with your ABN
| LC | 3800kg |
| UOM | Each |
| b mm | 47 |
| d mm | 10.2 |
| e mm | 40 |
| f mm | 12.5 |
| g mm | 9.5 |
| h mm | 88 |
| w mm | 32 |
| Weight | 0.55kg |
| Chain Size | 7-8mm |
| Chain Size mm | 7-8 |
About this product
The Beaver G70 Gold Clevis Claw Hooks 7-8mm are load restraint fittings used to shorten or hook up lashing chain when tying down freight and plant. This is the larger of the two sizes in the range, built for 7-8mm chain with a load capacity of 3800kg, so it suits heavier tie-down work on trucks and trailers headed to site.
Grade 70 hi-tensile steel with a zinc di-chromate gold finish, which makes the fitting easy to pick out from lower grade gear on the deck. It complies to AS/NZS 4344. Key dimensions are 88mm high and 32mm wide, with a 10.2mm clevis pin and a 12.5mm throat, and the hook weighs 0.55kg. Check the claw and pin for wear or spread before every load.
Common questions
- what is the load capacity of a beaver g70 claw hook 7-8mm
- This size has a load capacity of 3800kg and is made for 7-8mm lashing chain.
- what is the gold finish on g70 lashing chain fittings
- It is a zinc di-chromate coating on Grade 70 hi-tensile steel, which gives the fitting its gold colour and makes G70 gear easy to identify.
- what size chain does the beaver 7-8mm clevis claw hook fit
- It fits 7-8mm chain, with a 10.2mm clevis pin and a 12.5mm throat. The other size in the range covers smaller chain.
Full specifications
| Product Code | Chain Size mm | f mm | d mm | e mm | h mm | g mm | b mm | w mm | LC | Weight | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 352008 | 7-8 | 12.5 | 10.2 | 40 | 88 | 9.5 | 47 | 32 | 3800kg | 0.55kg | Each |
| 352010 | 10 | 12.5 | 12.5 | 46 | 103 | 11.5 | 55 | 37.5 | 6000kg | 0.59kg | Each |
