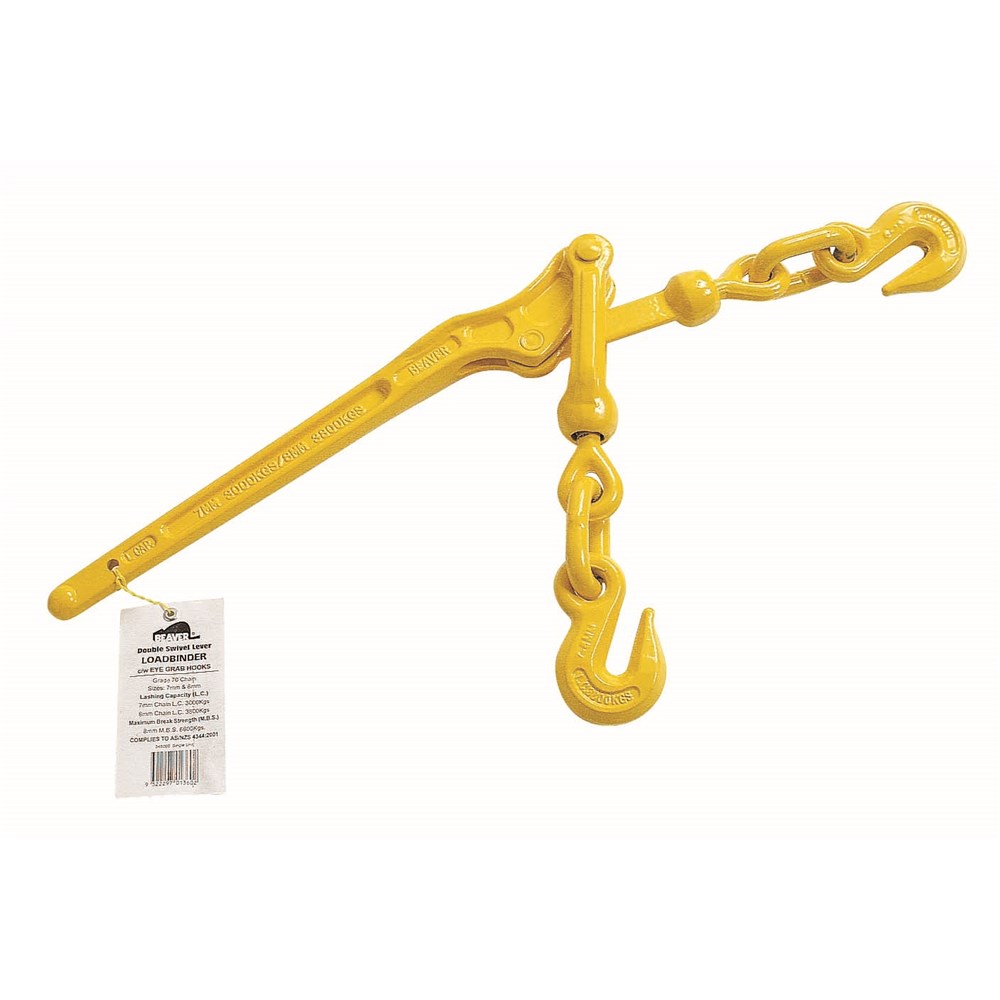

Beaver Graded 70 Double Swivel Loadbinder with Eye Grab Hooks 13mm
348013per Each
$80.06 inc GSTTrade $72.05, save $8.01Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 819 |
| b mm | 490 |
| c mm | 286 |
| d mm | 381 |
| g mm | 13.5 |
| LC (kg) | 9000 |
| e Open mm | 790 |
| f Open mm | 876 |
| Chain Size | 13mm |
| Weight (kg) | 10.5 |
| e Closed mm | 661 |
| f Closed mm | 747 |
| Chain Size and Description | 13mm c/w Winged Eye Grab Hooks |
About this product
The Beaver Graded 70 Double Swivel Loadbinder with Eye Grab Hooks 13mm is an over centre binder for tensioning 13mm transport chain on truck and trailer loads. It is the heaviest size in the range, with a lashing capacity of 9000kg and a forged Grade 70 metal body. Fitted with winged eye grab hooks on both ends, so you can grab a link anywhere along the chain without reeving through.
Closed length runs 661mm at e and 747mm at f, opening out to 790mm and 876mm, which gives you plenty of take up on a long run of chain. Overall body dimensions are 819mm by 490mm, and it weighs 10.5kg, so it is a solid unit to handle. Double swivel ends let the hooks line up with the pull instead of twisting. Made to AS/NZS 4344.
Common questions
- what chain size does the 13mm Beaver loadbinder suit
- It is built for 13mm transport chain and comes with winged eye grab hooks sized to match. Using it on other chain sizes is not what it is designed for.
- beaver double swivel loadbinder 13mm load capacity
- The lashing capacity is 9000kg. It is a forged Grade 70 over centre loadbinder made to AS/NZS 4344.
- how much does a 13mm loadbinder weigh
- This one weighs 10.5kg, with a body measuring 819mm by 490mm, so it is the heaviest of the four sizes in the range.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | d mm | b mm | a mm | f Open mm | e Open mm | c mm | g mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 345006A | 6mm c/w Winged Eye Grab Hooks | 409 | 365 | 215 | 293 | 470 | 484 | 440 | 150 | 9.5 | 2300 | 1.68 | Each |
| 348000 | 7-8mm c/w Winged Eye Grab Hooks | 558 | 503 | 287 | 383 | 600 | 662 | 607 | 216 | 11 | 3800 | 3.7 | Each |
| 348010 | 10mm c/w Winged Eye Grab Hooks | 638 | 570 | 325 | 420 | 760 | 758 | 690 | 245 | 12 | 6000 | 5.7 | Each |
| 348013 | 13mm c/w Winged Eye Grab Hooks | 747 | 661 | 381 | 490 | 819 | 876 | 790 | 286 | 13.5 | 9000 | 10.5 | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
