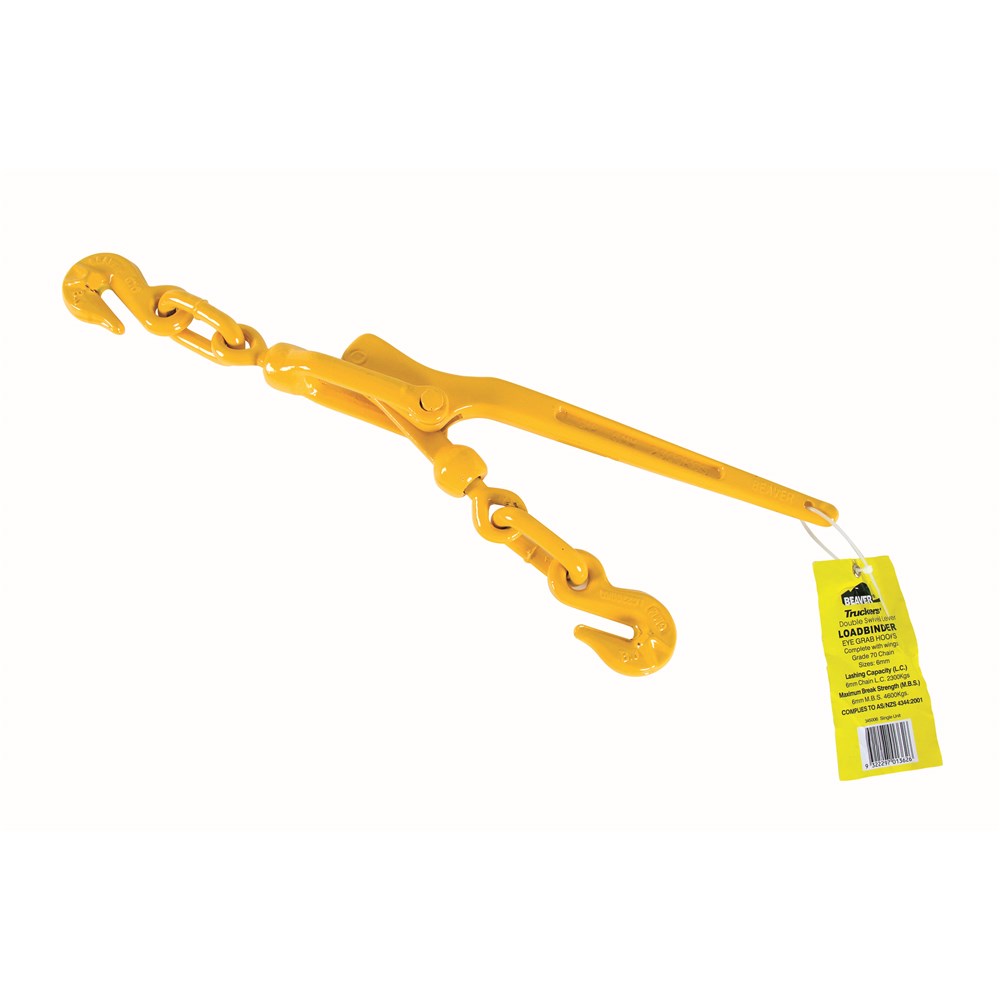

Beaver Graded 70 Double Swivel Loadbinder with Eye Grab Hooks 10mm
348010per Each
$104.60 inc GSTTrade $94.14, save $10.46Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 760 |
| b mm | 420 |
| c mm | 245 |
| d mm | 325 |
| g mm | 12 |
| LC (kg) | 6000 |
| e Open mm | 690 |
| f Open mm | 758 |
| Chain Size | 10mm |
| Weight (kg) | 5.7 |
| e Closed mm | 570 |
| f Closed mm | 638 |
| Chain Size and Description | 10mm c/w Winged Eye Grab Hooks |
About this product
The Beaver Graded 70 Double Swivel Loadbinder with Eye Grab Hooks is an over centre binder for tensioning 10mm transport chain on trucks, floats and site loads. This is the biggest pull in the range, with a load capacity of 6000kg, matched to 10mm chain and fitted with winged eye grab hooks at both ends.
Forged Grade 70 throughout and built to AS/NZS 4344. The double swivel lets both hooks line up with the chain instead of twisting it, so the load pulls straight. Handle travel runs from 690mm open to 570mm closed, giving you plenty of take up on a long run. At 5.7kg it has some heft, which is what you want when you are pulling tension by hand.
Common questions
- what chain size does the 10mm Beaver loadbinder suit
- It is made for 10mm transport chain and comes with winged eye grab hooks to suit. Load capacity is 6000kg.
- is the Beaver double swivel loadbinder Australian standard
- Yes, it is manufactured to AS/NZS 4344.
- why choose a double swivel loadbinder over a standard one
- The swivel at both ends lets the hooks align with the chain so it pulls straight instead of twisting. That keeps the tension honest on 10mm chain at the full 6000kg load capacity.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | d mm | b mm | a mm | f Open mm | e Open mm | c mm | g mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 345006A | 6mm c/w Winged Eye Grab Hooks | 409 | 365 | 215 | 293 | 470 | 484 | 440 | 150 | 9.5 | 2300 | 1.68 | Each |
| 348000 | 7-8mm c/w Winged Eye Grab Hooks | 558 | 503 | 287 | 383 | 600 | 662 | 607 | 216 | 11 | 3800 | 3.7 | Each |
| 348010 | 10mm c/w Winged Eye Grab Hooks | 638 | 570 | 325 | 420 | 760 | 758 | 690 | 245 | 12 | 6000 | 5.7 | Each |
| 348013 | 13mm c/w Winged Eye Grab Hooks | 747 | 661 | 381 | 490 | 819 | 876 | 790 | 286 | 13.5 | 9000 | 10.5 | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
