Beaver G70 Web-Dog Loadbinder 3.8t
348000WFper Each
$102.75 inc GSTTrade $92.48, save $10.27Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| A mm | 150 |
| B mm | 110 |
| C mm | 120 |
| D mm | 75 |
| E mm | 335 |
| F mm | 145 |
| LC (kg) | 3800 |
| Length m | 1 |
| Weight (kg) | 3.8 |
| Load Capacity | 3.8t |
| Chain Size and Description | 50mm Ratchet assembly fitted with 8mm Grab Hooks* & 1m of 50mm heavy duty webbing |
About this product

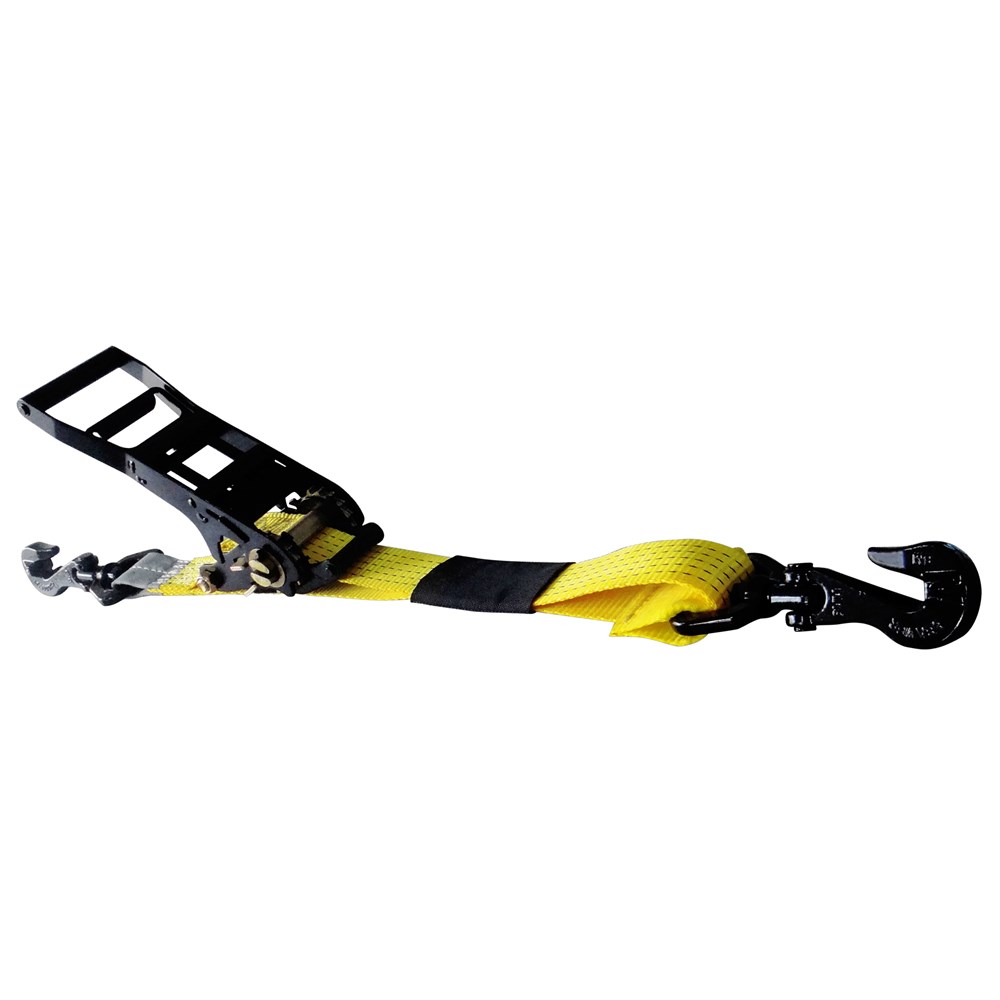

The Beaver G70 Web-Dog Loadbinder 3.8t is a ratchet-style load binder that tensions and holds a load down on a truck or trailer. It pairs a 50mm ratchet assembly with 1m of 50mm heavy duty webbing and 8mm grab hooks at each end, so you can hook straight into Grade 70 transport chain and pull the slack out by hand. Load capacity is 3800kg, or 3.8t.
Handy where you want webbing in the run instead of all steel, and the 3.8t LC covers most general freight and plant tie-down work. The assembly weighs 3.8kg and measures 335mm through the body, with a 145mm handle. Built from metal and fabric. It is for lashing only and is not approved for lifting. Complies to AS/NZS 4344 and AS/NZS 4380. Check the webbing for cuts, abrasion and UV damage before every load, and keep the ratchet clean and moving freely.
Common questions
- what is the load capacity of the Beaver G70 web dog 3.8t
- The lashing capacity is 3800kg, or 3.8t. It is rated for lashing only and is not approved for lifting.
- what size chain does the Beaver web dog loadbinder suit
- It comes fitted with 8mm grab hooks, so it suits 8mm Grade 70 transport chain.
- web dog vs chain loadbinder which is better
- The web dog uses a 50mm ratchet with 1m of 50mm heavy duty webbing instead of a full steel run, which makes it lighter to handle at 3.8kg and easier to tension by hand.
Full specifications
| Product Code | Chain Size and Description | A mm | B mm | C mm | D mm | E mm | F mm | Length m | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 348000WF | 50mm Ratchet assembly fitted with 8mm Grab Hooks* & 1m of 50mm heavy duty webbing | 150 | 110 | 120 | 75 | 335 | 145 | 1 | 3800 | 3.8 | Each |
