Beaver G70 Double Swivel Loadbinder with Eye Claw Hooks 7-8mm
348000ECper Each
$61.08 inc GSTTrade $54.97, save $6.11Trade accounts save 10%. Apply with your ABN

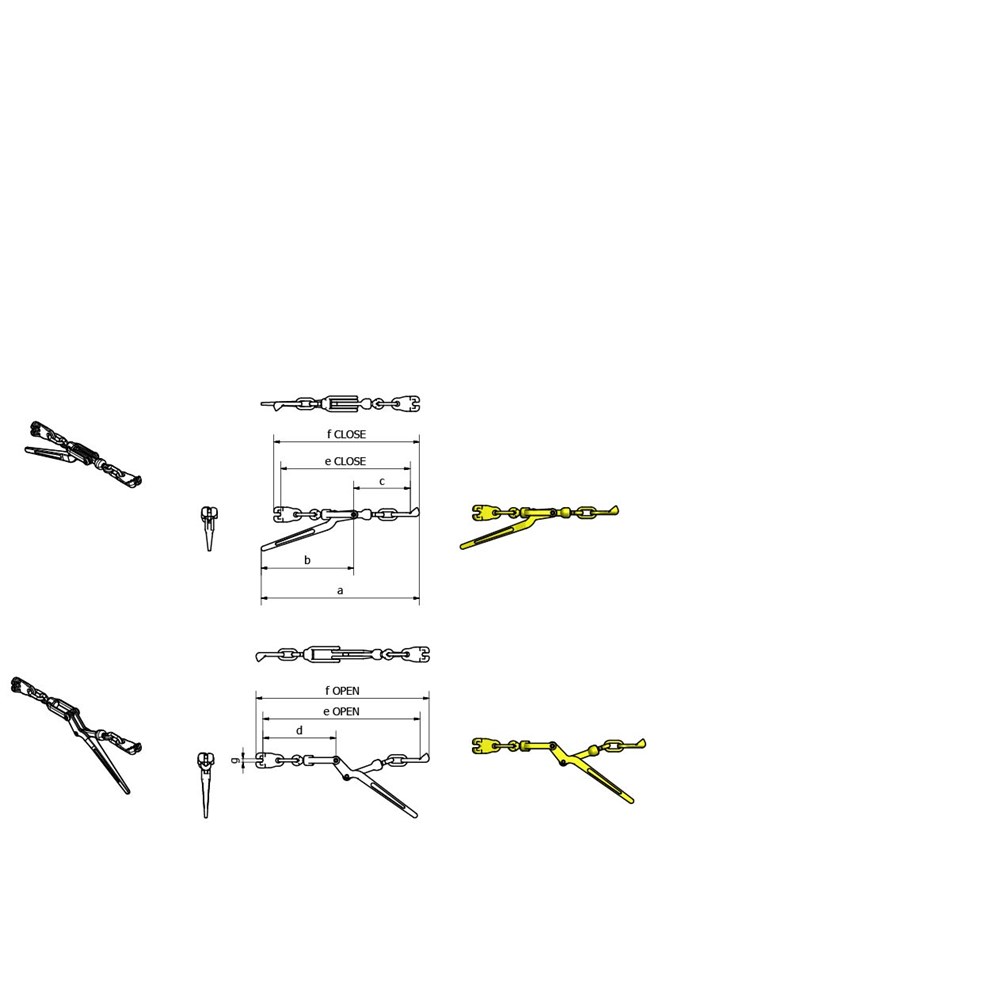

| UOM | Each |
| a mm | 601 |
| b mm | 385 |
| c mm | 208 |
| d mm | 280 |
| g mm | 9.5 |
| LC (kg) | 3800 |
| e Open mm | 593 |
| f Open mm | 633 |
| Chain Size | 7-8mm |
| Weight (kg) | 3.9 |
| e Closed mm | 489 |
| f Closed mm | 529 |
| Chain Size and Description | 7-8mm c/w Eye Claw Hooks |
About this product
The Beaver G70 Double Swivel Loadbinder with Eye Claw Hooks is a turnbuckle style tensioner for pulling down transport chain on trucks and trailers. This one is set up for 7-8mm chain and carries a lashing capacity of 3800kg, which covers most general freight, plant and steel loads moving on a tray. Both ends swivel, so the eye claw hooks line up with the chain instead of fighting it. Winged grab hooks seat the link and hold it under tension.
Body dimensions run 601mm overall with a 385mm frame, and the take-up goes from 489mm closed to 593mm open at the eye. It weighs 3.9kg, so it is easy enough to handle over the side of a deck. The yellow painted finish makes it quick to spot in a toolbox or on the ground. Built from metal and complies to AS/NZS 4344.
Common questions
- what chain size does the beaver 348000EC loadbinder suit
- It is made for 7-8mm chain and comes fitted with eye claw hooks.
- what is the load capacity of the beaver g70 double swivel loadbinder
- The lashing capacity is 3800kg. It is a Grade 70 load restraint binder, not for lifting.
- does this loadbinder meet australian standards
- Yes, the supplier states it complies to AS/NZS 4344.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | d mm | b mm | a mm | f Open mm | e Open mm | c mm | g mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 348000EC | 7-8mm c/w Eye Claw Hooks | 529 | 489 | 280 | 385 | 601 | 633 | 593 | 208 | 9.5 | 3800 | 3.9 | Each |
