Beaver Graded 70 Double Swivel Loadbinder with Eye Grab Hooks 8mm
348000per Each
$62.35 inc GSTTrade $56.12, save $6.23Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 600 |
| b mm | 383 |
| c mm | 216 |
| d mm | 287 |
| g mm | 11 |
| LC (kg) | 3800 |
| e Open mm | 607 |
| f Open mm | 662 |
| Chain Size | 8mm |
| Weight (kg) | 3.7 |
| e Closed mm | 503 |
| f Closed mm | 558 |
| Chain Size and Description | 7-8mm c/w Winged Eye Grab Hooks |
About this product

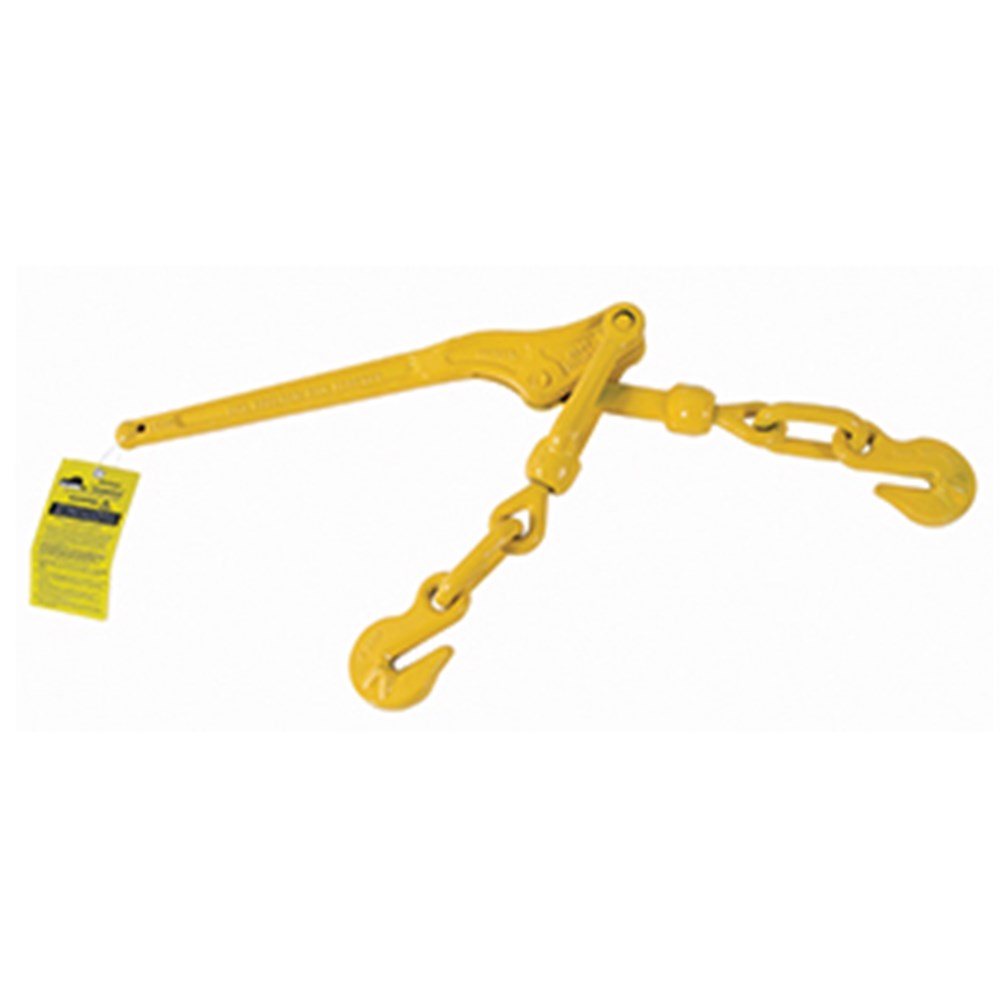

The Beaver Graded 70 Double Swivel Loadbinder with Eye Grab Hooks 8mm is an over centre binder for tensioning transport chain on truck and trailer loads. This size runs 7-8mm chain and carries a lashing capacity of 3800kg, so it pairs with the heavier chain most float and tipper work calls for. Forged Grade 70 construction throughout, with winged eye grab hooks fitted at both ends.
The double swivel ends let the hooks line up with the chain as you take up tension, which keeps the handle pulling straight. Handle length is 600mm and the unit weighs 3.7kg. Take up range sits between 503mm and 607mm at the e dimension, and 558mm to 662mm at f, giving you a good spread of adjustment. Made to AS/NZS 4344. Check the hooks and handle for bend or spread before every trip.
Common questions
- what is the load capacity of an 8mm loadbinder
- This 8mm Beaver Graded 70 double swivel loadbinder has a lashing capacity of 3800kg. It suits 7-8mm transport chain.
- is the beaver graded 70 loadbinder australian standard
- Yes, it is made to AS/NZS 4344.
- what does double swivel mean on a loadbinder
- Both ends swivel, so the winged eye grab hooks can rotate and align with the chain as tension comes on rather than twisting the binder body.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | d mm | b mm | a mm | f Open mm | e Open mm | c mm | g mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 345006A | 6mm c/w Winged Eye Grab Hooks | 409 | 365 | 215 | 293 | 470 | 484 | 440 | 150 | 9.5 | 2300 | 1.68 | Each |
| 348000 | 7-8mm c/w Winged Eye Grab Hooks | 558 | 503 | 287 | 383 | 600 | 662 | 607 | 216 | 11 | 3800 | 3.7 | Each |
| 348010 | 10mm c/w Winged Eye Grab Hooks | 638 | 570 | 325 | 420 | 760 | 758 | 690 | 245 | 12 | 6000 | 5.7 | Each |
| 348013 | 13mm c/w Winged Eye Grab Hooks | 747 | 661 | 381 | 490 | 819 | 876 | 790 | 286 | 13.5 | 9000 | 10.5 | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
