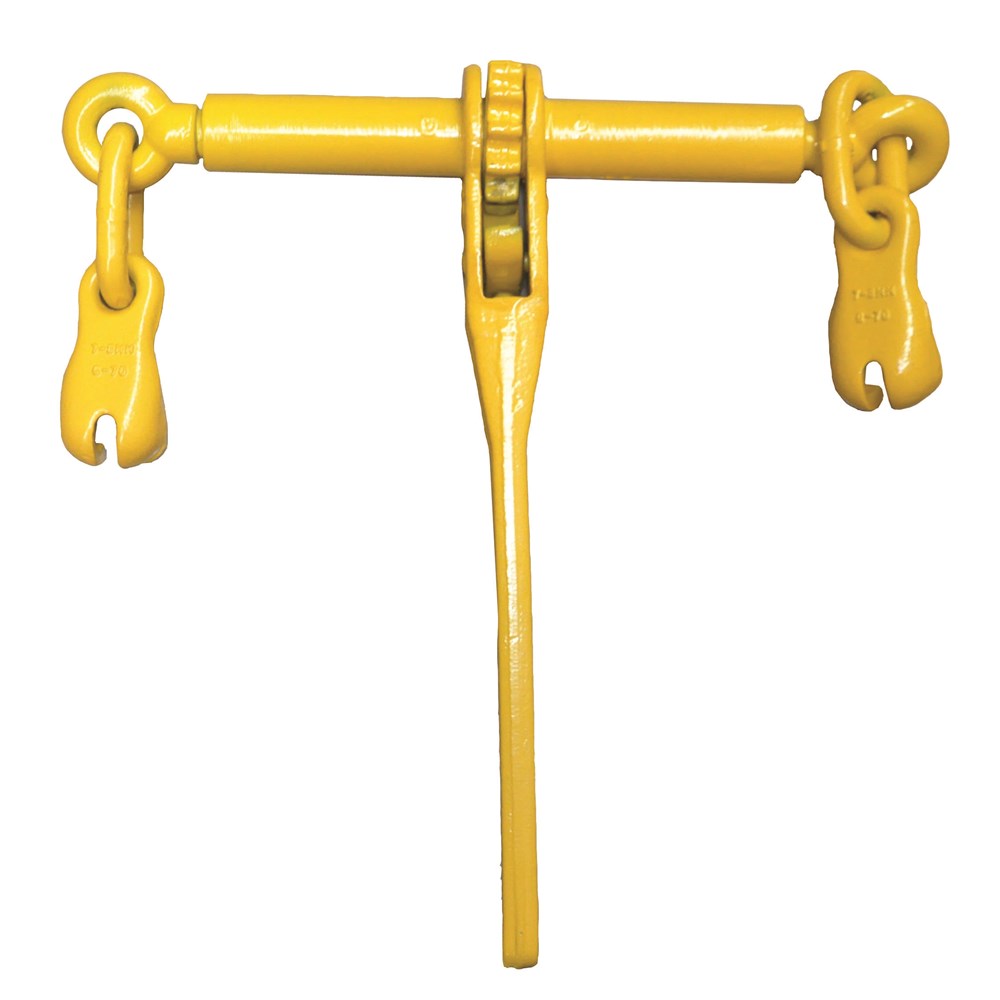

Beaver G70 Ratched-Type Loadbinder with Eye Claw Hooks 10mm
344110per Each
$89.31 inc GSTTrade $80.38, save $8.93Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 355 |
| b mm | 32.5 |
| c mm | 65 |
| d mm | 11.5 |
| LC (kg) | 6000 |
| e Open mm | 809 |
| f Open mm | 877 |
| Chain Size | 10mm |
| Weight (kg) | 5.3 |
| e Closed mm | 644 |
| f Closed mm | 712 |
| Chain Size and Description | 10mm c/w eye claw hooks |
About this product
The Beaver G70 Ratchet-Type Loadbinder with Eye Claw Hooks in 10mm is the bigger of the two sizes in the range, built to tension 10mm Grade 70 transport chain with a lashing capacity of 6000kg. The ratchet action lets you wind the chain up under control rather than throwing a lever, so you keep your hands clear and your footing steady. Eye claw hooks on both ends sit into the chain links without fuss.
Handle length is 355mm, and the binder works between 644mm closed and 809mm open at the e dimension, 712mm to 877mm at f. Yellow painted finish over metal construction, at 5.3kg. Complies to AS/NZS 4344. If you are running 8mm chain, step down to the smaller size in the range instead.
Common questions
- what chain size does the beaver 10mm loadbinder suit
- It is made for 10mm chain and comes fitted with eye claw hooks to match. The range also includes a smaller size for lighter chain.
- what is the lashing capacity of the beaver g70 ratchet loadbinder
- This 10mm version has a lashing capacity of 6000kg. It complies to AS/NZS 4344.
- ratchet loadbinder vs lever loadbinder which is safer
- A ratchet type like this one is wound up gradually, so there is no stored energy in a long lever handle snapping back at you. It also gives you finer control over chain tension.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | d mm | b mm | a mm | f Open mm | e Open mm | c mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 344108 | 7-8mm c/w eye claw hooks | 667 | 609 | 9.5 | 32.5 | 355 | 831 | 773 | 65 | 3800 | 4.9 | Each |
| 344110 | 10mm c/w eye claw hooks | 712 | 644 | 11.5 | 32.5 | 355 | 877 | 809 | 65 | 6000 | 5.3 | Each |
Questions about this equipment? Send us a message and we’ll check it against the job.
