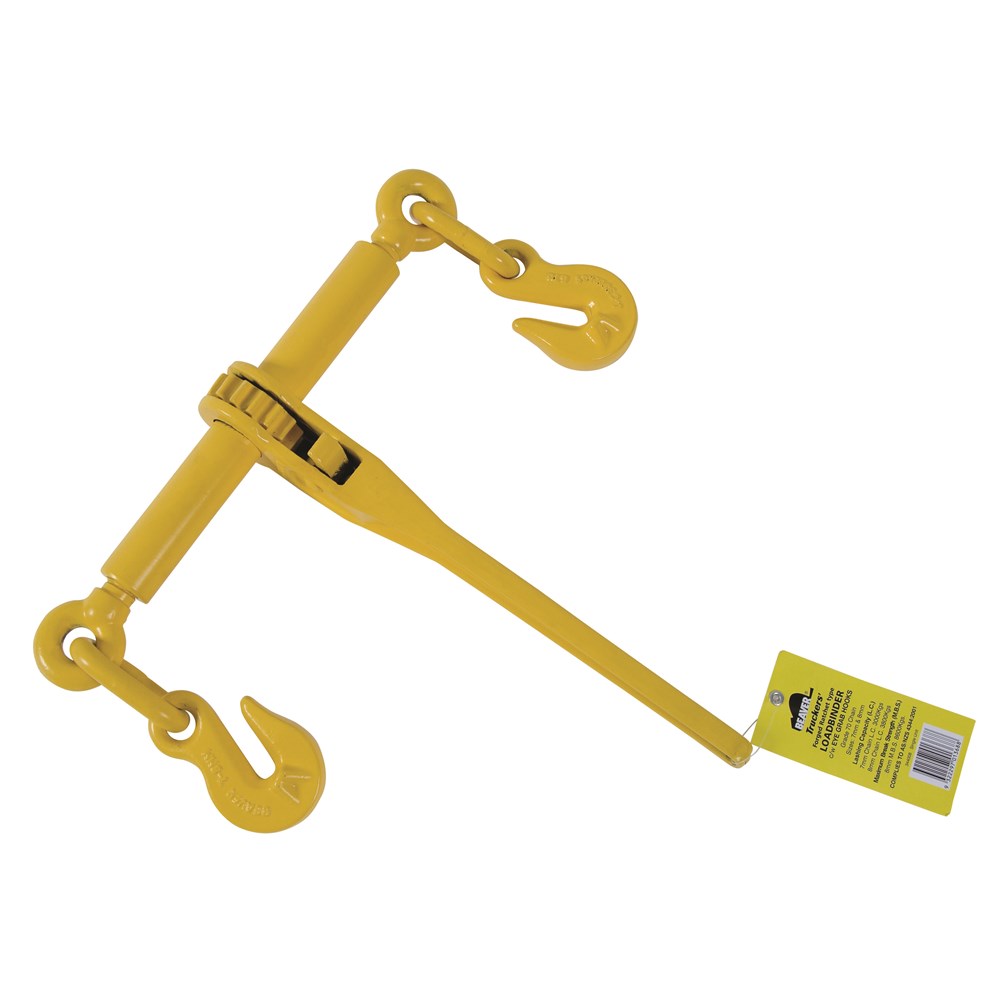

Beaver G70 Ratched-Type Loadbinder with Eye Grab Hooks 13mm
344013per Each
$114.52 inc GSTTrade $103.07, save $11.45Trade accounts save 10%. Apply with your ABN
| UOM | Each |
| a mm | 350 |
| b mm | 32.5 |
| c mm | 65 |
| g mm | 15 |
| LC (kg) | 9000 |
| e Open mm | 860 |
| f Open mm | 946 |
| Chain Size | 13mm |
| Weight (kg) | 7.18 |
| e Closed mm | 690 |
| f Closed mm | 776 |
| Chain Size and Description | 13mm c/w winged eye grab hooks |
About this product
The Beaver G70 Ratchet-Type Loadbinder with Eye Grab Hooks in 13mm is the biggest hitter in the range, built to tension 13mm Grade 70 load chain on heavy transport work. Lashing capacity is 9000kg, and the winged eye grab hooks let you cradle the chain properly so you get the full rated capacity out of the assembly. At 7.18kg it has some heft to it, which is what you would expect from a binder handling chain this size.
The ratchet handle does the hard work, so tensioning a heavy load is a steady pull rather than a wrestle. Take-up runs from 690mm closed to 860mm open at the e dimension, 776mm to 946mm at f, with a 350mm body. The yellow painted finish makes it easy to spot in a gear bin or on a deck. Complies to AS/NZS 4344.
Common questions
- what chain size does the 13mm Beaver loadbinder suit
- It is made for 13mm Grade 70 load chain and comes fitted with winged eye grab hooks to suit.
- what is the lashing capacity of a 13mm G70 ratchet loadbinder
- This one has a lashing capacity of 9000kg, the highest in the Beaver ratchet-type loadbinder range.
- why winged grab hooks instead of standard grab hooks
- The wings support the chain link fully so the assembly can achieve its full lashing capacity rather than being derated.
- how much does the 13mm Beaver ratchet loadbinder weigh
- It weighs 7.18kg, which is in line with the 13mm chain size it is built to tension.
Full specifications
| Product Code | Chain Size and Description | f Closed mm | e Closed mm | g mm | b mm | a mm | f Open mm | e Open mm | c mm | LC (kg) | Weight (kg) | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 344006 | 6mm c/w winged eye grab hooks | 459 | 415 | 9.5 | 21 | 205 | 572 | 528 | 42 | 2300 | 1.69 | Each |
| 344008 | 7-8 c/w winged eye grab hooks | 638 | 583 | 11 | 32.5 | 350 | 799 | 744 | 65 | 3800 | 4.7 | Each |
| 344010 | 10mm c/w winged eye grab hooks | 671 | 603 | 12 | 32.5 | 350 | 836 | 768 | 65 | 6000 | 5.1 | Each |
| 344013 | 13mm c/w winged eye grab hooks | 776 | 690 | 15 | 32.5 | 350 | 946 | 860 | 65 | 9000 | 7.18 | Each |
